Dry Graphene Transfer from Metal Foils
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 27, 2012
app pub date -
Mar 22, 2012
filing date -
Mar 22, 2011
priority date (Note) -
Published
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

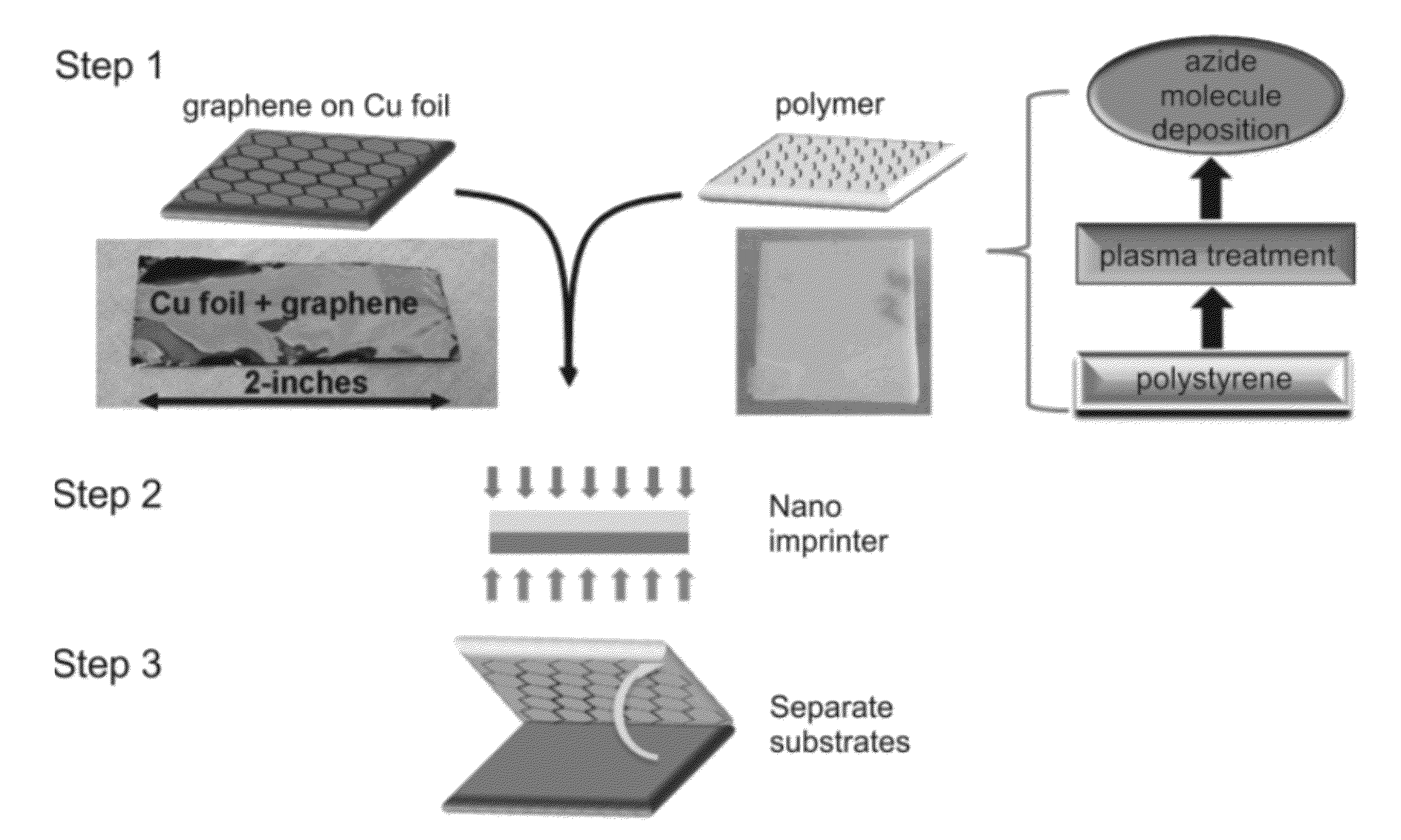

A method for dry graphene transfer comprising growing graphene on a growth substrate, chemically modifying a transfer substrate to enhance its adhesion to graphene, contacting the graphene on the growth substrate with the transfer substrate and transfer printing; and separating the transfer substrate with attached graphene from the growth substrate. The growth substrate may be copper foil. The transfer substrate may be a polymer, such as polystyrene or polyethylene, or an inorganic substrate. Also disclosed is the related composite material made by this process.
First Claim
Other Claims data not available
