STEERING WHEEL
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 27, 2012
app pub date -
Oct 25, 2010
filing date -
Dec 10, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

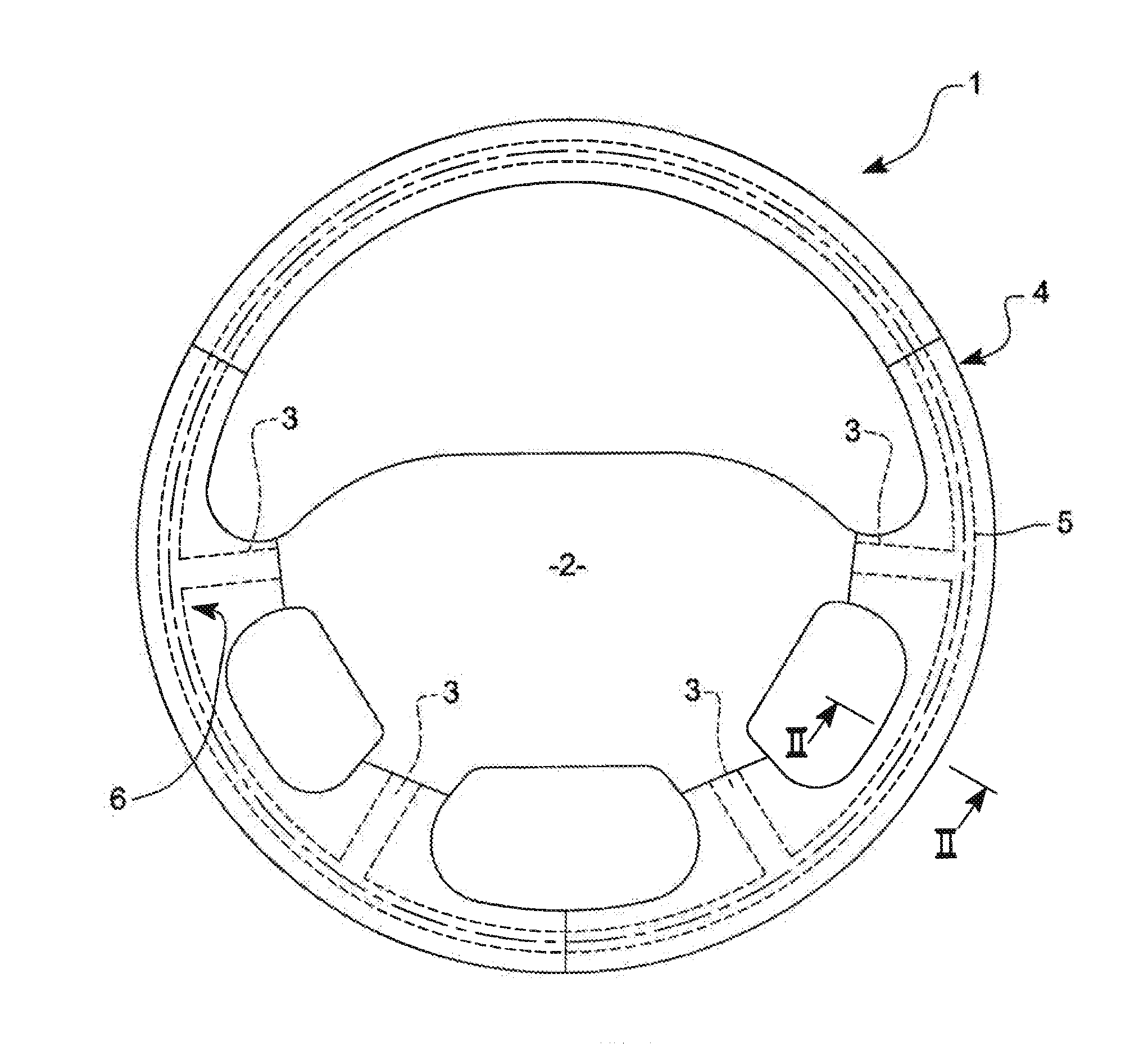

A steering wheel has a gripping portion including an armature substantially encapsulated by a cover, and an outer skin provided over the cover. The outer skin comprises a layer of fabric material defining first and second opposed surfaces. The first surface of the fabric material has a polymeric coating. The first surface is attached to the outermost surface of the cover and the second surface defines a peripheral surface of the gripping portion. Preferably, the second surface of the fabric layer is substantially uncoated. In preferred arrangements, the second surface of the fabric layer has a surface relief pattern substantially defined by a weave of the fabric and thus defines a peripheral surface pattern.
First Claim
Other Claims data not available
