SPD FILMS FORMED WITH CONDUCTIVE POLYMER-COATED SUBSTRATES
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 20, 2012
app pub date -
May 4, 2012
filing date -
May 4, 2012
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

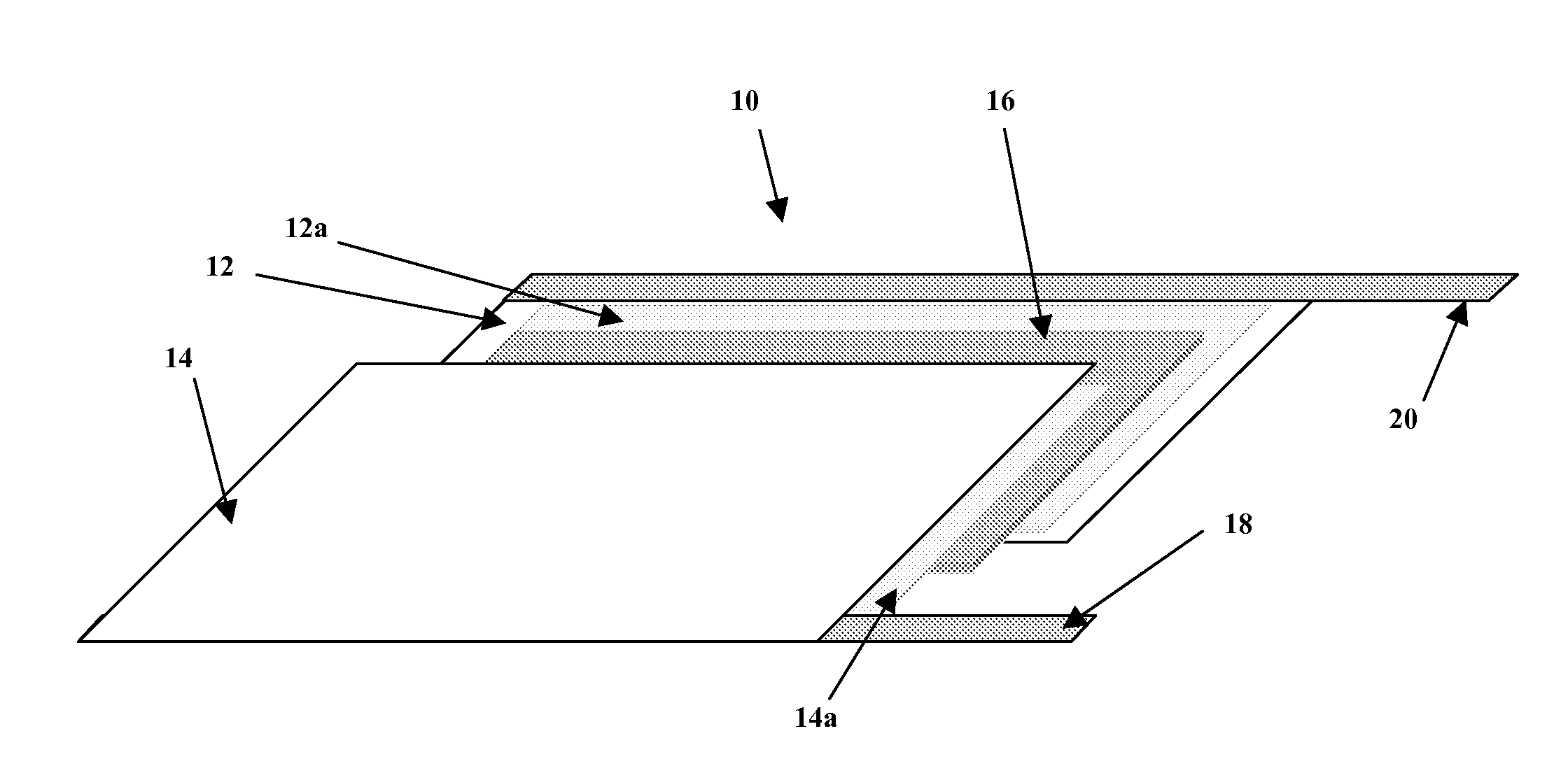

A suspended particle device (SPD) film or laminate thereof. The film includes substrates coated on their inner surface with a polythiophene-based conductive polymer serving as electrode means. The polymer may be applied in the form of an aqueous composition also comprising solvent(s) and binder(s). A preferred polymer is a polyethylene dioxythiophene (PEDT) polymer. The polymer may be doped with polystyrene sulfonate. The polymer may be connected to a conductive material that extends beyond an outer boundary of the film to connect with a voltage source. Adhesive strength between the cured emulsion and the polymer is at least 1.46 N/25 mm. A further aspect constitutes a method for increasing adhesion between a cured suspended particle device emulsion and electrode means in a light valve film. The method comprises applying the polymer on an inner surface of the substrates constituting the film to serve as the electrode means.
First Claim
Other Claims data not available
