Energetic Adhesive for Venting Cookoff
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 13, 2012
app pub date -
Mar 8, 2012
filing date -
Mar 8, 2011
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

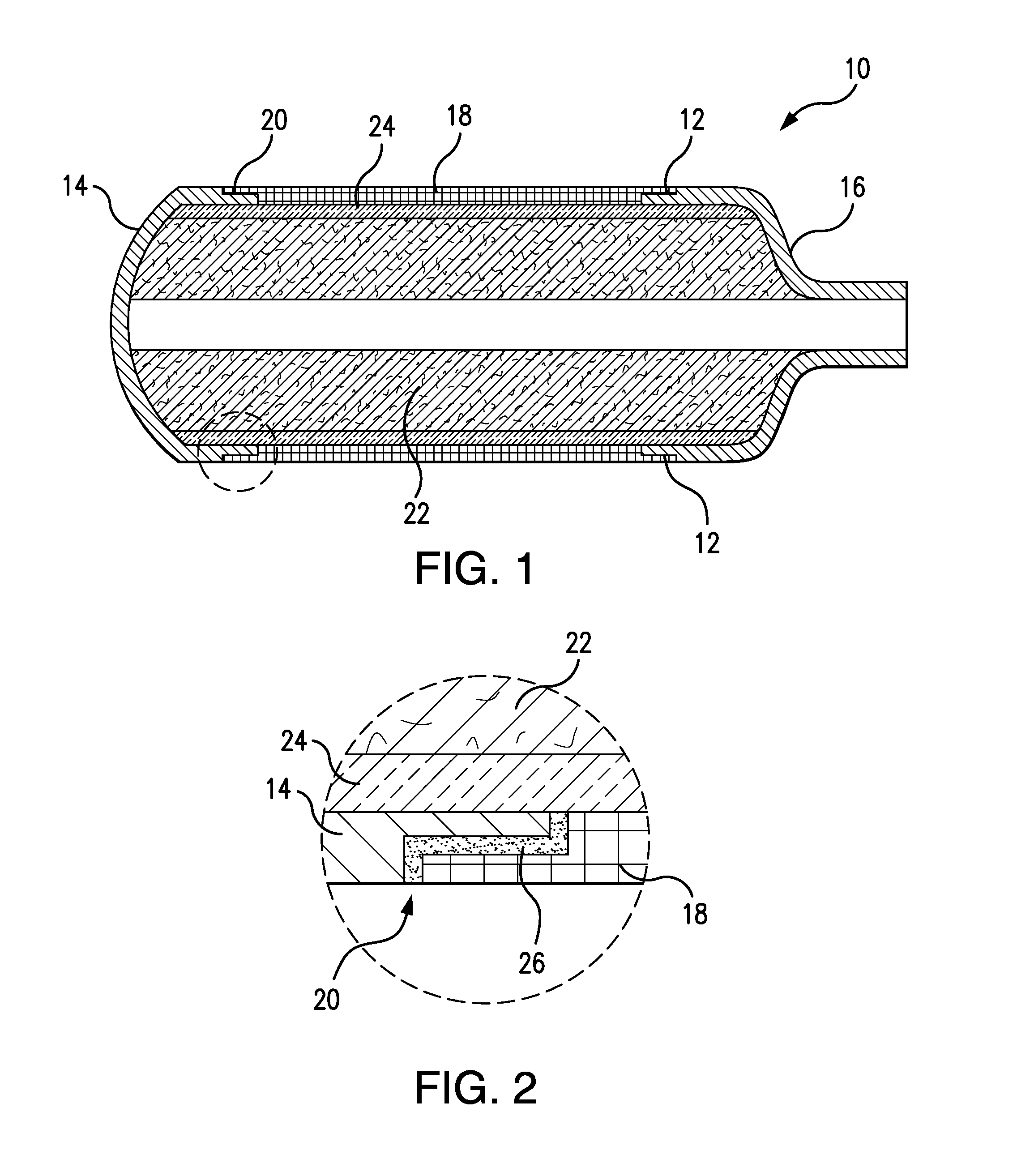

A polymer adhesive includes a polymeric binder, optional reinforcing fibers dispersed through the polymer binder and solids dispersed in the polymeric binder. The solids are effective to cause decomposition of the polymer adhesive at a temperature between 200° F. and 500° F. with a generation of gaseous products at a predetermined temperature. One suitable composition includes siloxirane, graphite, glass beads, potassium nitrate, silver nitrate and lactose and decomposes at a temperature of about 318° F. The polymer adhesive may be used in the assembly of a housing for rocket motor or a warhead. Decomposition of the polymer adhesive when the housing is exposed to sufficient external heat to cause a rocket propellant or warhead explosive to decompose, referred to as cook-off, enables venting of the rocket propellant or warhead without uncontrolled destructive rupture of the housing.
First Claim
Other Claims data not available
