INTERNAL COMBUSTION ENGINE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 13, 2012
app pub date -
Feb 28, 2012
filing date -
Mar 8, 2011
priority date (Note) -
Abandoned
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

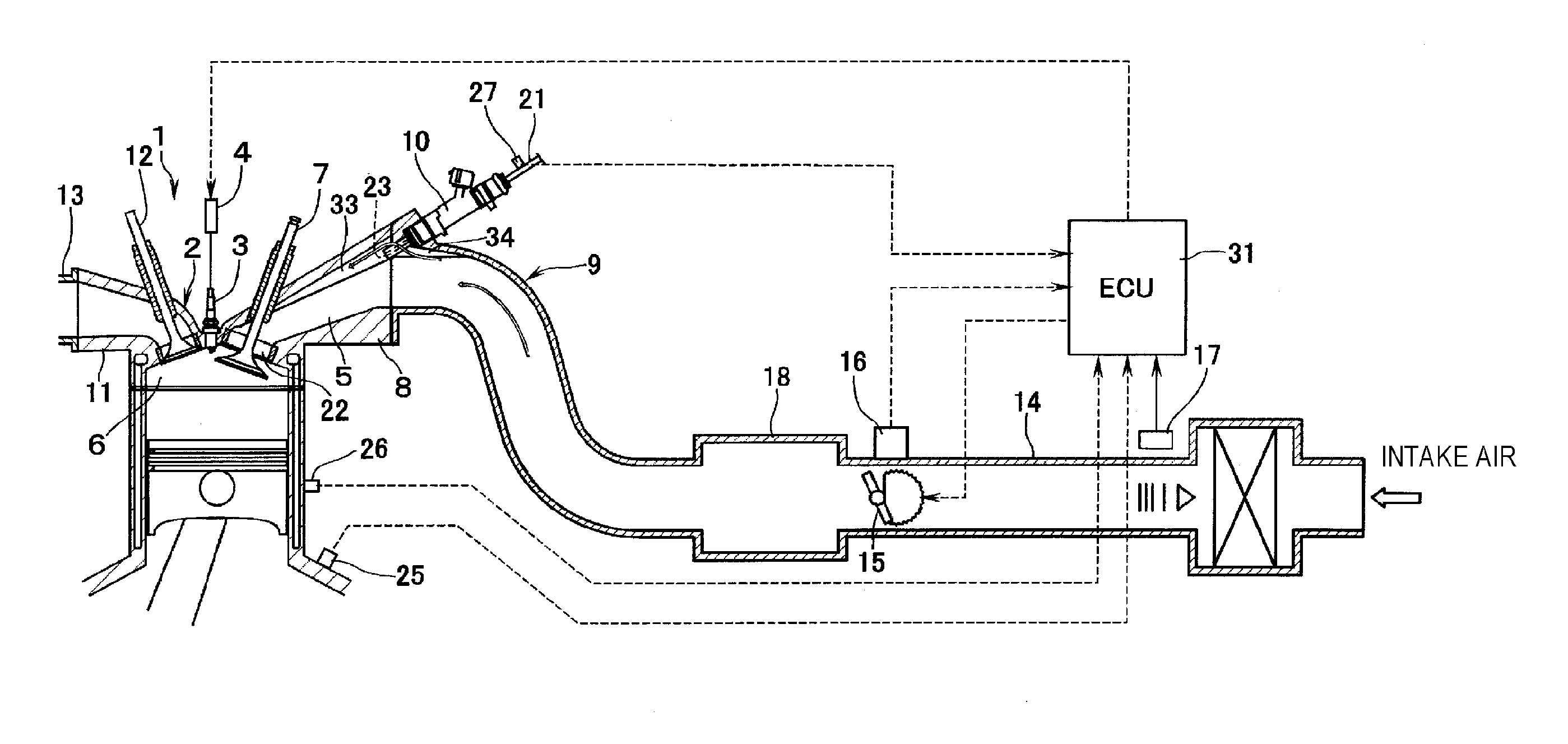

A fuel injection unit of an internal combustion engine includes at least an injector, an inlet opening, and an intake stroke injection device. A controller causes the intake stroke injection device to cause the injector to inject fuel in an intake stroke so that the fuel is introduced into an interior of a cylinder from the inlet opening. The fuel is injected from the injector into a range, which spreads in a width of an inside of the inlet opening when viewed from above of the cylinder, and which spreads in a width defined in a side of a center of the cylinder from a valve shaft in a state where the inlet valve is in a maximum lift-up level within the inside of the inlet opening when viewed from a lateral of the cylinder.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
MITSUBISHI JIDOSHA KOGYO KABUSHIKI KAISHA | 33-8 SHIBA 5-CHOME MINATO-KU TOKYO 108-8410 |
International Classification(s)

- 2012 Application Filing Year
- F02M Class
- 1020 Applications Filed
- 873 Patents Issued To-Date
- 85.59 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Nakane, Kazuyoshi | Okazaki-shi, JP | 16 | 161 |
# of filed Patents : 16 Total Citations : 161 | |||
Sato, Kimihiko | Okazaki-shi, JP | 59 | 653 |
# of filed Patents : 59 Total Citations : 653 | |||
TANAKA, Dai | Okazaki-shi, JP | 29 | 127 |
# of filed Patents : 29 Total Citations : 127 | |||
Yamaguchi, Kyohei | Nagoya-shi, JP | 26 | 92 |
# of filed Patents : 26 Total Citations : 92 |
