METHOD OF UPGRADING SEISMIC PERFORMANCE OF EXISTING SPILLWAY PIERS ON DAMS AND COUPLED EARTHQUAKE-RESISTANT STRUCTURE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 13, 2012
app pub date -
Nov 12, 2010
filing date -
Nov 12, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

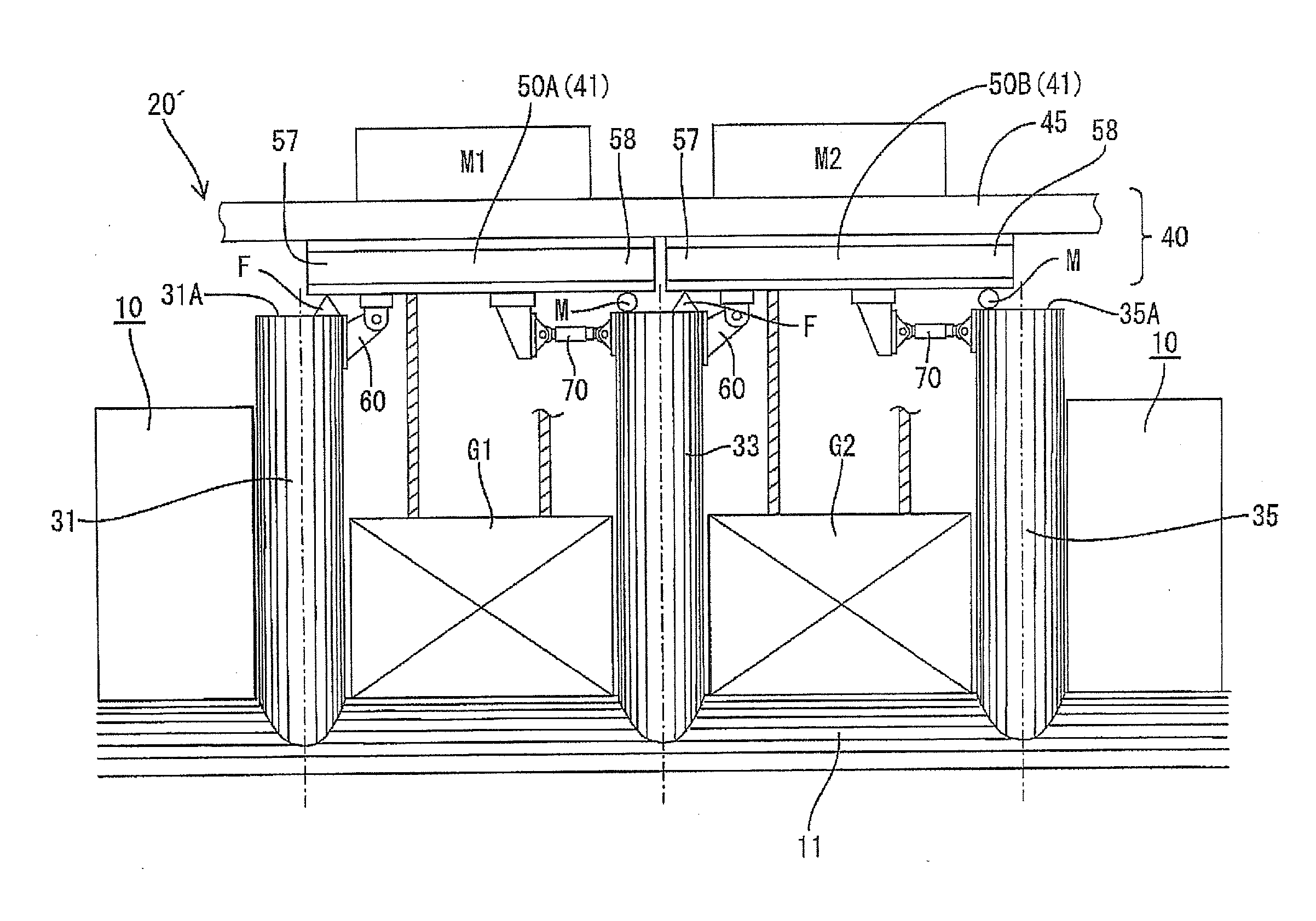

A method of improving earthquake resistance of existing spillway piers provided in a dam. The method includes a following step. End portions of a main beam and top portions of existing spillway piers are connected to each other with a high damping device having a history damping property with high primary rigidity. The high damping device has a yield displacement amount in seismic velocity smaller than a tolerance of a displacement amount of the existing spillway piers. The high damping device has a yield load value in seismic velocity greater than a maximum seismic force generated therein in a bridge-axis direction due to a large-scale earthquake.
First Claim
Other Claims data not available
