REAL TIME SIMULATING METHOD AND SYSTEM USING A SEQUENCE DIAGRAM
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
May 1, 2012
filing date -
Feb 13, 2006
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

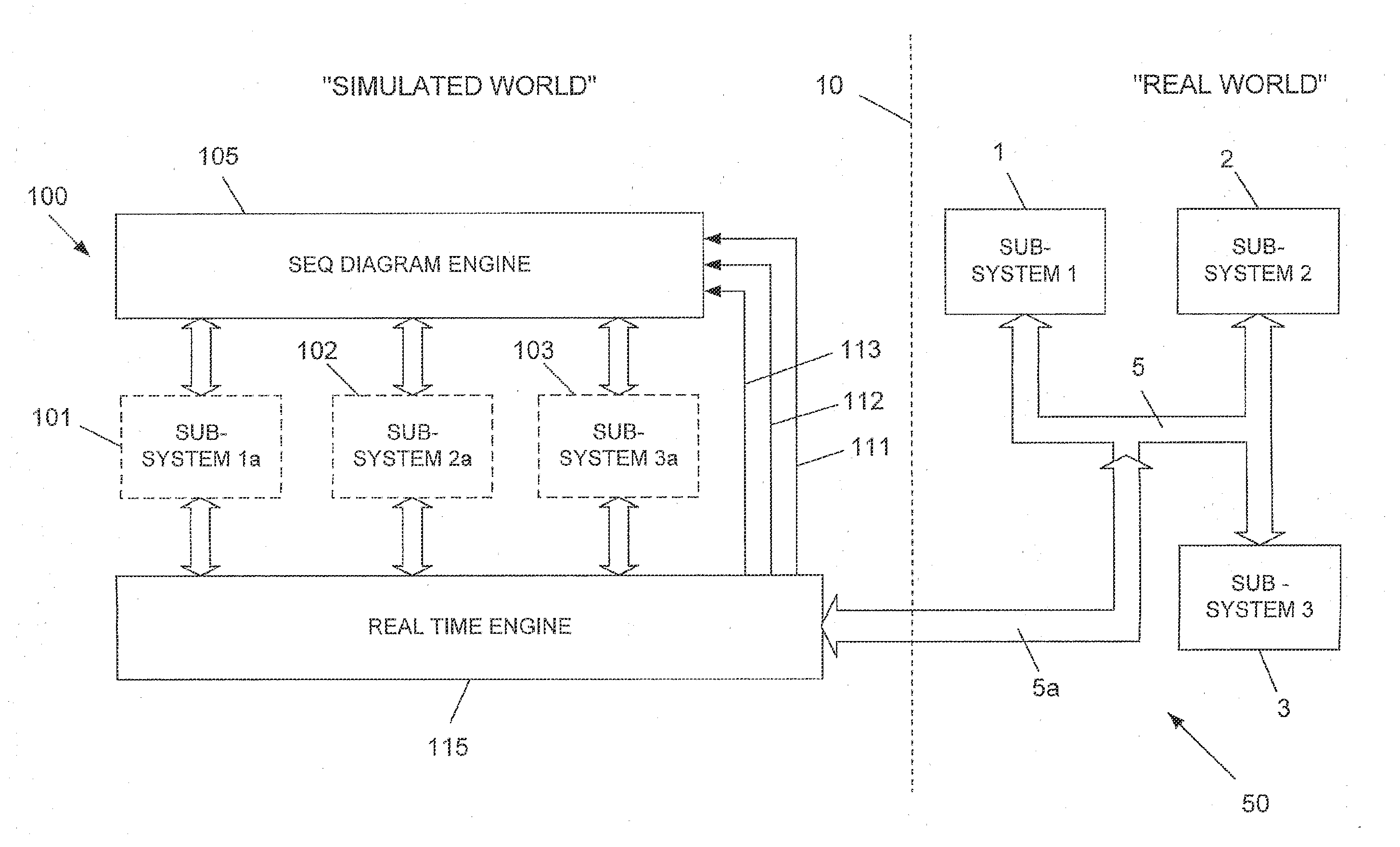

System for simulating sub-systems of a tested system includes: (a) a sequence diagram storage defining the intercommunication of messages between various sub-systems of a real system; (b) an indicator for the sequence diagram those missing sub-systems, which have to be simulated; (c) a receiver within the sequence diagram for receiving activation signal for the sequence diagram, and for maintaining only those messages relating to missing sub-systems. The system also includes (d) one or more simulated sub-system units, each containing a domain of predefined output and input messages; and (e) a real time engine for activating said sequence diagram, receiving messages relating to missing sub-systems from the simulated sub-systems units, introducing in real time the received messages on a bus leading to the real sub-systems, and receiving messages issued by the real sub-systems and conveying them in real time to the simulated sub-system units.
