MOLTEN METAL DISCHARGE NOZZLE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 30, 2012
app pub date -
Jun 2, 2010
filing date -
Sep 16, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

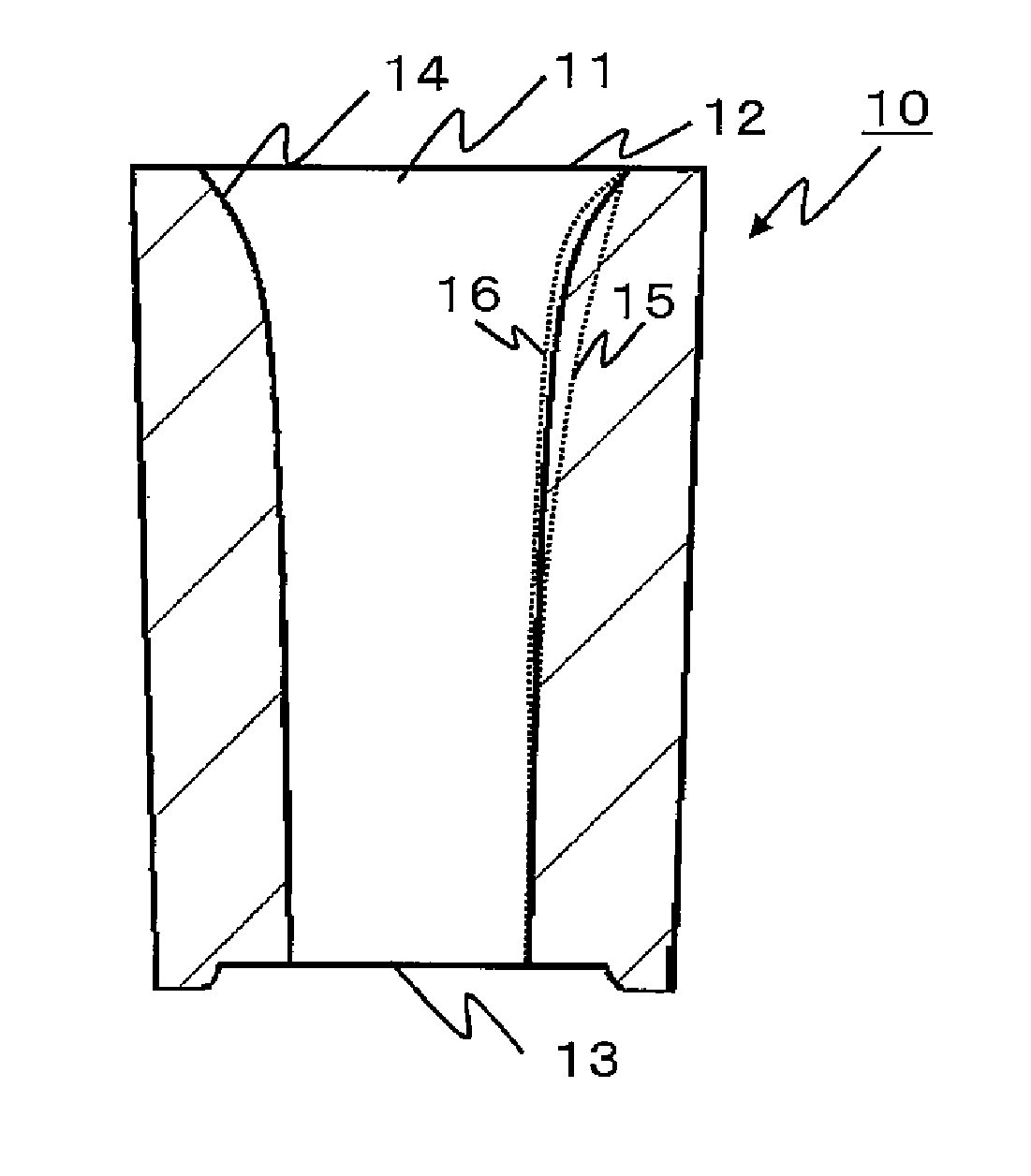

Provided is a molten metal discharge nozzle which has a bore configuration capable of creating a low-energy loss and smooth (stabilized) molten metal flow to suppress the occurrence of an adhesion matter. In the molten metal discharge nozzle, a radius r(0) of an upper end (12) of a bore (11) thereof is 1.5 times or more a radius r(L) of a lower end (13) of the bore, and a cross-sectional shape of a bore wall surface 14 taken along an axis of the bore has no bend point. Further, a radius r(z) of the bore at a position downwardly away from the upper end of the bore by a distance z (where L is an axial length of the bore) is in a range between [[L/{(r(0)/r(L))1.5−1}+L]/[L{r(0)/r(L))1.5−1}+z]]1/1.5×r(L) and [[L/{(r(0)/r(L))6−1}+L]/[L/{(r(0)/r(L))6−1}+z]]1/6×r(L).
