WING PANEL AND AIRCRAFT MAIN WING
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 23, 2012
app pub date -
Feb 17, 2012
filing date -
Feb 21, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

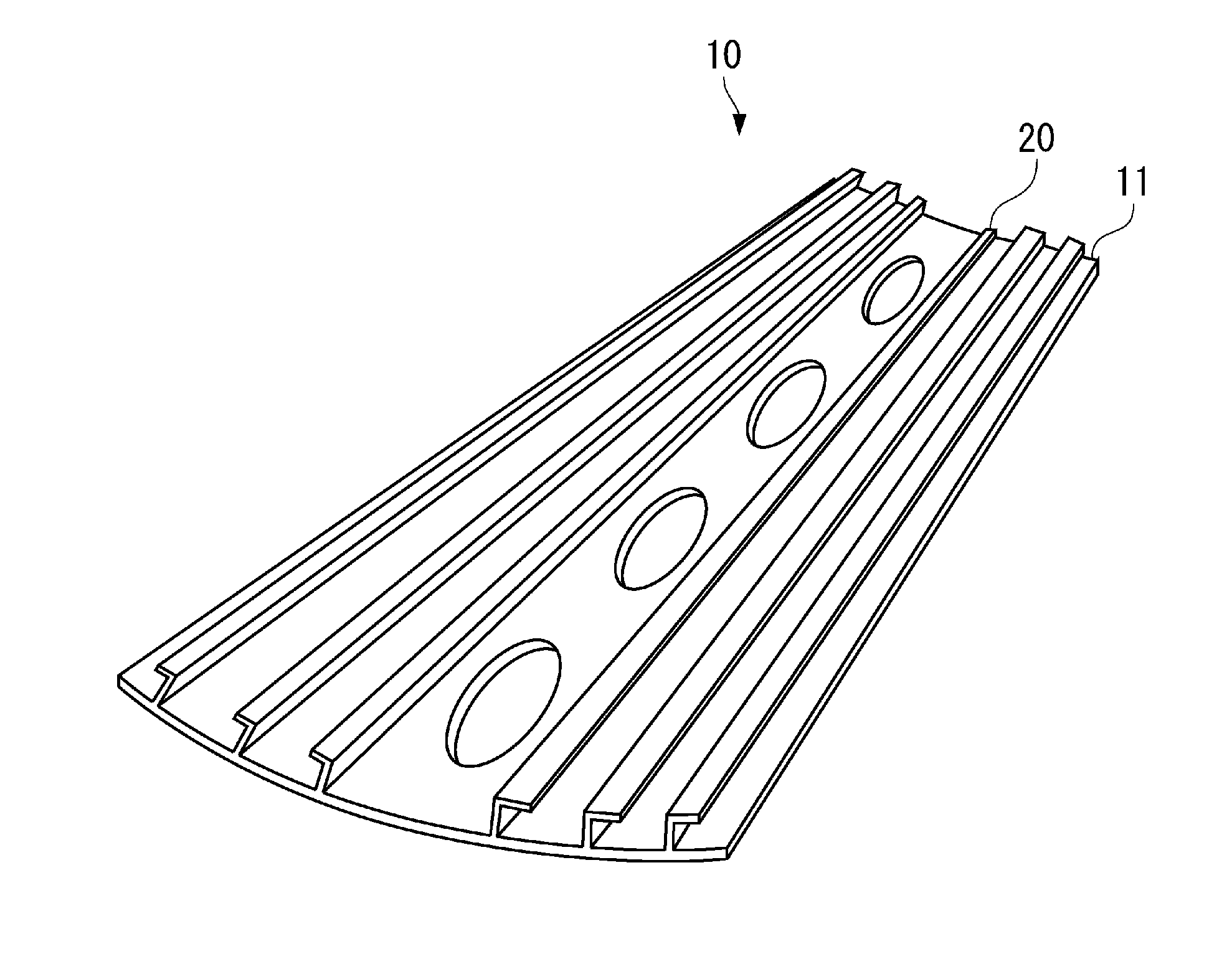

There is provided a wing panel having improved formability at the time when the wing panel is curvedly formed by the peen forming method, and an aircraft main wing provided with the said wing panel. For a stringer member 20, a base part 21 is formed, and the neutral axis position N in the cross-sectional direction is located on the wing panel 11 side from the center position C in the height direction of a web part 22. When the peen forming method is carried out by projecting metal shots to a portion near a flange part 23 in the tip end portion of the stringer member 20, the tensile strain developing in the portion near a flange part 23 acts in a state in which the moment length around the neutral axis position N is kept long
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- B64C Class
- 4.50 % this patent is cited more than
- 13 Age
