ORGANIC EL MODULE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 16, 2012
app pub date -
Oct 15, 2010
filing date -
Oct 30, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

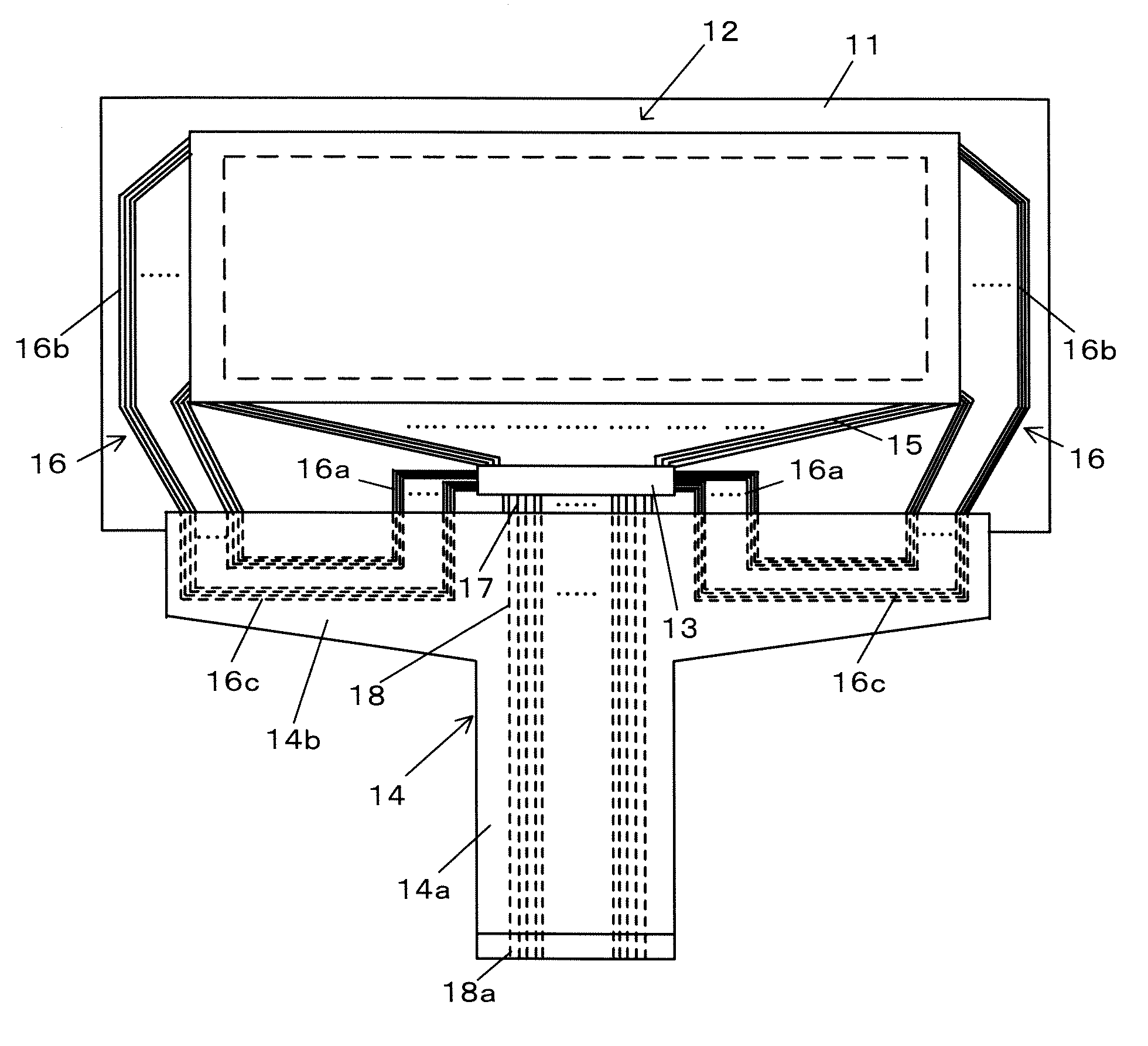

Provided is an organic EL module wherein it is possible to prevent voltage drop by lowering the wiring resistance, and to improve the brightness of an organic EL element. The organic EL module is provide with: a light-emitting display unit (12) which has a plurality of first electrode lines formed on a support substrate (11), an organic light-emitting layer formed on said first electrode lines, and a plurality of second electrode lines formed so as to intersect the first electrode lines; a driver IC (13) which is arranged on the support substrate (11), and applies a drive current between the first and second electrode lines; and a circuit board (14) which is mounted onto the support substrate (11), and connects the driver IC (13) with an external circuit. A first wiring (16a), one end of which is connected to the driver IC (13), and a second wiring (16b) which is decoupled from the first wiring (16a) on the support substrate (11) are formed on the support substrate (11); the first wiring (16a) is connected to the second wiring (16b) via a third wiring (16c) formed on the circuit board (4).
First Claim
Other Claims data not available
