PISTON RING
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 16, 2012
app pub date -
Nov 30, 2009
filing date -
Nov 30, 2009
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

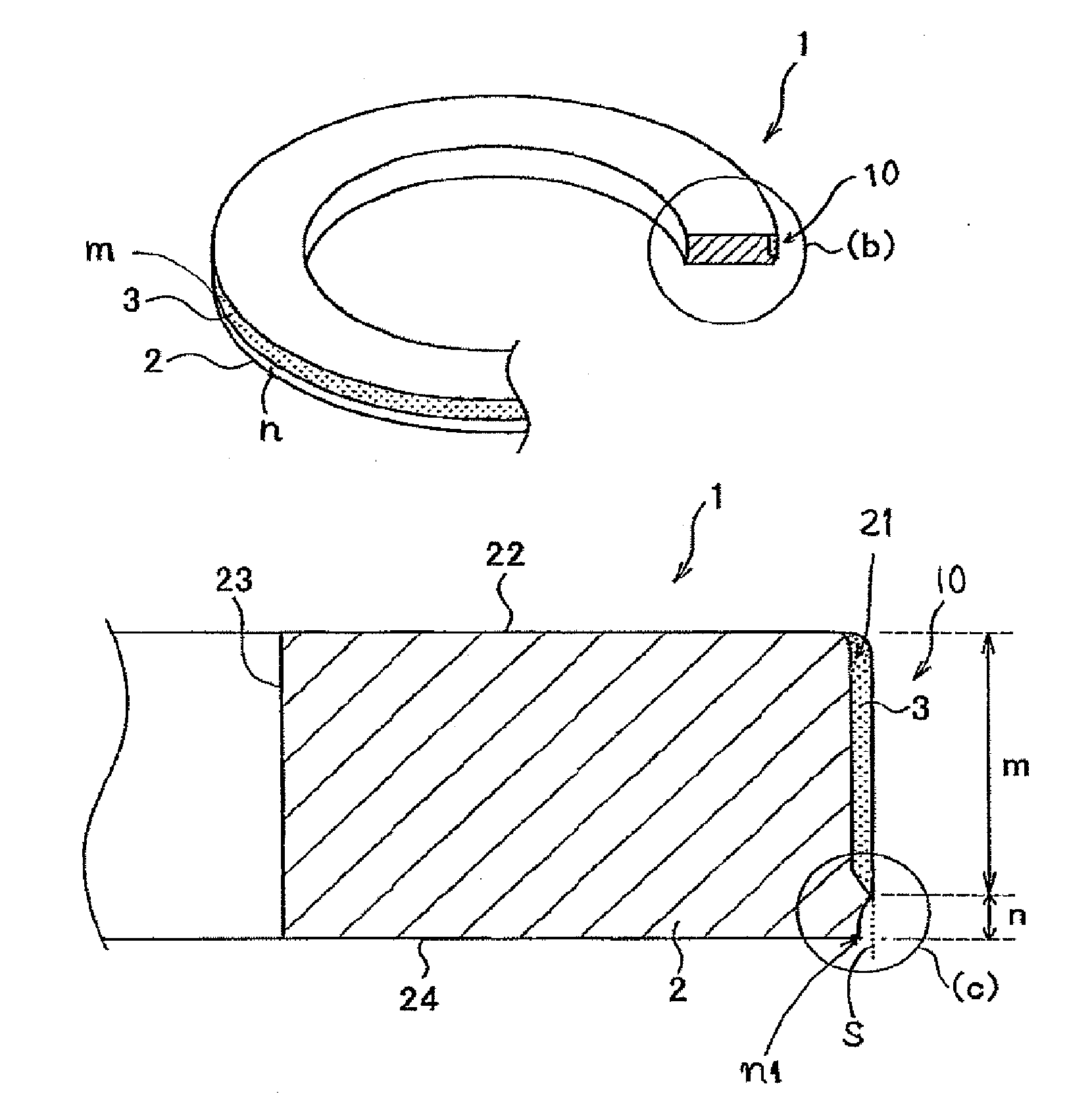

A piston ring is provided at its outer periphery with a sliding surface, wherein in a cross section thereof which is perpendicular to a radial direction of the piston ring, the sliding surface includes a first sliding surface which occupies a predetermined region from one end thereof, and a second sliding surface which occupies a region extending from one end to the other end of the first sliding surface, the first sliding surface is formed of hard film, the second sliding surface is not formed of hard film, and the second sliding surface exists at a position deviated inward from a phantom line extending from the first sliding surface toward the other end.
First Claim
Other Claims data not available
