Lubrication apparatus for four-stroke engine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 29, 2014
Grant Date -
Aug 9, 2012
app pub date -
Jun 23, 2010
filing date -
Oct 21, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

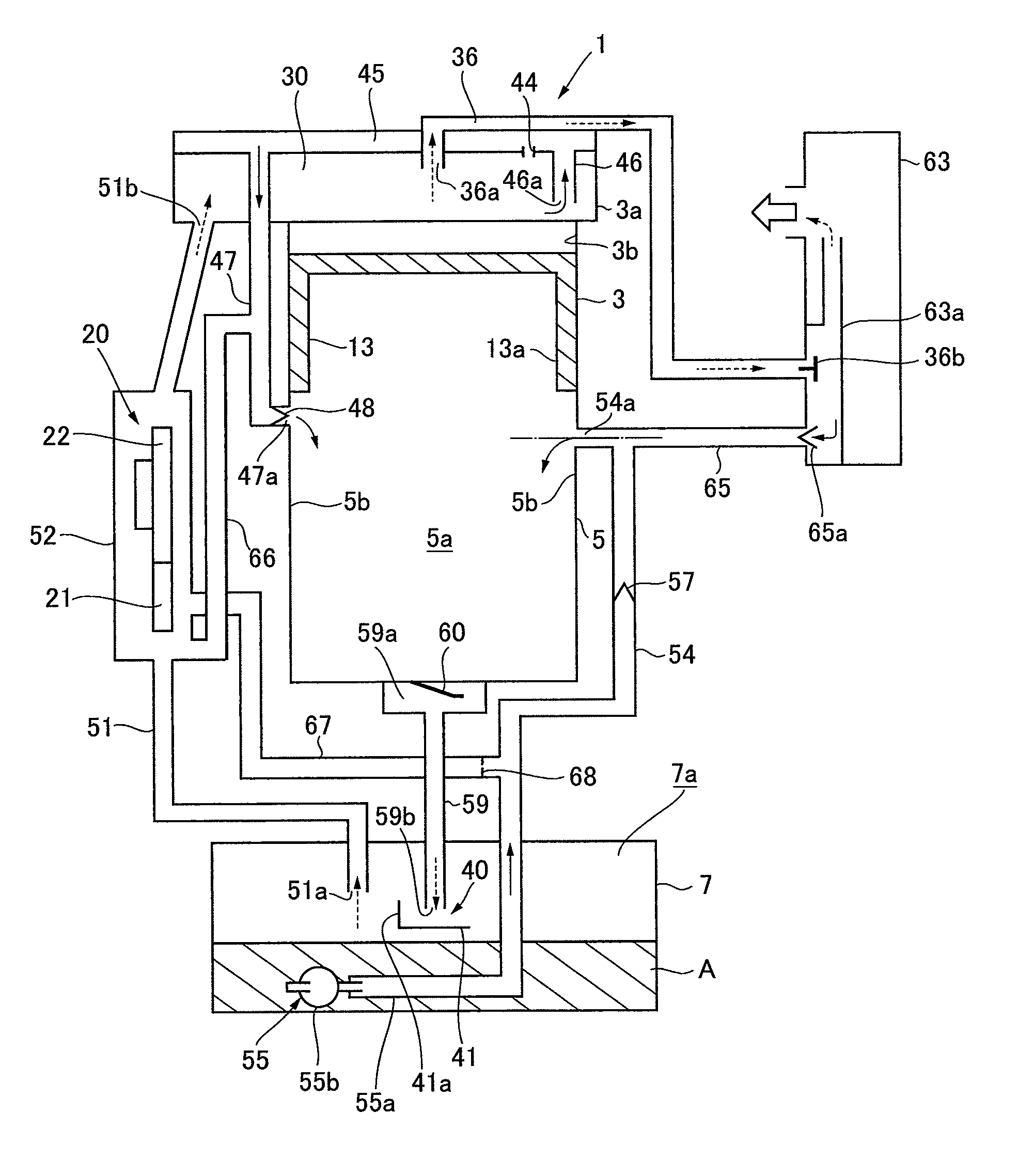

A lubrication apparatus for a four-stroke engine that prevents lubrication failure from occurring around the crankshaft and reliably prevents oil from remaining in a valve operating chamber includes: an intake part positioned below the level of an oil A in an oil reservoir even if the oil reservoir is tilted and the level of the oil A changes; an oil feeding passageway that sucks up the oil A from the intake part and supplies the oil A to the crank chamber; and an direct passageway that allows communication between a valve operating chamber and a crank chamber when a negative pressure is created in the crank chamber. Open end parts of the oil feeding passageway and the direct passageway which are open in the crank chamber are provided to open as the piston moves from a position near the top dead center to the top dead center.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2010 Application Filing Year
- F16N Class
- 58 Applications Filed
- 39 Patents Issued To-Date
- 67.25 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- F16N Class
- 11.36 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 29, 2025 |
