WING-MOUNTED REFUELING POD IN A TANKER AIRCRAFT
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 2, 2012
app pub date -
Jan 13, 2012
filing date -
Jun 29, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

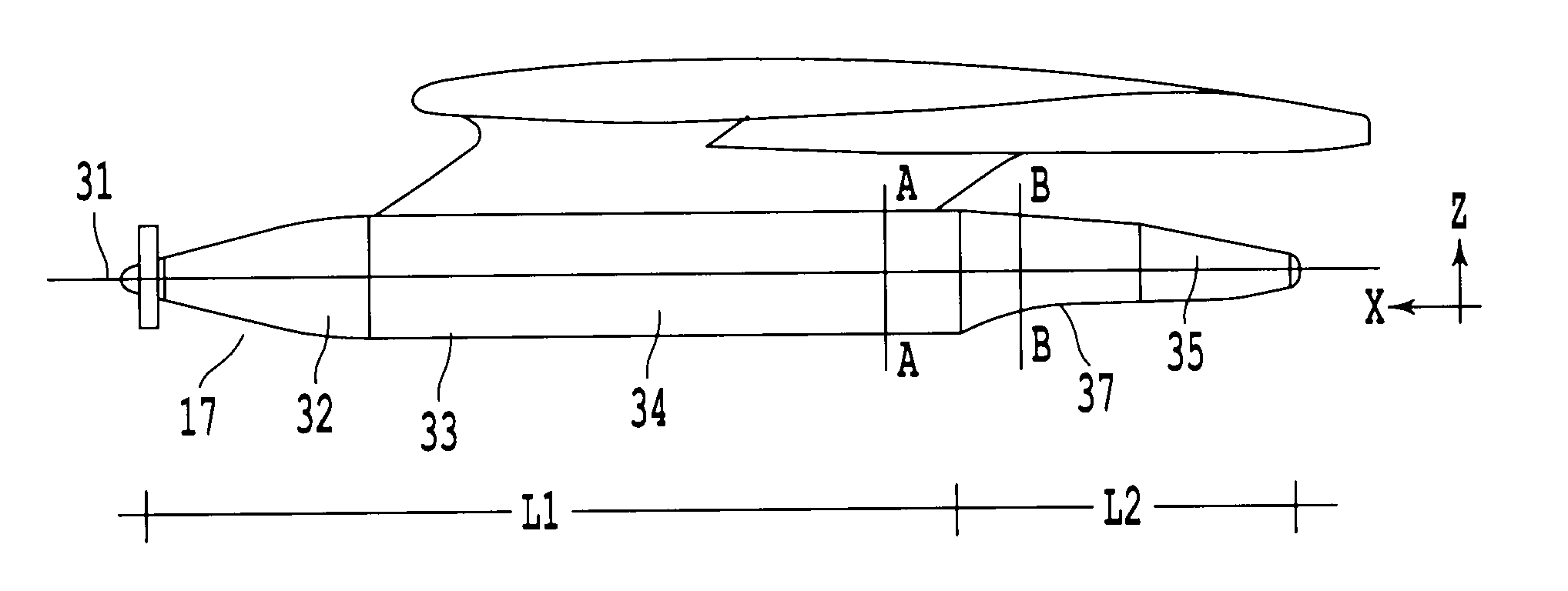

A refueling pod (17) for a tanker aircraft (13) used for refueling a receptor aircraft (11) in flight by means of a hose and drogue device (15) comprising a streamlined-shaped first section (33) that houses the main handling equipment of the hose and drogue device (15) and a second section (35) housing the opening (37) for the deployment/retraction of the hose and drogue device (15), in which said second section (35) has an streamlined shape and houses an opening (37) which has a symmetrical shape with respect to an hypothetical X-Z plane by the longitudinal axis (31) of the refueling pod (17) and is placed below an hypothetical X-Y plane by said longitudinal axis (31) for reducing the turbulence behind the refueling pod (17) and improving therefore the stability of the hose and drogue device (15).
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B64D Class
- 1.38 % this patent is cited more than
- 13 Age
