Methods And Apparatus For Monitoring Complex Flow Fields For Wind Turbine Applications

Number of patents in Portfolio can not be more than 2000

United States of America Patent

APP PUB NO 20120179376A1
SERIAL NO

13348307

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

A method is provided for generating range-resolved wind data near a wind turbine generator coupled to a control system. The method includes measuring wind flow data in a first long range region at a distance from a rotor plane of the wind turbine generator with a laser radar. The method also includes calculating wind fields in a second short range region and blade-specific wind fields for the at least one rotating blade based upon the measured wind flow data, the second short range region being generally closer to the rotor plane of the wind turbine generator than the first long range region. The method further includes generating range-resolved wind data. A system is also provided for generating range-resolved wind data near a wind turbine generator. A non-transitory computer readable storage medium provides wind classification codes to a control system coupled to a wind turbine generator based upon range-resolved wind fields,

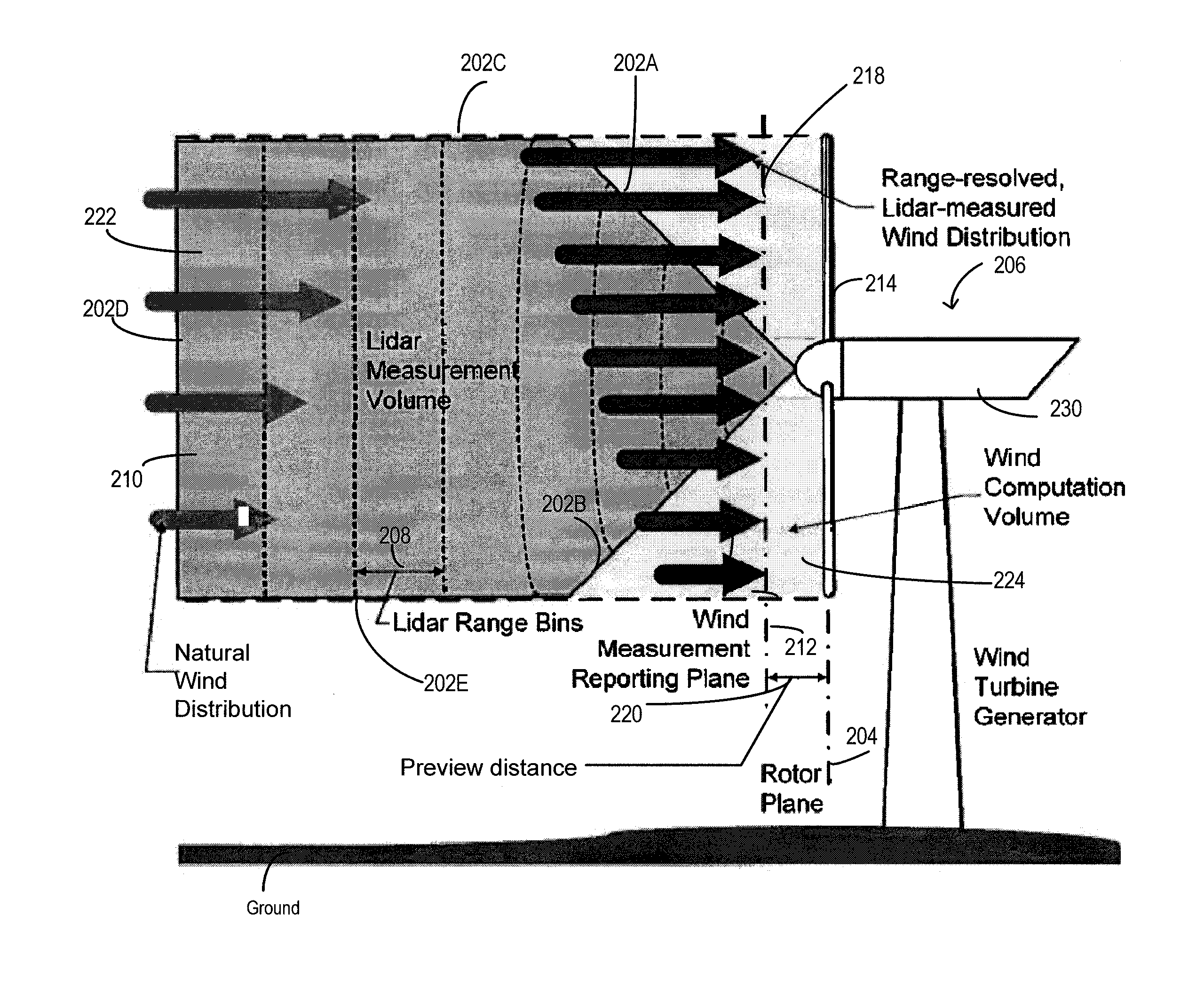

Loading the Abstract Image... loading....

First Claim

See full text

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
OPHIR CORPORATION10184 WEST BELLEVIEW AVENUE SUITE 200 LITTLETON CO 80127

International Classification(s)

  • [Classification Symbol]
  • [Patents Count]

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Acott, Phillip E Fort Collins, US 4 109
Caldwell, Loren M Ft. Collins, US 10 191
O'Brien, Martin Conifer, US 11 160
Spaeth, Lisa G Littleton, US 3 101

Cited Art Landscape

Load Citation

Patent Citation Ranking

Forward Cite Landscape

Load Citation
