ROTATIONAL ADJUSTMENT FOR STEREO VIEWING
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jan 10, 2011
filing date -
Jan 10, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

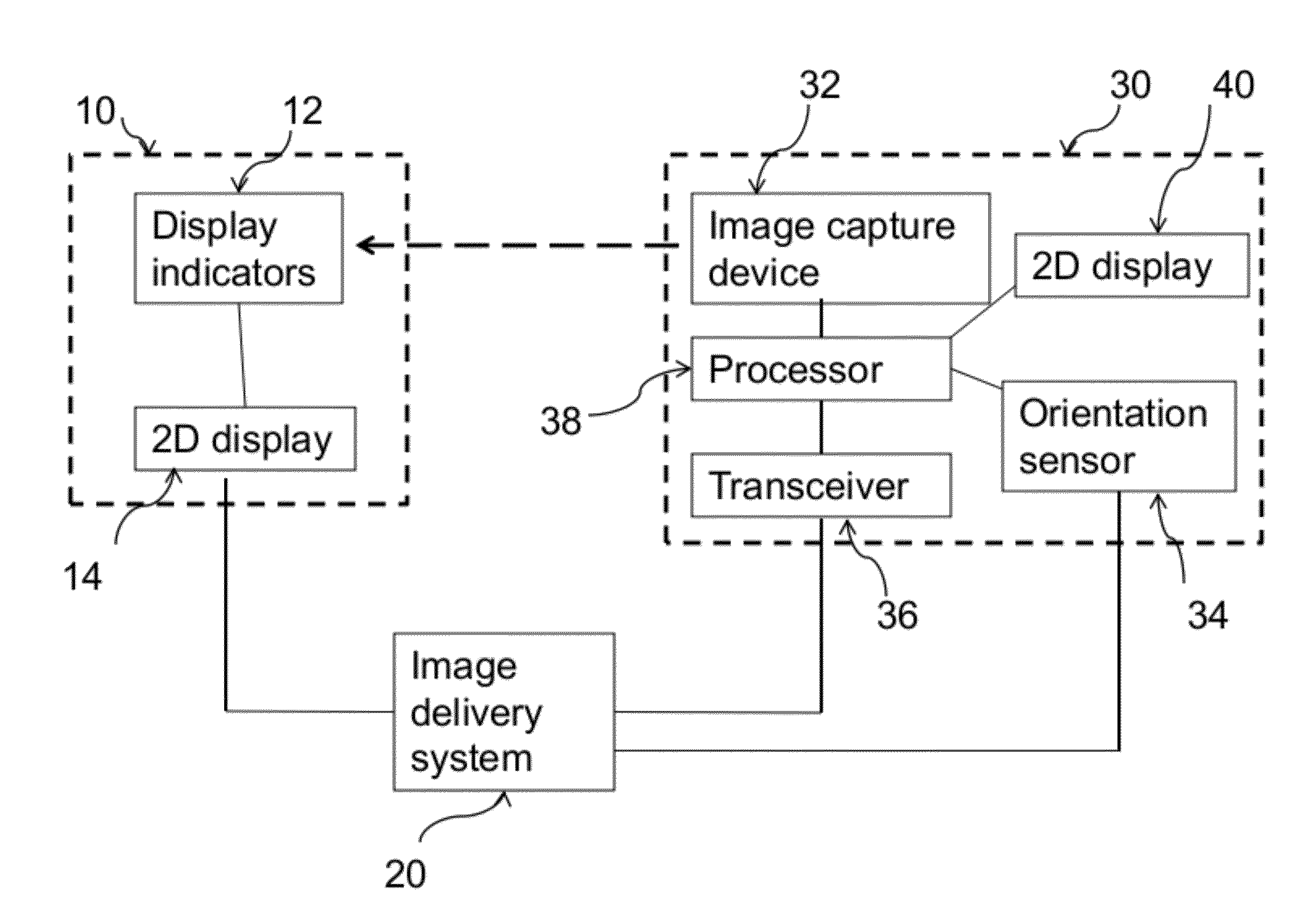

An apparatus for viewing of a three dimensional image of a scene including a monocular device worn by a viewer over one eye for displaying first two-dimensional images of the scene and a mechanism for rotating the first display in response to perceived rotational misalignments with a second display that displays second two dimensional images in stereo image pairs. A second display for displaying the second two-dimensional images of the scene. A way of determining lateral, longitudinal and rotational misalignments of the first images relative to the second images. A controller for providing lateral and longitudinal shifts of the first images on the first display and rotational movements of the mechanism to align the first and second images so the viewer perceives a three dimensional image of the scene.
First Claim
Other Claims data not available
