METHOD FOR CONTROLLING THE CHARGING OR DISCHARGING PROCESS OF A SECONDARY BATTERY WITH AUXILIARY ELECTRODE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Feb 15, 2012
filing date -
May 12, 2008
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

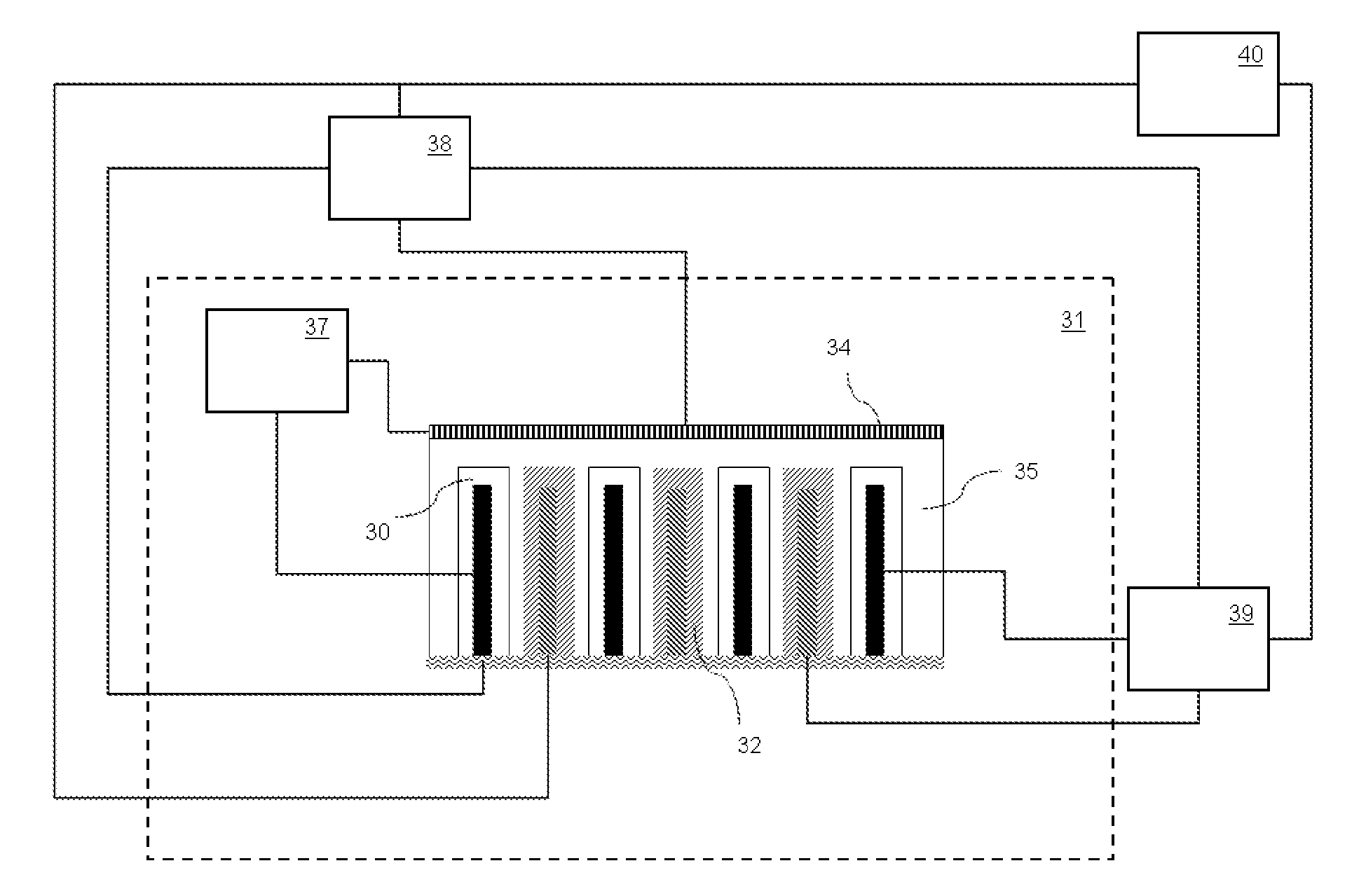

The present invention includes three-dimensional secondary battery cells comprising an electrolyte, a cathode, an anode, and an auxiliary electrode. The cathode, the anode, and the auxiliary electrode have a surface in contact with the electrolyte. The anode and the cathode are electrolytically coupled. The auxiliary electrode is electrolytically coupled and electrically coupled to at least one of the anode or the cathode. Electrically coupled means directly or indirectly connected in series by wires, traces or other connecting elements. The average distance between the surface of the auxiliary electrode and the surface of the coupled cathode or the coupled anode is between about 1 micron and about 10,000 microns. The average distance means the average of the shortest path for ion transfer from every point on the coupled cathode or anode to the auxiliary electrode.
First Claim
Other Claims data not available
