TUBE HOLDER
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jul 12, 2012
app pub date -
Jan 6, 2012
filing date -
Jan 6, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

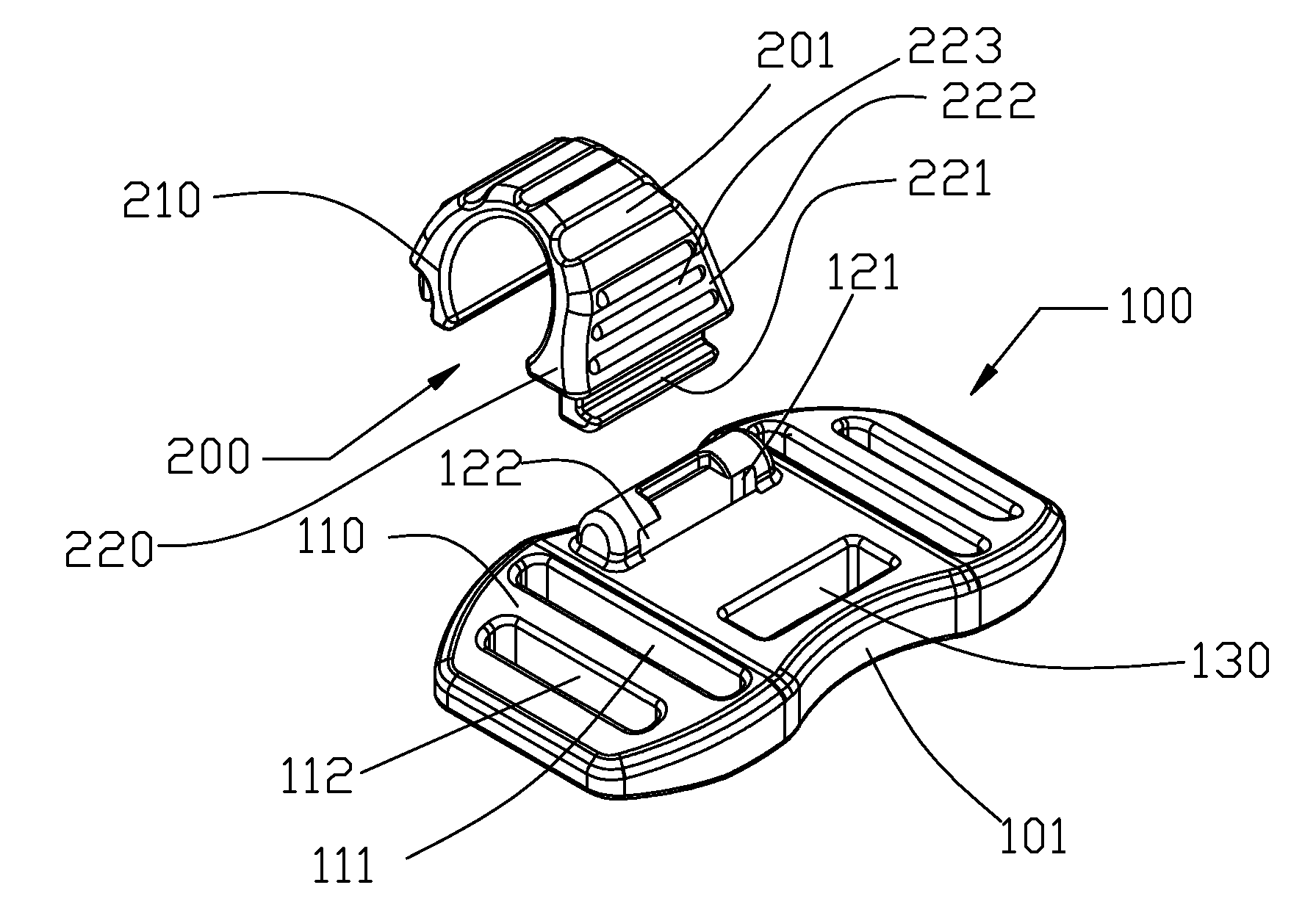

The present invention relates to a tube holder comprising a main body part and a part for clamping a tube. The latter is a semi-enclosed structure, a first end of which is in rotary connection with the main body part and a second end of which buckles into the main body part. Since the tube holder herein only comprises two parts, it is simple in structure. After the tube has been placed into the part for clamping a tube, the part for clamping a tube of a semi-enclosed structure buckles into the main body part. As a result, the tube will not come off due to users' body shaking, representing excellent reliability. The tube can move in the part for clamping a tube as well. Moreover, the tube holder herein can be fixed onto the apparels or backpacks and further be regulated up and down according to uses' need.
