SPIN-AND-CLICK COMBINATION DIAL LOCK ASSEMBLY
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jul 12, 2012
app pub date -
Jan 3, 2012
filing date -
Jan 3, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

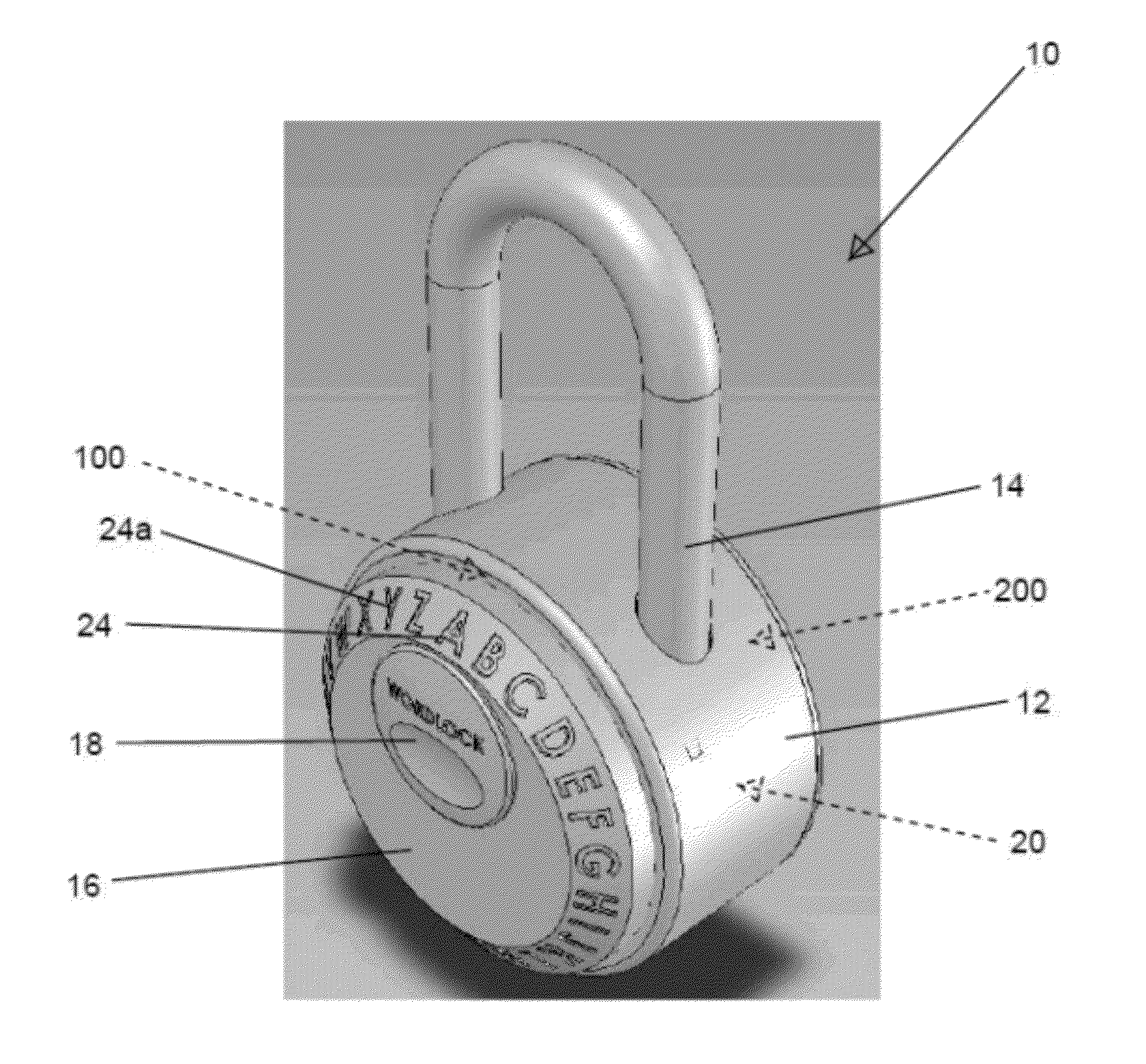

A resettable, combination dial lock assembly has a housing, a shackle, and a dial with indicia thereon. A subset of the indicia defines an unlocking combination. The dial is rotatable relative to the housing to positions corresponding to each of the indica subset. A selector is coupled to the dial. Combination members rotate upon rotation of the dial and are each associated with a respective one of the subset of indicia comprising the combination. Rotary members are coupled to the combination members, wherein rotation of the combination members causes rotation of the rotary members. The rotary members and combination members allow entry of the combination by rotating the dial in any direction and independent of a number of rotations made by the dial for activation of the selector to select each of the indicia comprising the combination to unlock the lock assembly.
First Claim
Other Claims data not available
