HIGH BANDWIDTH SWITCH DESIGN
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Mar 2, 2012
filing date -
Sep 8, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

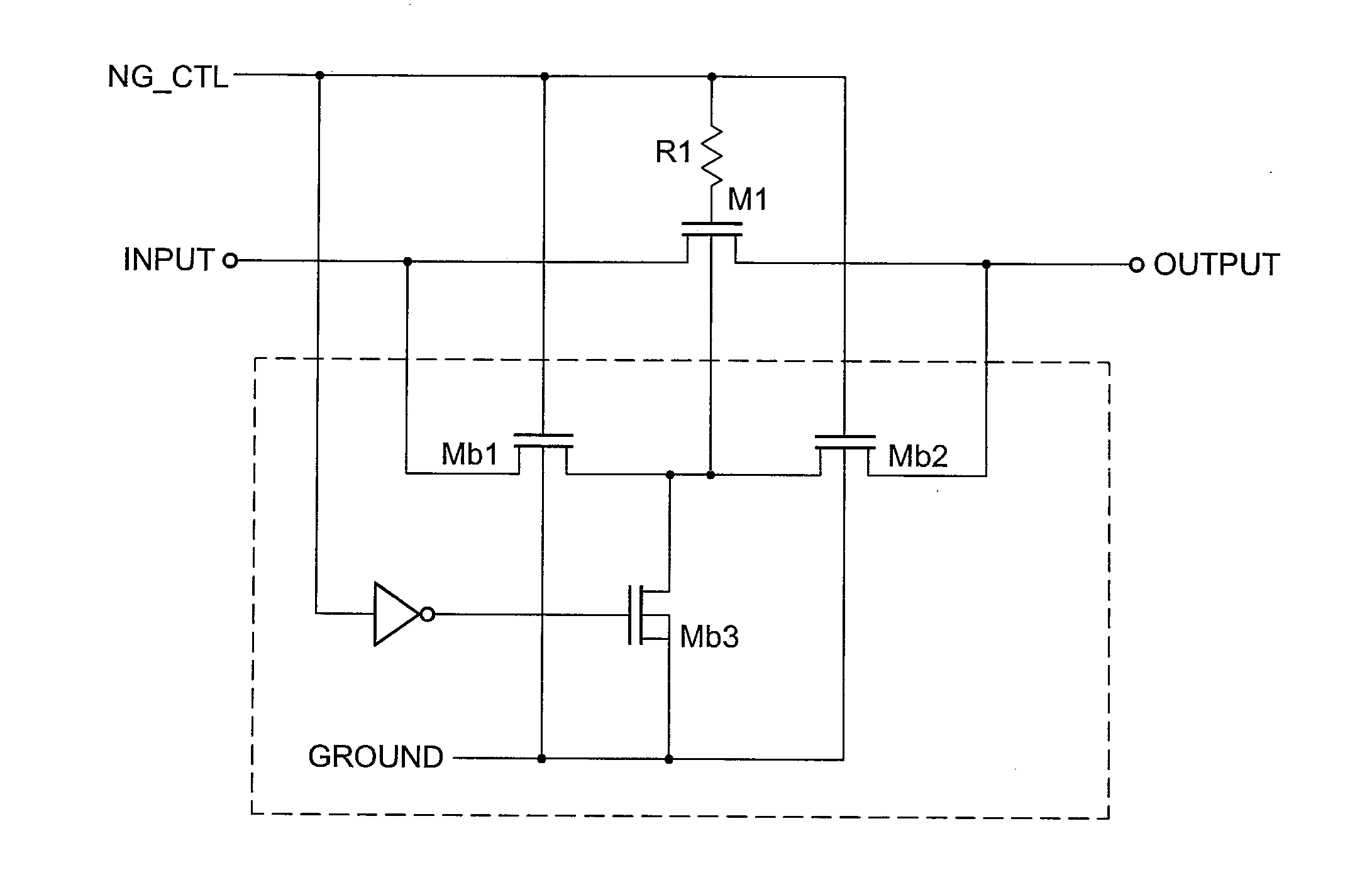

An analog switch includes a transistor having a current path between an input and an output, a gate coupled to a control terminal, and a bulk terminal, and a switched bulk control circuit coupled to the control terminal, the bulk terminal, and ground to reduce an equivalent capacitance seen from a source terminal or drain terminal of the transistor towards the bulk terminal of the transistor. The bulk control circuit includes an all-NMOS bulk control circuit if an NMOS transistor switch is used.
