SUSPENSION SYSTEM FOR A BICYCLE AND DAMPER DEVICE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 28, 2012
app pub date -
Dec 23, 2011
filing date -
Dec 23, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

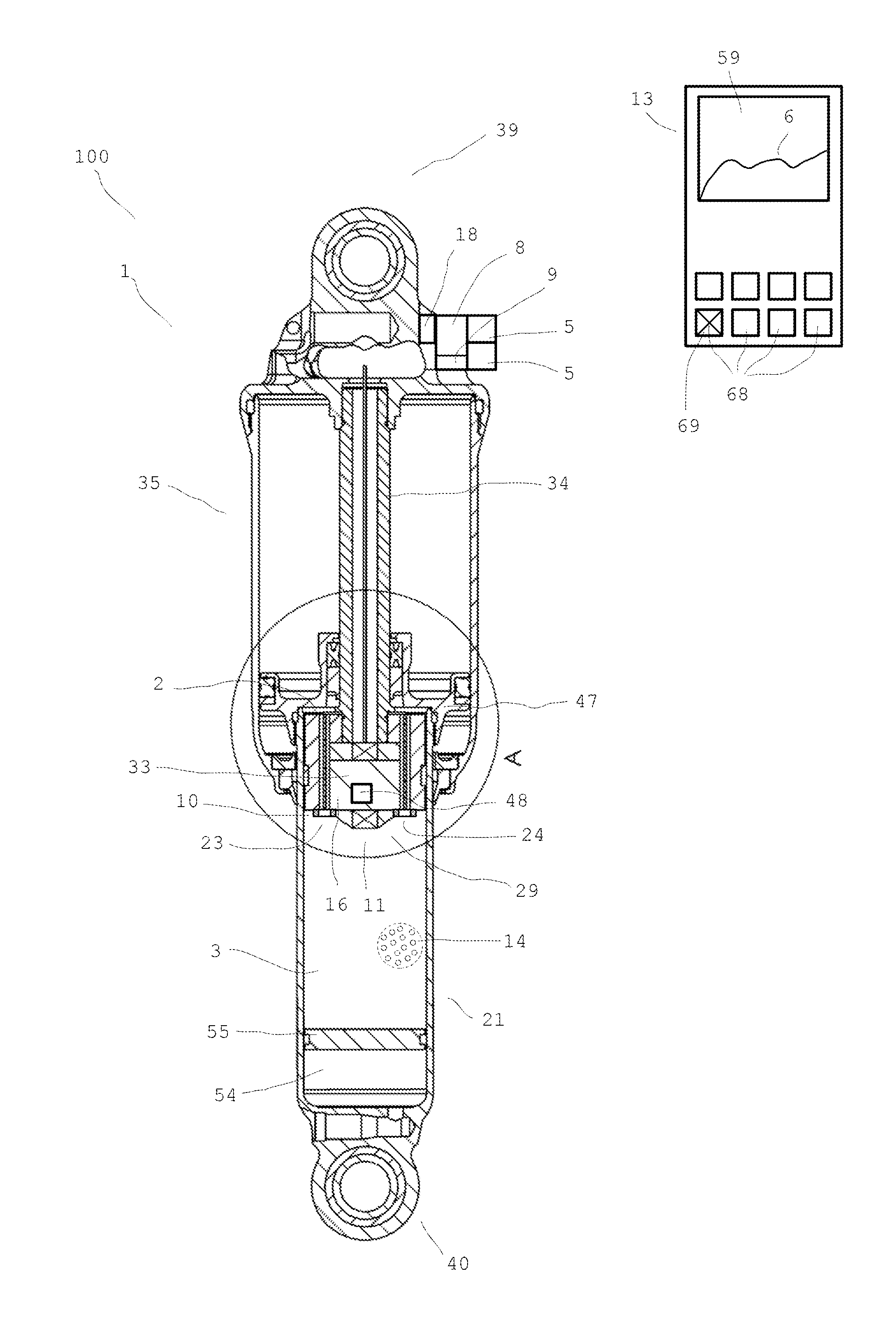

A suspension system for a muscle-powered two-wheeled vehicle having a damper device with a first damper chamber and a second damper chamber coupled with one another via a controllable damping valve. A sensor captures data about at least one current state. An electronic control device and a storage device are provided for controlling the damper device. At least one damping characteristic of the damper device can be influenced by a signal from the control device. The damping valve has a field generating device assigned to it which serves to generate and control a field strength in a damping channel of the damping valve. A field-sensitive rheological medium is provided in the damping channel for controlling the damping characteristic of the damper device in dependence on the sensor data.
First Claim
Other Claims data not available
