A HIGH PRESSURE GAS DISCHARGE VALVE FOR A FIRE-EXTINGUISHING OR EXPLOSION-PREVENTING SYSTEM

Number of patents in Portfolio can not be more than 2000

United States of America Patent

APP PUB NO 20120152571A1
SERIAL NO

13380088

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Calculated Rating
US Family Size
Non-US Coverage

Abstract

See full text

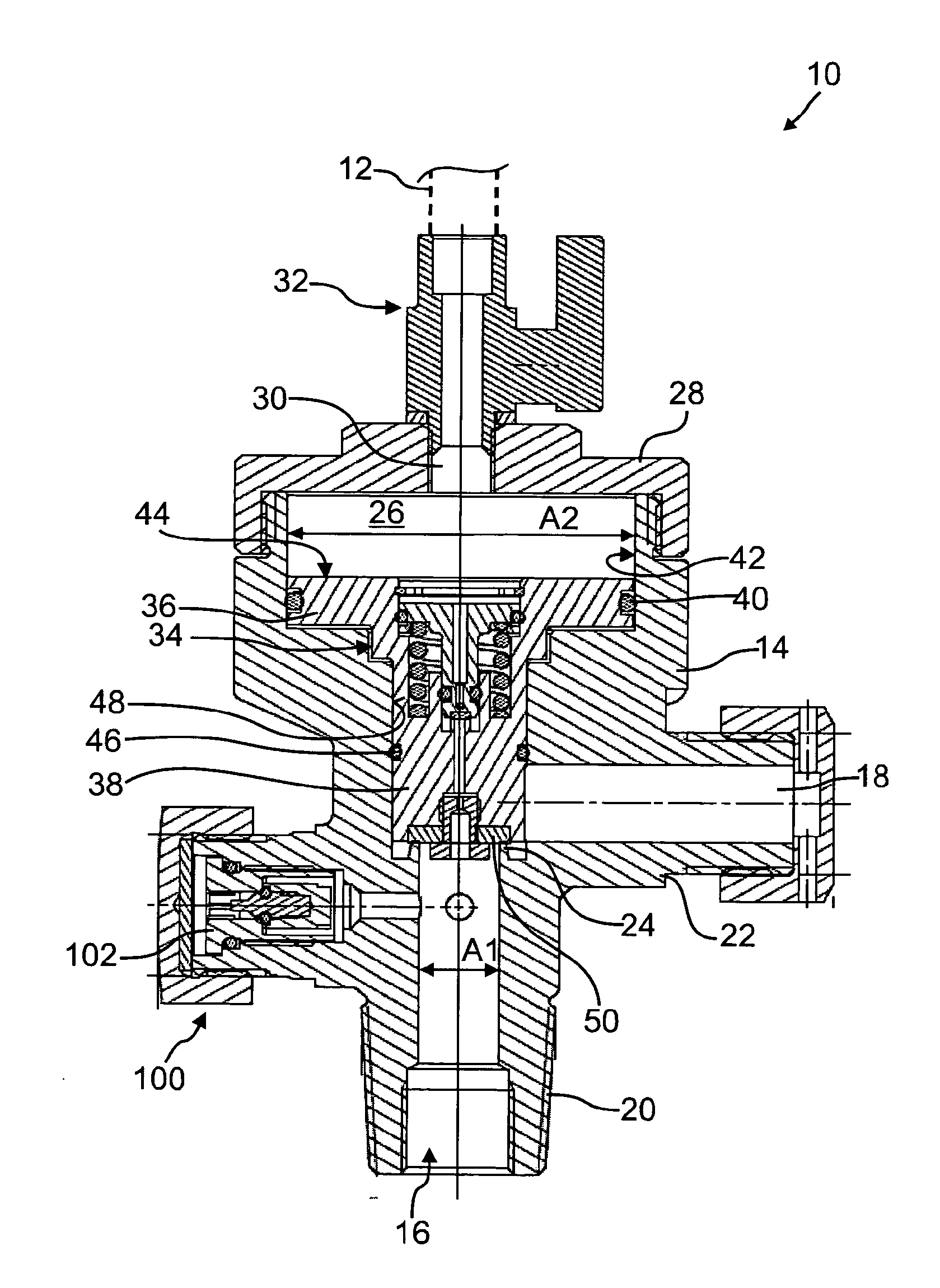

A high pressure gas discharge valve for a fire-extinguishing or explosion-preventing system including: a valve body with a gas inlet channel and a gas outlet channel; a valve seat arranged between the channels; and a triggering chamber; a closing piston which is slidably movable within the valve body and has a first end portion forming a pressure surface in the triggering chamber, a second end portion forming a sealing surface, with which it can be sealingly pressed against the valve seat, and a pressure compensation channel via which the triggering chamber communicates with the inlet channel when the closing piston rests on the valve seat; a triggering port in communication with the triggering chamber, for connecting thereto a low pressure triggering device that is capable of generating a pressure drop in the triggering chamber; and a pressure-reducing valve for reducing a pressure of high pressure gas to a reduced pressure suitable for the low pressure triggering device.

First Claim

See full text

Other Claims data not available

Family

PCTEP
+

Patent Owner(s)

Patent OwnerAddress
LUXEMBOURG PATENT COMPANY S A7440 LINTGEN

International Classification(s)

loading....
  • 2010 Application Filing Year
  • F16K Class
  • 1233 Applications Filed
  • 809 Patents Issued To-Date
  • 65.62 % Issued To-Date
Click to zoom InYear of Issuance% of Matters IssuedCumulative IssuancesYearly Issuances201020112012201320142015201620172018201920200255075100

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Andreas, Thomas Temmels, DE 5 17
