Linear Regulator and Electronic Device Comprising Such a Linear Regulator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 7, 2012
app pub date -
Apr 21, 2010
filing date -
Apr 23, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

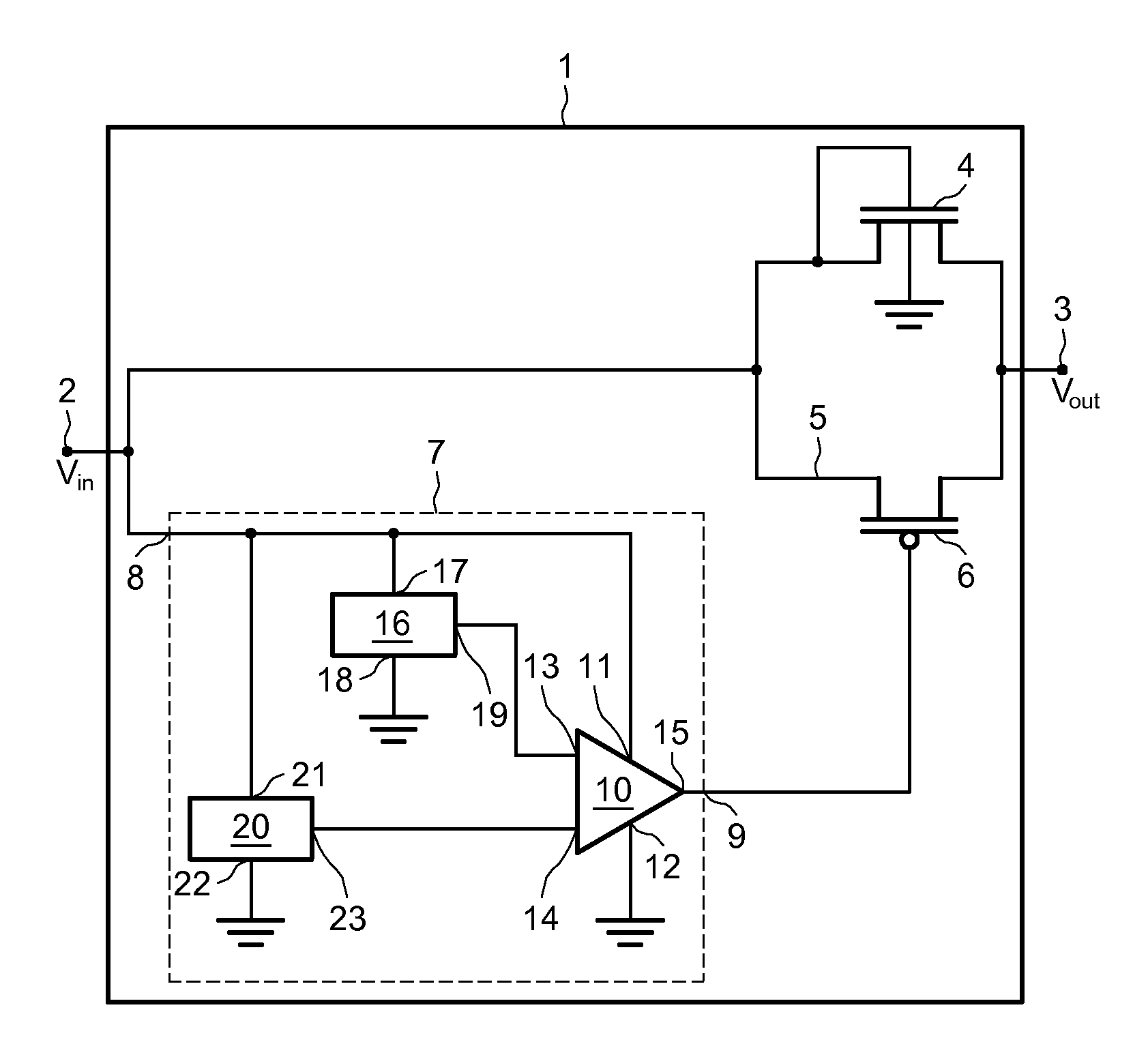

The invention relates to a linear regulator comprising input means configured to receive an input voltage, output means configured to deliver an output voltage, a shunt element coupled to said input means and said output means, and configured to be passed through by a current and to exhibit across its terminals a voltage drop independent of said current, controllable by-pass means coupled between said input means and said output means, and configured to have a first state for by-passing said shunt element and a second state for not by-passing said shunt element, and control means coupled to said input means and configured to place said by-pass means in their first state or in their second state depending on the value of said input voltage. The invention also relates to an electronic device comprising such a linear regulator.
First Claim
Other Claims data not available
