System and manufacturing a cathodoluminescent lighting device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 10, 2014
Issued Date -
N/A
app pub date -
Mar 30, 2010
filing date -
Mar 30, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

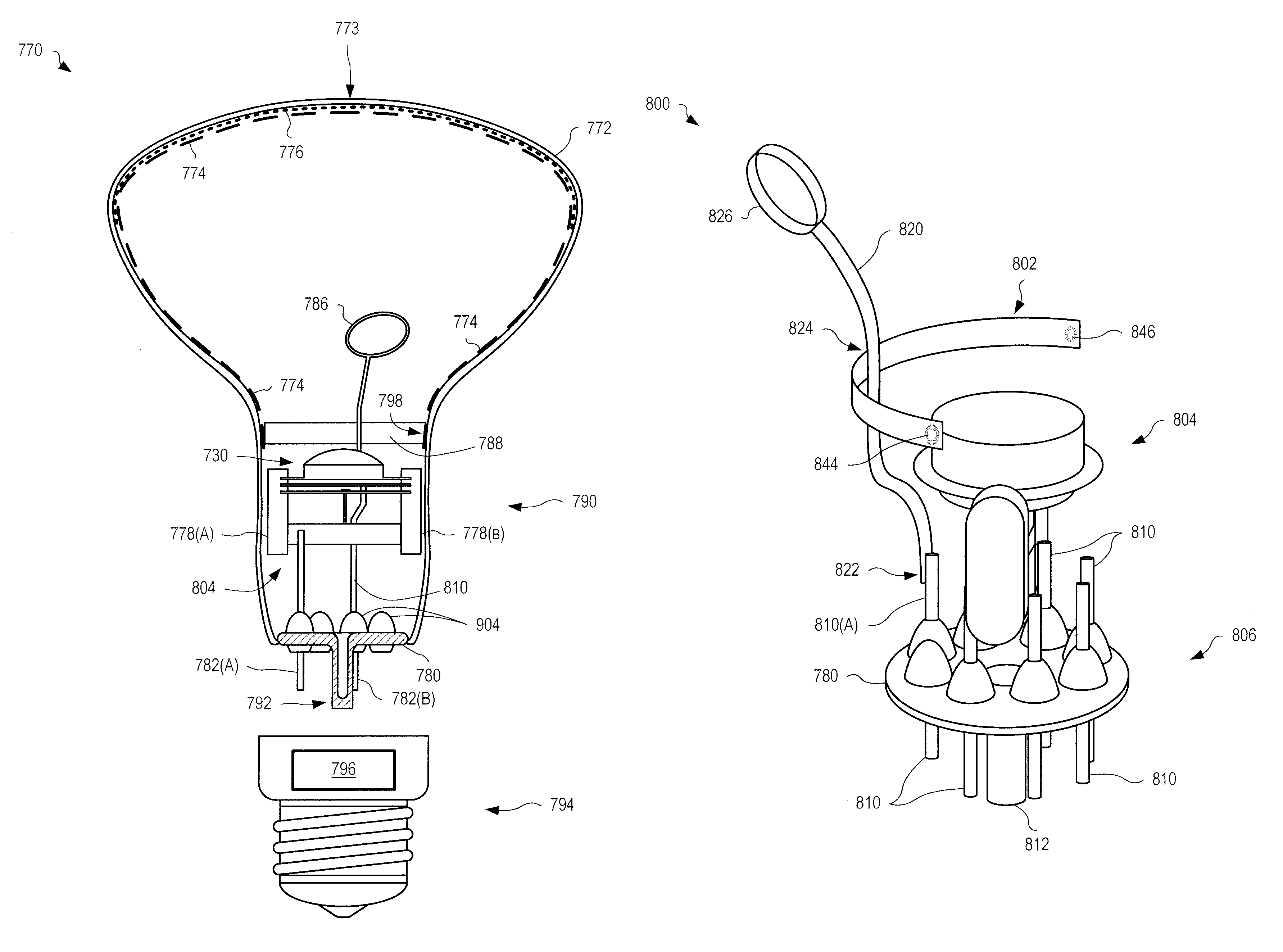

A device for lighting a room is described. The device has an envelope with a transparent face, the face having an interior surface coated with a cathodoluminescent screen and a thin, reflective, conductive, anode layer. There is a broad-beam electron gun mounted directly to feedthroughs in a base of the envelope with a heated, button-on-hairpin, cathode for emitting electrons in a broad beam towards the anode, and a power supply mounted on the feedthroughs at the base of the envelope that drives the cathode to a multi-kilovolt negative voltage. A two-prong snubber serves as an anode contact to permit the power supply to drive the anode to a voltage near ground. A method of manufacture of the anode uses a single step deposition and lacquering process followed by a metallization using a conical-spiral tungsten filament coated with aluminum by a thermal spray coating process.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01J Class
- 0 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 10, 2025 |
