Exhaust Manifold Gasket
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 7, 2012
app pub date -
Nov 22, 2011
filing date -
Dec 2, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

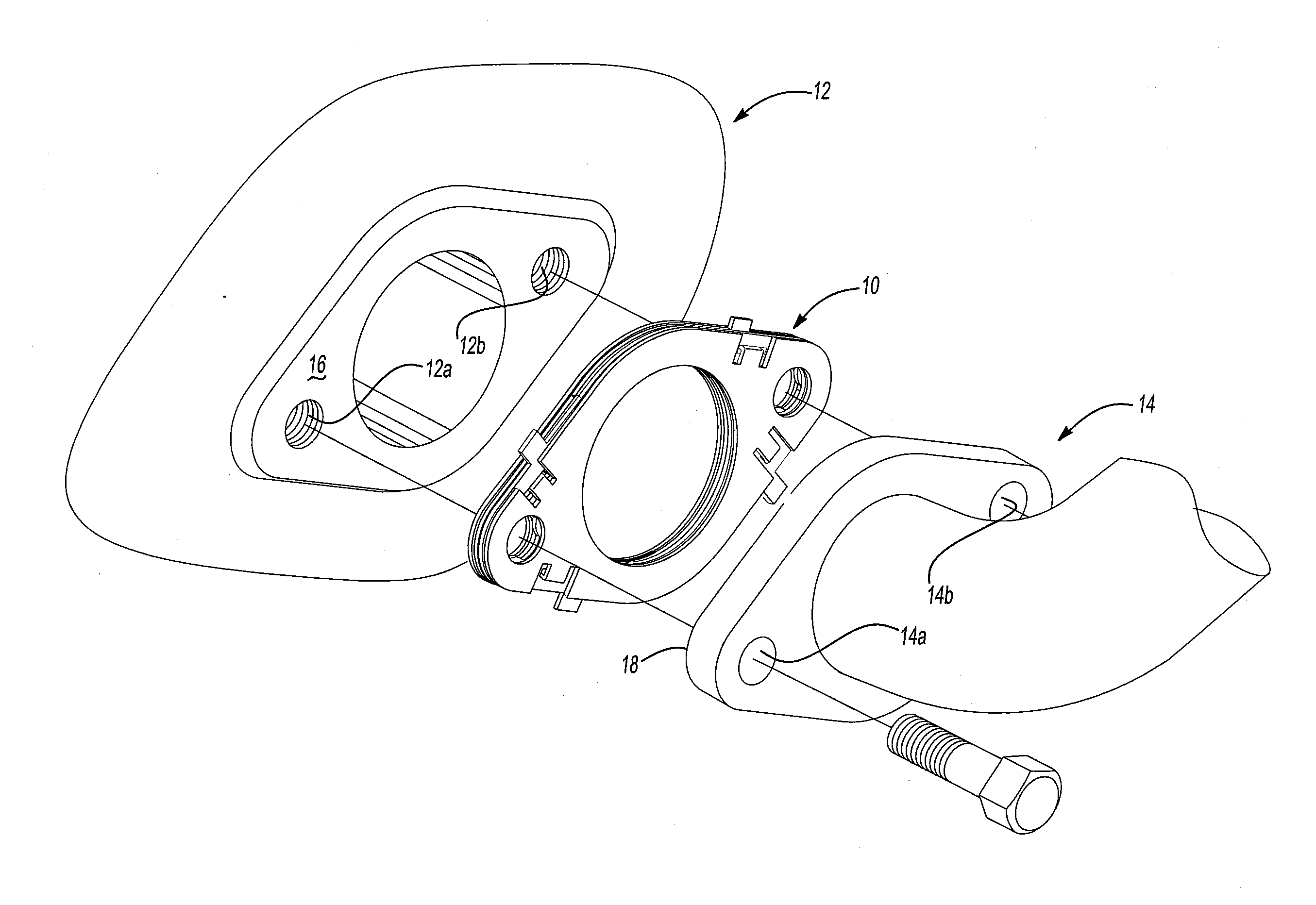

An exhaust manifold gasket assembly having at least two layers and a series of tabs and slots. The gasket has a first outer layer with an outer surface, an inner surface, two bolt hole flanges, and a central aperture. The surfaces are bounded by an outer perimeter portion, with foldable tabs. A first inner layer and a second inner layer each with an outer surface, an inner surface, two bolt hole flanges, a central aperture, and internal slots. The surfaces are bounded by an outer perimeter portion with locator tabs. Each inner layer has a bead circumferentially extending around the central aperture. A second outer layer may be provided having an outer surface, an inner surface, two bolt hole flanges, a central aperture, and internal slots. The surfaces are bounded by an outer perimeter portion.
