RECLAIMER MACHINE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 7, 2012
app pub date -
Oct 14, 2011
filing date -
Oct 14, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

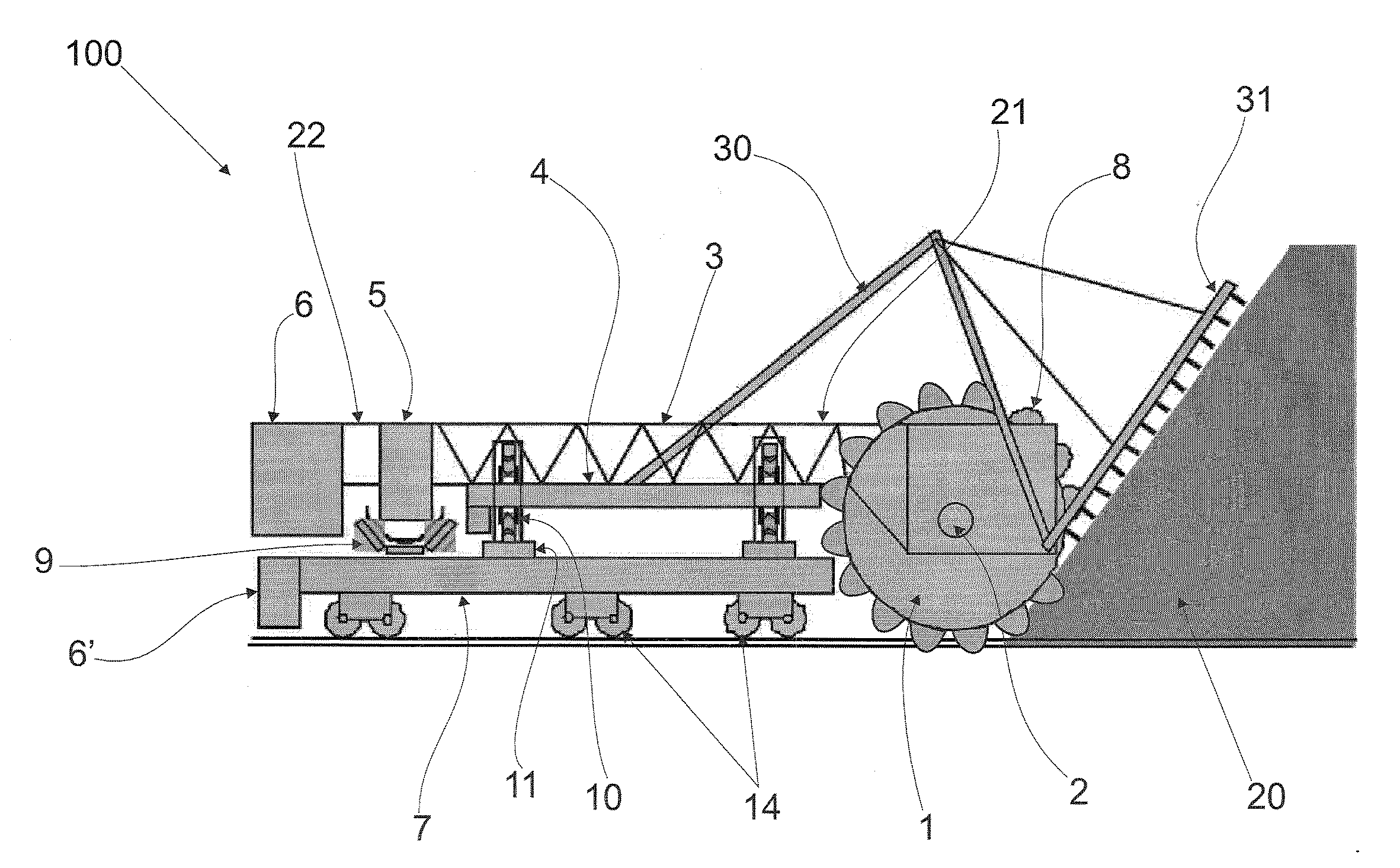

Aspects of this invention include a reclaimer machine for reclaiming and homogenizing materials such as ore, coal and others, stock-piled in yards. The reclaimer machine may include a bucket wheel having a series of buckets rotating around a shaft, a conveyor belt connected to the bucket wheel and to a transfer chute, the conveyor belt being supported by a mobile upper platform that moves laterally to a pile on tracks attached to a mobile lower platform, wherein a first end of the conveyor belt structure may be connected to the bucket wheel and another end of the conveyor belt structure may be connected to a counterweight which maintains the balance of the reclaimer machine and supports the bucket wheel, upper platform and lower platform movements.
First Claim
Other Claims data not available
