RAPID MATERIAL PLACEMENT APPLICATION FOR WIND TURBINE BLADE MANUFACTURE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 7, 2012
app pub date -
May 4, 2010
filing date -
May 4, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

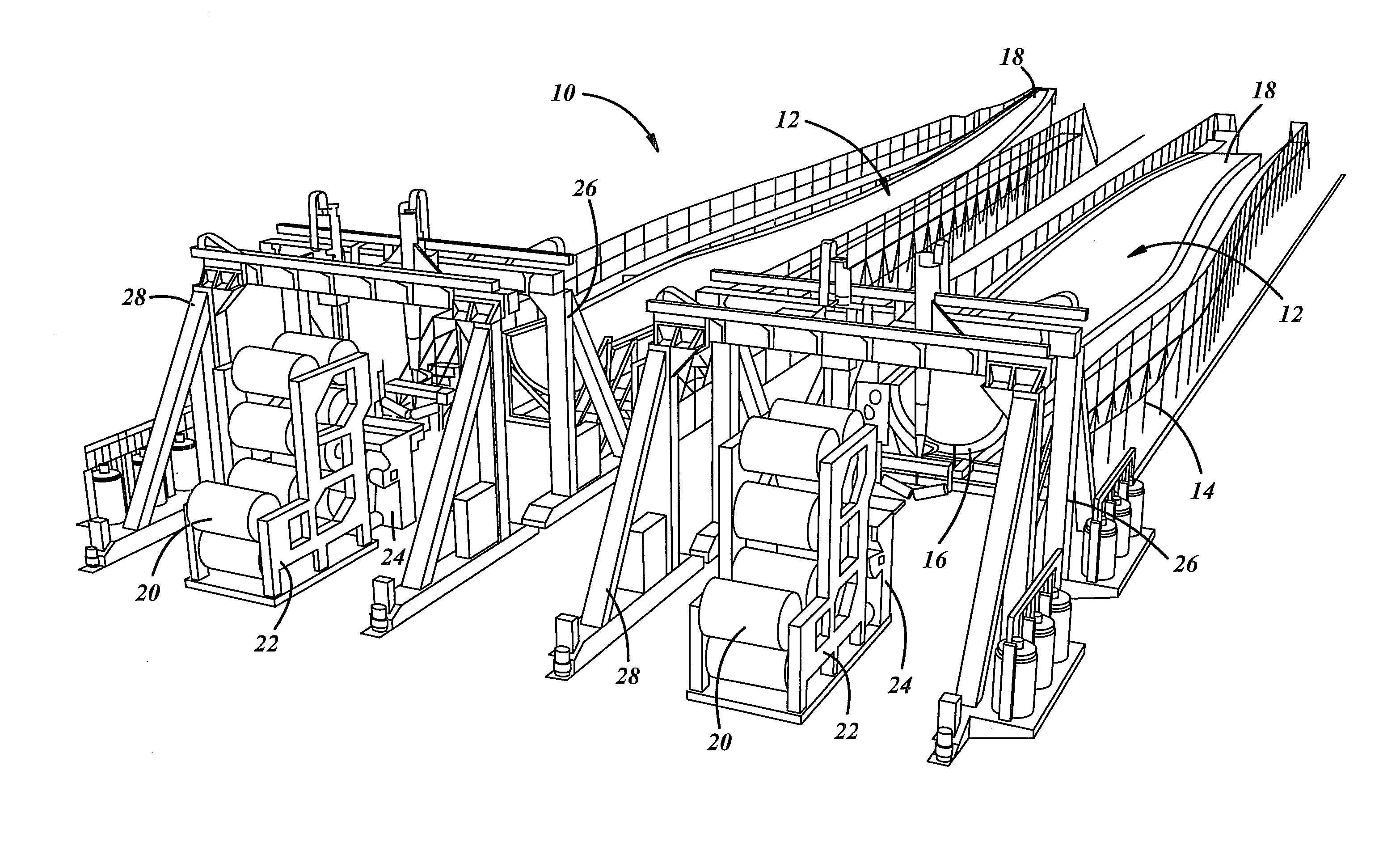

An apparatus is disclosed for charging molds used to mold wind turbine blades in which the molds have a root end and a tip end. The apparatus includes a first and second gantries located at the root end of the mold and capable of moving to the tip end of the mold. A layup end effector on the first gantry receives a length of reinforcing ply material and temporarily stores the ply material on the layup end effector. A clamping end effector mounted on the second gantry has a clamping board that is shaped to fit the root end of the mold. The clamping end effector grips the end of the ply material temporarily stored on the layup end effector secures the end of the ply material to the root end of the mold while the first gantry lays the ply material in the mold.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 26 Citation Count
- B29C Class
- 89.26 % this patent is cited more than
- 13 Age
