TRANSLATORY MOTION STRENGTH TRAINING SYSTEM AND METHOD
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 31, 2012
app pub date -
Aug 2, 2010
filing date -
Aug 3, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

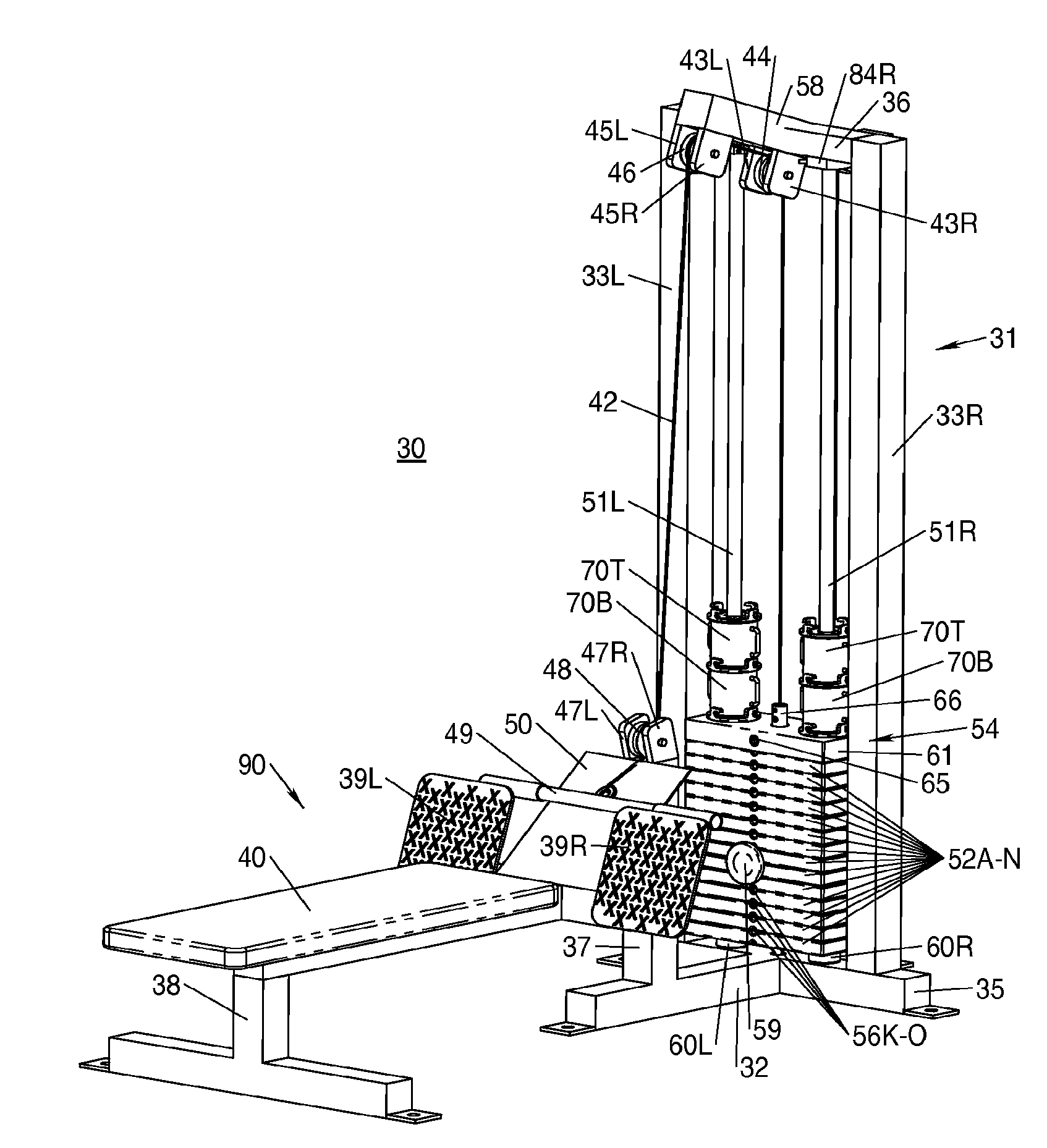

A strength training apparatus adapted for conducting translatory motion against a counteracting resistance. The apparatus includes strength training devices wherein a carriage and corresponding guide means are provided for translating mass under the effect of gravity along a rectilinear or curvilinear path. Certain embodiments are configured for utilizing a selectable weight stack, loaded free weights or the user's body weight as a primary resistance that is independent of velocity. The apparatus enhances the results of strength training and exercise equipment for providing velocity-dependent resistance in addition to “static” resistance provided by the apparatus at constant velocity. The apparatus includes velocity-dependent resistance provided by eddy current resistance caused by the interaction of an electrically conductive structure encountering relative motion with a magnetic field. The electrically conductive structure is secured to a frame and magnetic field is provided by one or more permanent magnets secured to the carriage.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| WO | A2 | WO2011017250 | Aug 02, 2010 |
International Classification(s)
- 2010 Application Filing Year
- A63B Class
- 1629 Applications Filed
- 1251 Patents Issued To-Date
- 76.80 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 13 Citation Count
- A63B Class
- 59.51 % this patent is cited more than
- 13 Age
