FLUSH PANEL ADJUSTMENT ASSEMBLY FOR A LIFT AND SLIDE DOOR
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 24, 2012
app pub date -
Nov 22, 2011
filing date -
Nov 24, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

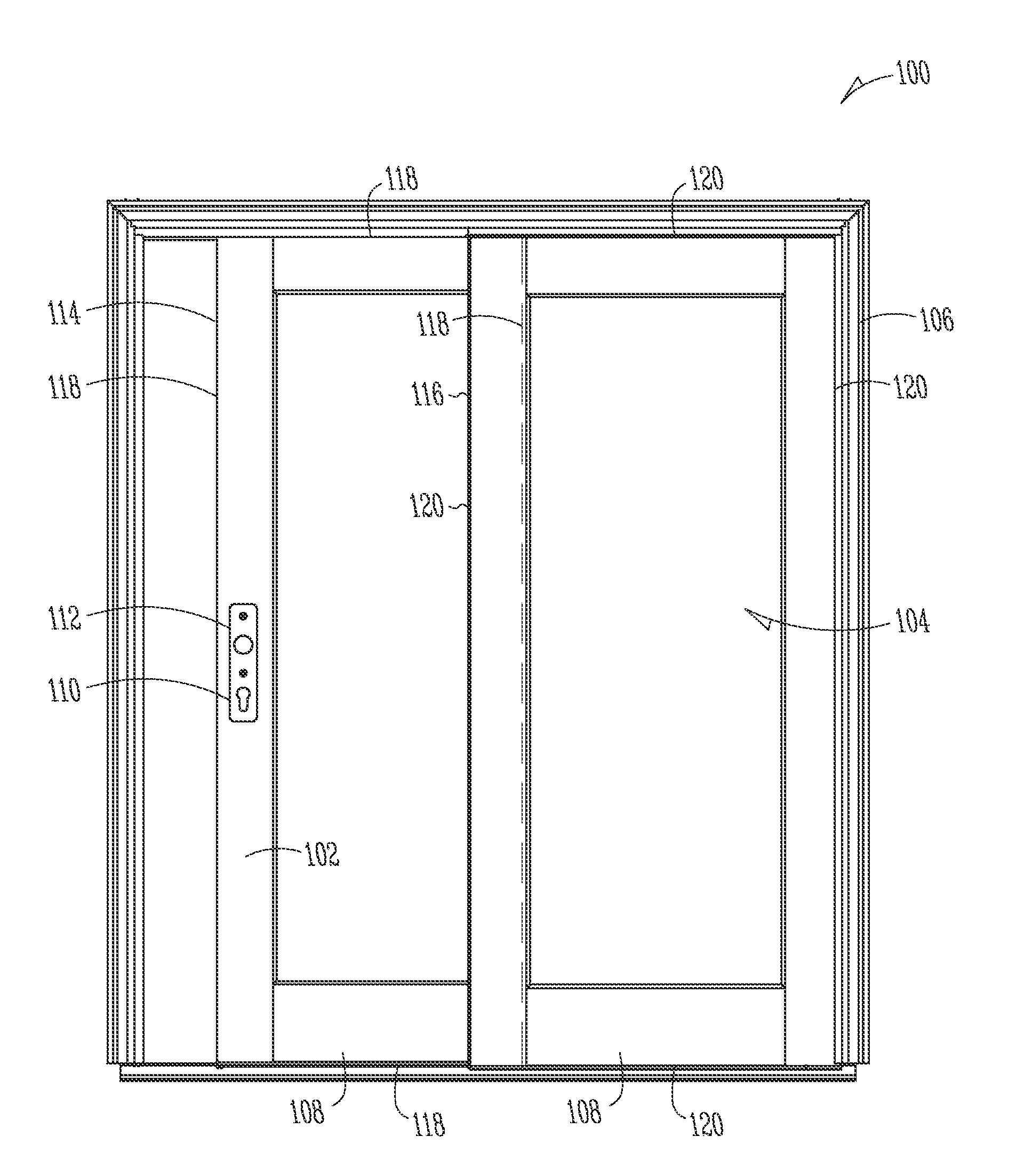

A fenestration assembly includes a first panel movably coupled within a frame. The first panel includes a first panel exterior surface and a first panel interior surface. A second panel is coupled within the frame. A first escutcheon is coupled along one of the first panel exterior surface or the first panel interior surface. The first escutcheon is flush mounted relative to the first panel exterior surface or the first panel interior surface, and the first escutcheon faces the second panel. A panel adjustment mechanism is disposed within the first panel and is configured to move the first panel from a static orientation to a movable orientation. The panel adjustment mechanism is accessible through the first escutcheon. The first panel is coextensive with the second panel in an open position, and the first escutcheon is concealed between the first and second panels.
First Claim
Other Claims data not available
