WET ETCHING APPARATUS AND METHOD
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 10, 2012
app pub date -
Jul 14, 2010
filing date -
Jul 23, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

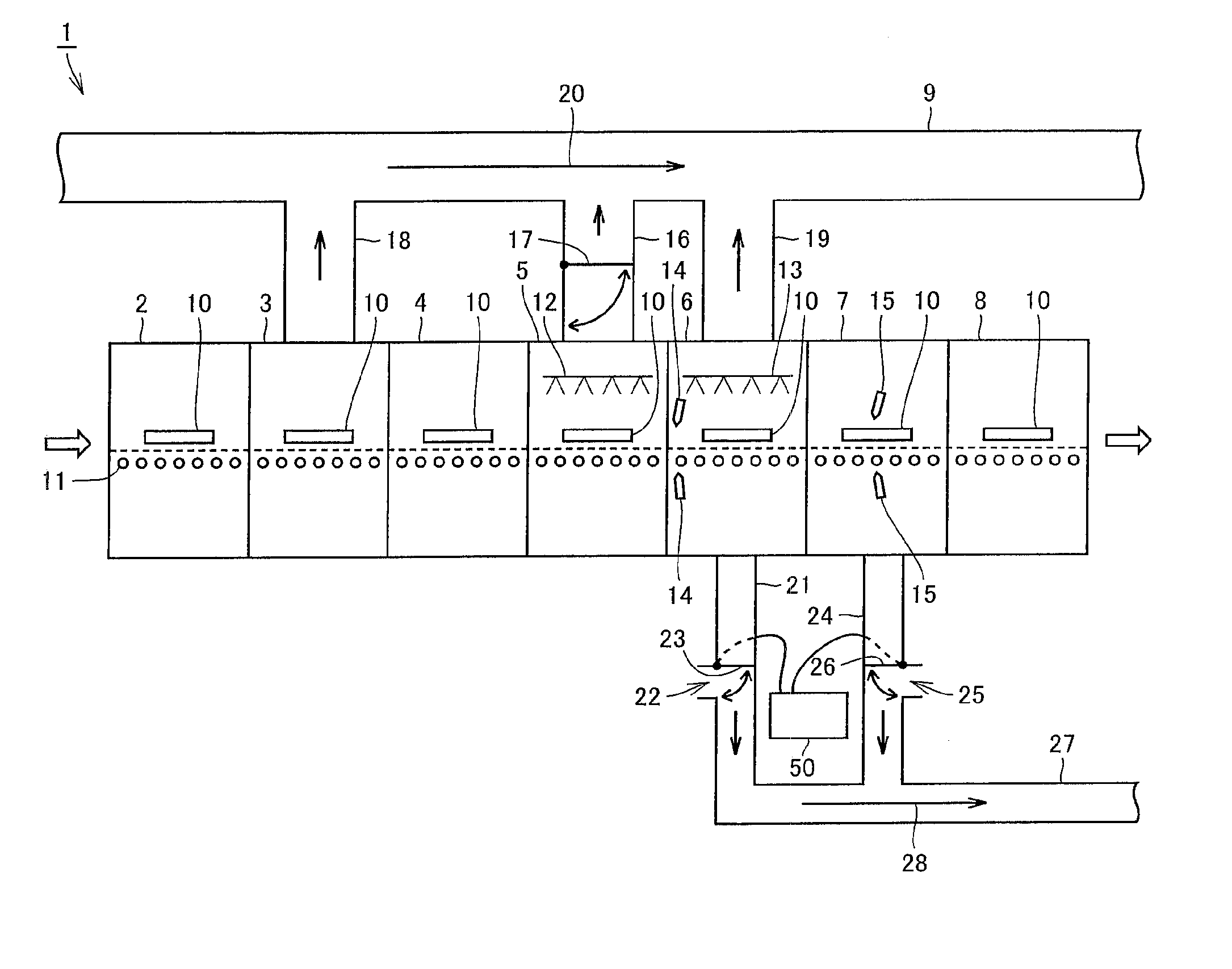

A wet etching apparatus includes: an etching vessel applying etchant to a substrate to etch the substrate; and a water cleaning vessel and a drying vessel connected to the etching vessel, successively processing the substrate, and provided with an air knife removing droplets on the substrate. The wet etching apparatus further includes: a duct connected at least to the etching vessel and having an interior maintained at a negative pressure; and an exhaust pipe connecting the water cleaning vessel and the drying vessel to the duct. The exhaust pipe is provided with an auto damper opening/closing the exhaust pipe and an inlet introducing external air. This allows the air knife to operate while allowing the wet etching apparatus to hold internal pressure lower than external pressure.
First Claim
Other Claims data not available
