Head harness for a horse
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 23, 2014
Issued Date -
N/A
app pub date -
Jul 15, 2010
filing date -
Jul 16, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

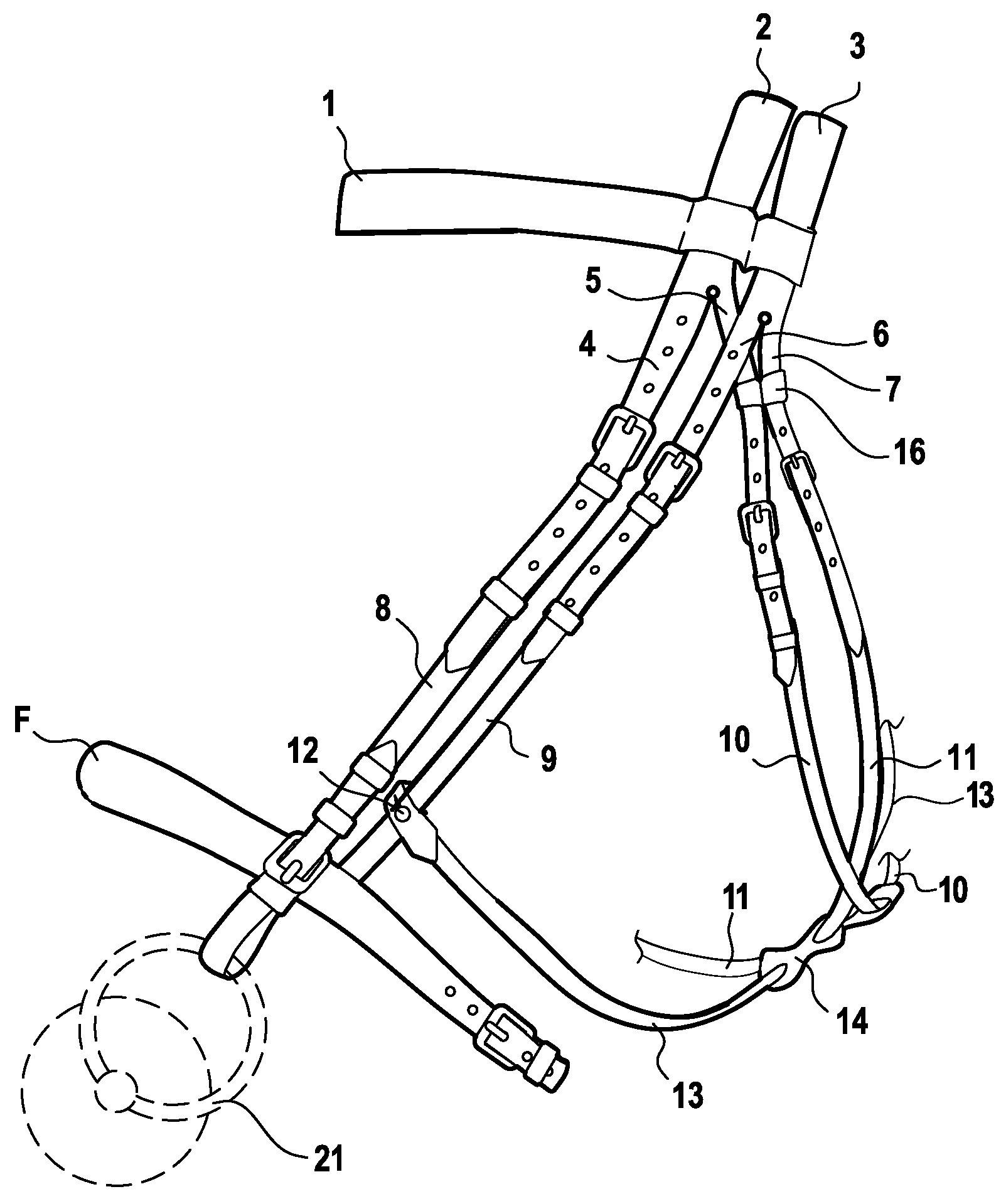

A head harness for a horse includes a browband linked, at the ends thereof, to two headpieces, each of which has, symmetrically on either side of the harness, two attachments arranged side by side, and in that, on the front headpiece, the cheek strap of the bit and one end of the throat latch are attached to the first attachment and to the second attachment, respectively, and in that, on the rear headpiece, the noseband cheep strap and one end of an auxiliary cheek strap and one end of an auxiliary cheep strap are attached to the first attachment and to the second attachment, respectively, the other end of said auxiliary cheek strap being attached onto the noseband cheek strap located on the other side of the harness, and in that the second attachment of the front headpiece that receives the throat latch and the second attachment of the rear headpiece that receives the auxiliary cheek strap are rigidly connected by a link.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| FR | B1 | FR2948112 | Jul 16, 2009 |
| EP | B1 | EP2454187 | Jul 15, 2010 |
| WO | A1 | WO2011007246 | Jul 15, 2010 |
International Classification(s)
- 2010 Application Filing Year
- B68B Class
- 6 Applications Filed
- 4 Patents Issued To-Date
- 66.67 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B68B Class
- 16.67 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 23, 2026 |
