BRINE FILTERING DEVICE, APPLIED TO A MEAT PRODUCT INJECTION MACHINE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Oct 28, 2011
filing date -
May 7, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

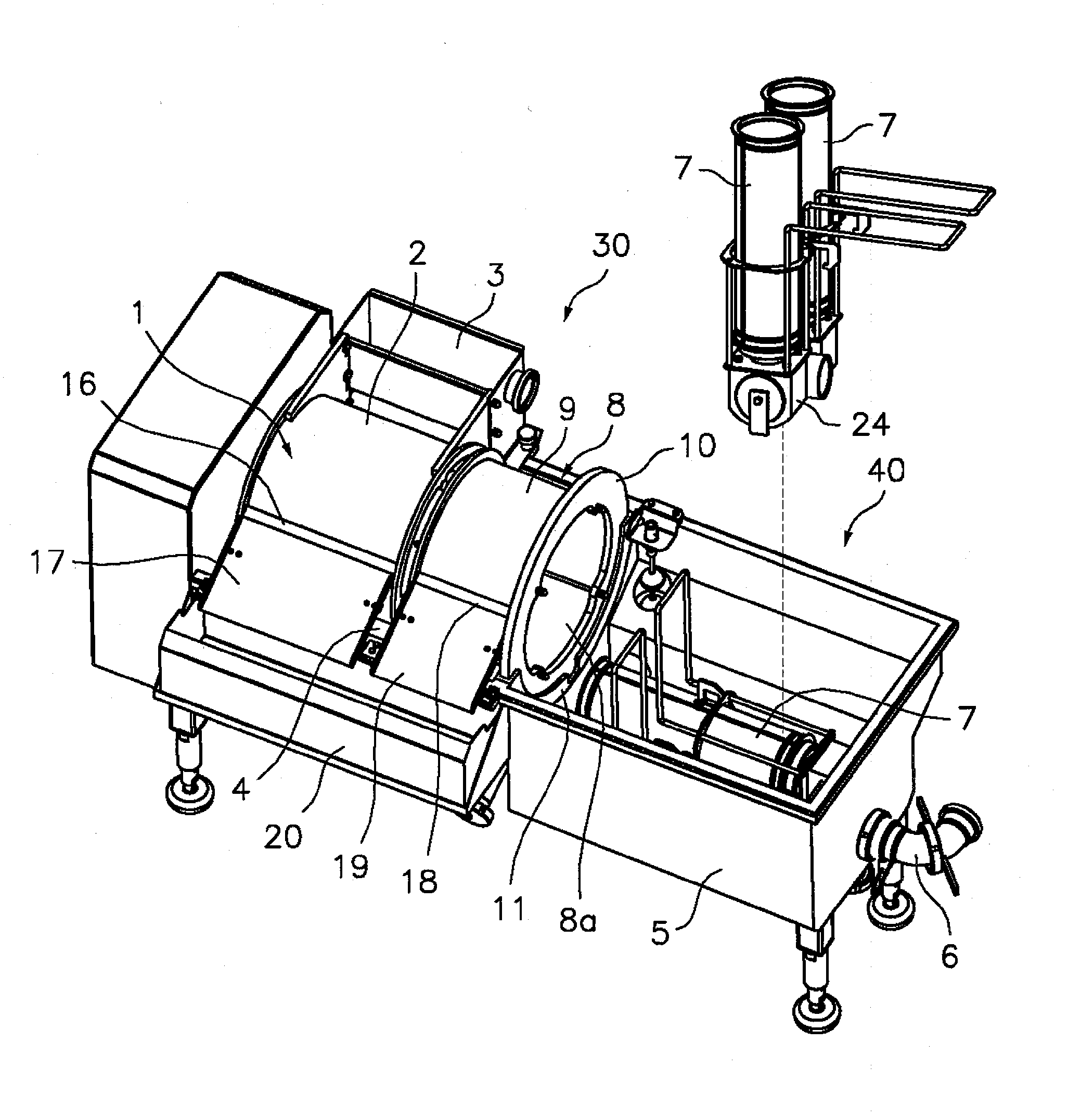

A brine filtering device, applicable to a meat product injection machine, including a pre-filtering unit with two pre-filtration drums arranged to rotate coaxially about a horizontal axis and a safety filtering unit with at least one safety filter sleeve submerged in a tank and connected to an outlet. An inlet hopper receives brine to be filtered and forces it into the first pre-filtration drum through an upper region of its filtering wall. The brine which exits a lower region of the first pre-filtration drum is collected in a tub, then it enters into the second pre-filtration drum through a lower region of its filtering wall, and next it is poured into tank through an open side wall of the second pre-filtration drum.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B01D Class
- 0 % this patent is cited more than
- 13 Age
