DEVICE AND METHOD FOR CEREBRAL LOCATION ASSISTANCE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Apr 12, 2012
app pub date -
Jan 15, 2010
filing date -
Jan 21, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

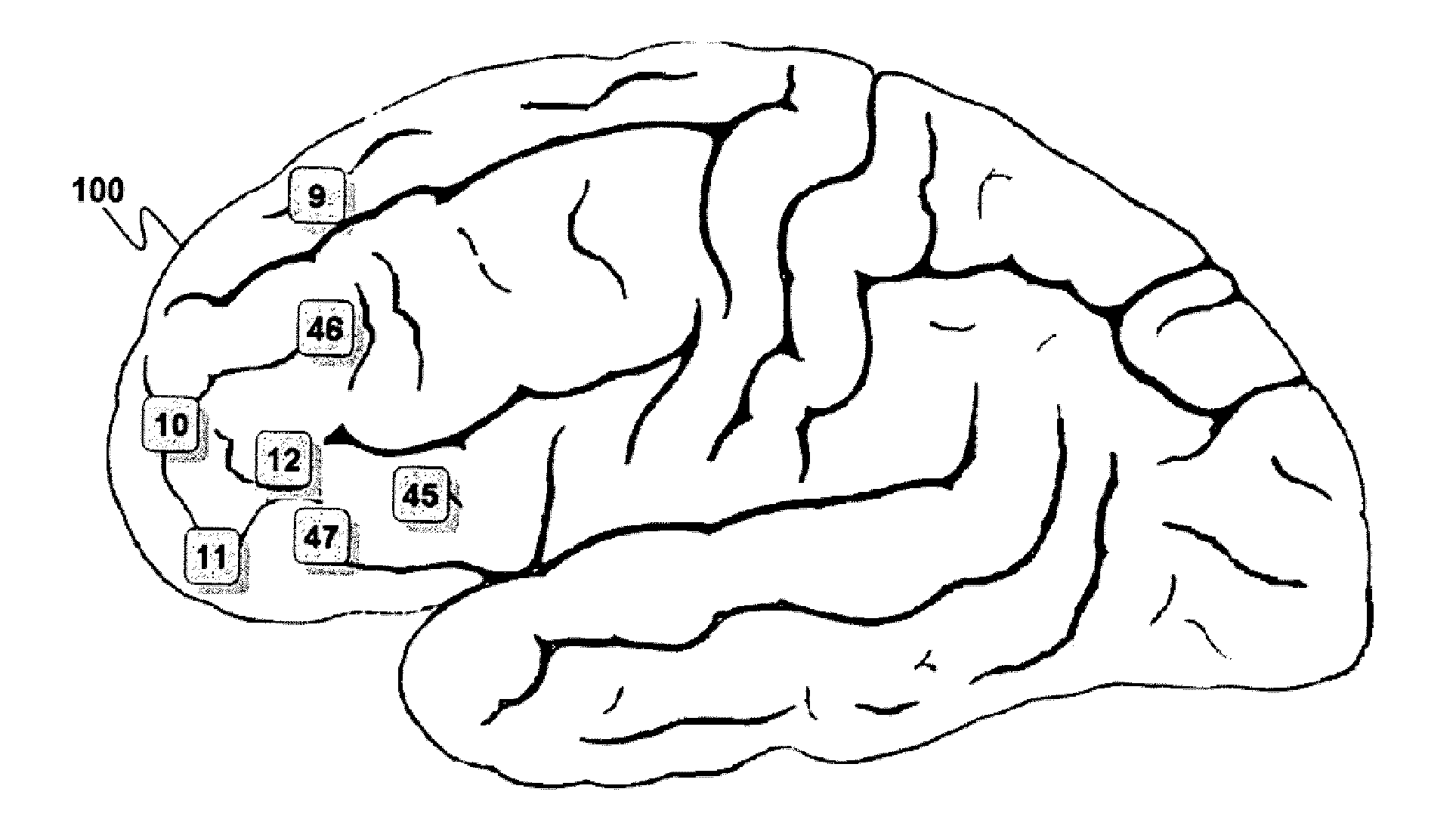

The invention relates to a device and to a method for cerebral location assistance. The device includes first and second memories. The first one is adapted for storing a generic mapping of the brain according to a first space location mode, as well as designation data corresponding to a target area in said mapping. The second one can receive and store, according to a second pace location mode, an operation image of the brain of an analysed subject acquired by medical imaging. The device also includes a non-rigid resetting tool adapted for establishing a conversion of the generic three-dimensional mapping towards the operation image, and a resampling tool for establishing a converted mapping with the converted designation data. A user's interface defines a visualization image that matches the operation image and the converted mapping while indicating an area that corresponds to the converted designation data.
First Claim
Other Claims data not available
