Highly Efficient Plamonic Devices, Molecule Detection Systems, and Methods of Making the Same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Apr 5, 2012
app pub date -
Oct 13, 2011
filing date -
May 7, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

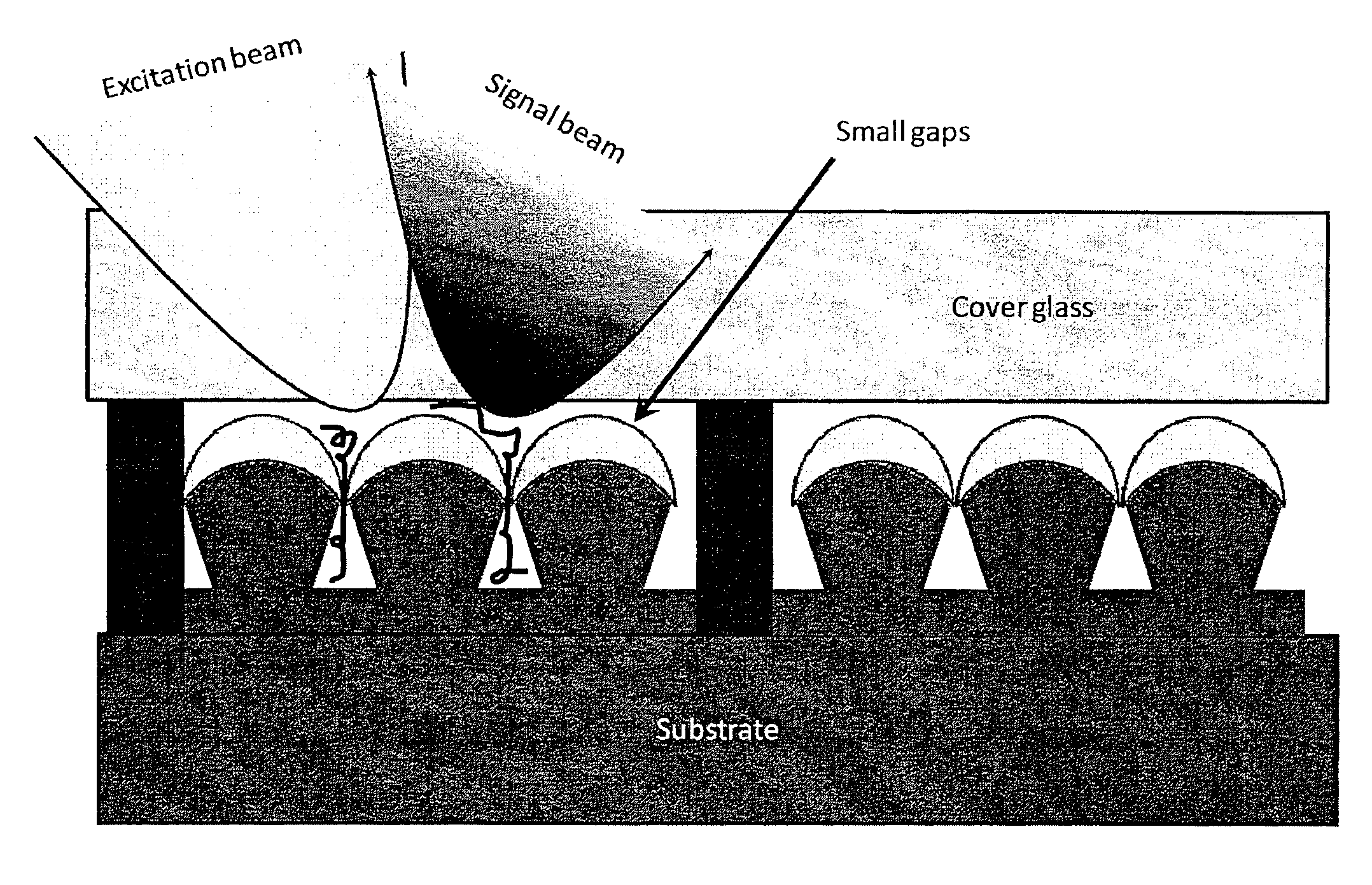

A plasmonic device has a plurality of nanostructures extending from a substrate. Each of the plurality of nanostructures preferably includes a core, a coating of intermediate material covering at least a portion of the core, and a coating of a plasmonic material. Devices are preferably manufactured using lithography to create the cores, and Plasma Enhanced Chemical Vapor Deposition (PECVD) to deposit the intermediate and/or plasmonic materials. Cores can be arranged in any suitable pattern, including one-dimensional or two-dimensional patterns. Devices can be used in airborne analyte detectors, in handheld roadside controlled substance detectors, in genome sequencing device, and in refraction detectors.
