Dental Implant System
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Mar 29, 2012
app pub date -
Sep 19, 2011
filing date -
Sep 29, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

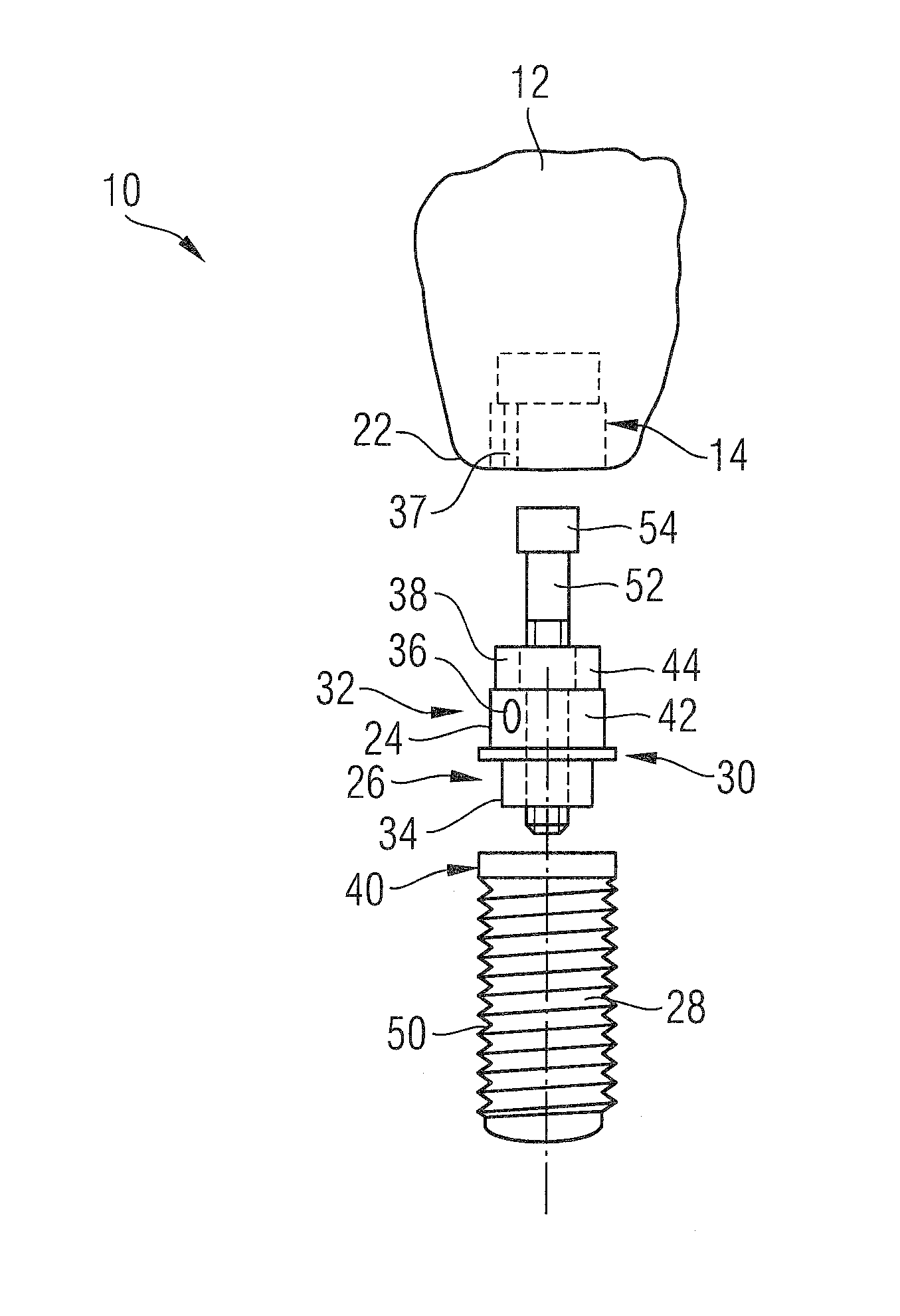

The invention relates to a dental implant system comprising a dental implant (28), a dental restoration part (12), a connector (24) with a central through-hole (58) and a circumferential, radially outwardly projecting collar (30) and with a screw (52) passing through the through-hole (58) by means of which at least the connector (24) may be fixedly connected with the dental implant (28), wherein the collar (30) comprises a first stop surface (26) that interacts with the dental implant (28), and a second stop surface (32) that interacts with an abutment (16) or a dental restoration part (12). The color of the collar (30), in particular the color of the connector (24), at least corresponds to a tooth color or a gingival color. The connector (24) at least partially respectively extends into the dental implant (28) and/or into the abutment (16), and substantially consists of the same material as the abutment (16) or consists of zirconium oxide.
