FABRIC CONNECTOR FOR SENSING OBJECT PROXIMITY
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Mar 22, 2012
app pub date -
Jun 8, 2009
filing date -
Jun 8, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

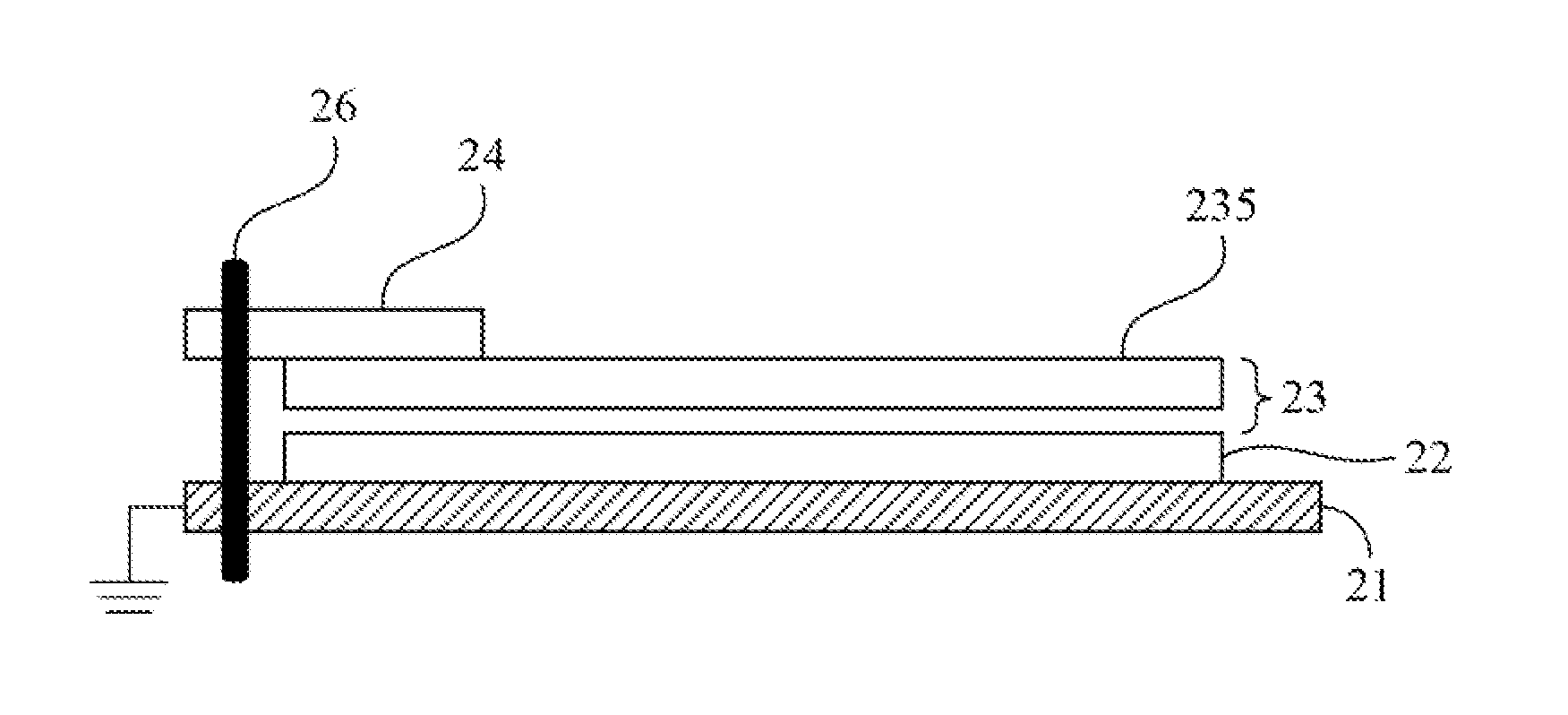

A fabric connector for sensing object proximity is provided. The fabric connector comprises a sensing layer (23), an insulating layer (22) and a yarn (26). The sensing layer has at least one connection region (233a, 233b, 233c, 233d) and a disconnection region. The at least one connection region (233a, 233b, 233c, 233d) has a capacitance value and is formed with conductive fabric. The insulation layer (22) which is formed with insulating fabric is disposed below the sensing layer (23). The yarn (26) is formed with conductive material and is configured to electrically connect to the at least one connection region (233a, 233b, 233c, 233d) of the sensing layer (23) and a sensor (25). The sensor (25) senses a variation in the capacitance value of the at least one connection region (233a, 233b, 233c, 233d) in accordance with object proximity.
First Claim
Other Claims data not available
