Collar for Animals, in Particular Dogs, with a Click Lock
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Mar 22, 2012
app pub date -
Mar 23, 2010
filing date -
May 11, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

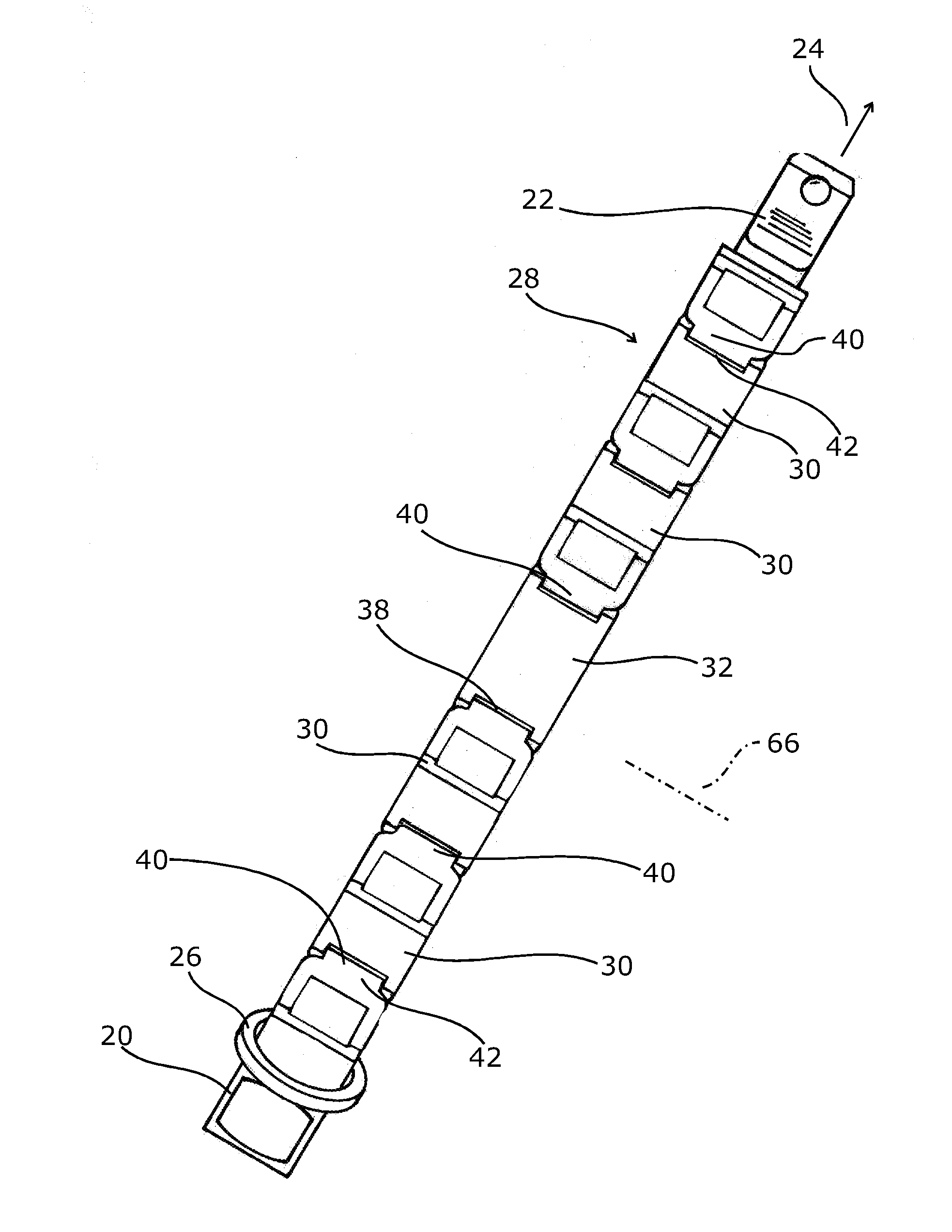

The collar for animals, in particular dogs, has a fastener which is designed as a click lock and has a housing (20) and a locking tongue (22). The housing (20) and locking tongue (22) can be plugged in in a plug-in direction (24). The housing (20) and the locking tongue (22) each have an end piece (46). A lead can be releasably fastened to a lead ring (26). A neck part (28) can be connected to the fastener to form a ring; said neck part has two connecting regions (42), each of which is connected to an end piece (46). A bearing opening (64) is formed in the fastener, the bearing opening having an axis line which runs transversely with respect to the plug-in direction (24) and substantially parallel to a central axis (66) of the collar. The lead ring (26) is held pivotably in the bearing opening (64).
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- A01K Class
- 5.48 % this patent is cited more than
- 13 Age
