Annular Sealing Device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Sep 8, 2011
filing date -
Sep 9, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

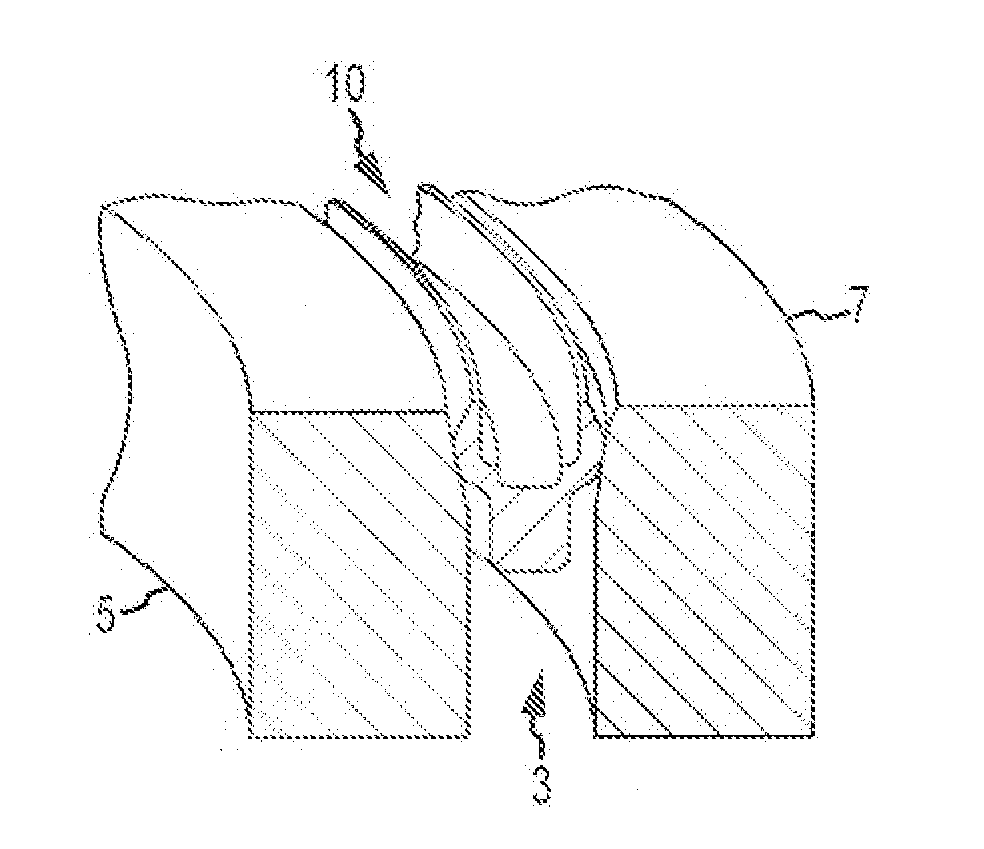

An annular seal comprising a metallic ring having a cross section. The cross section includes an axially extending body portion having a radial width and an axial height. A spaced apart pair of sealing arms extend axially from the body portion, wherein each sealing arm includes a radially opposed arcuate sealing surface. The arcuate sealing surface may be convex, for example. The spaced apart pair of sealing arms are spaced apart a radial distance greater than the radial width of the body portion. A sealing system comprises a plurality of interconnected metallic rings wherein the body portion engages the sealing arms of an adjacent metallic ring.
First Claim
Other Claims data not available
