Method for generating corona discharges in two combustion chambers of a combustion engine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 4, 2013
Grant Date -
Mar 8, 2012
app pub date -
Sep 1, 2011
filing date -
Sep 4, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

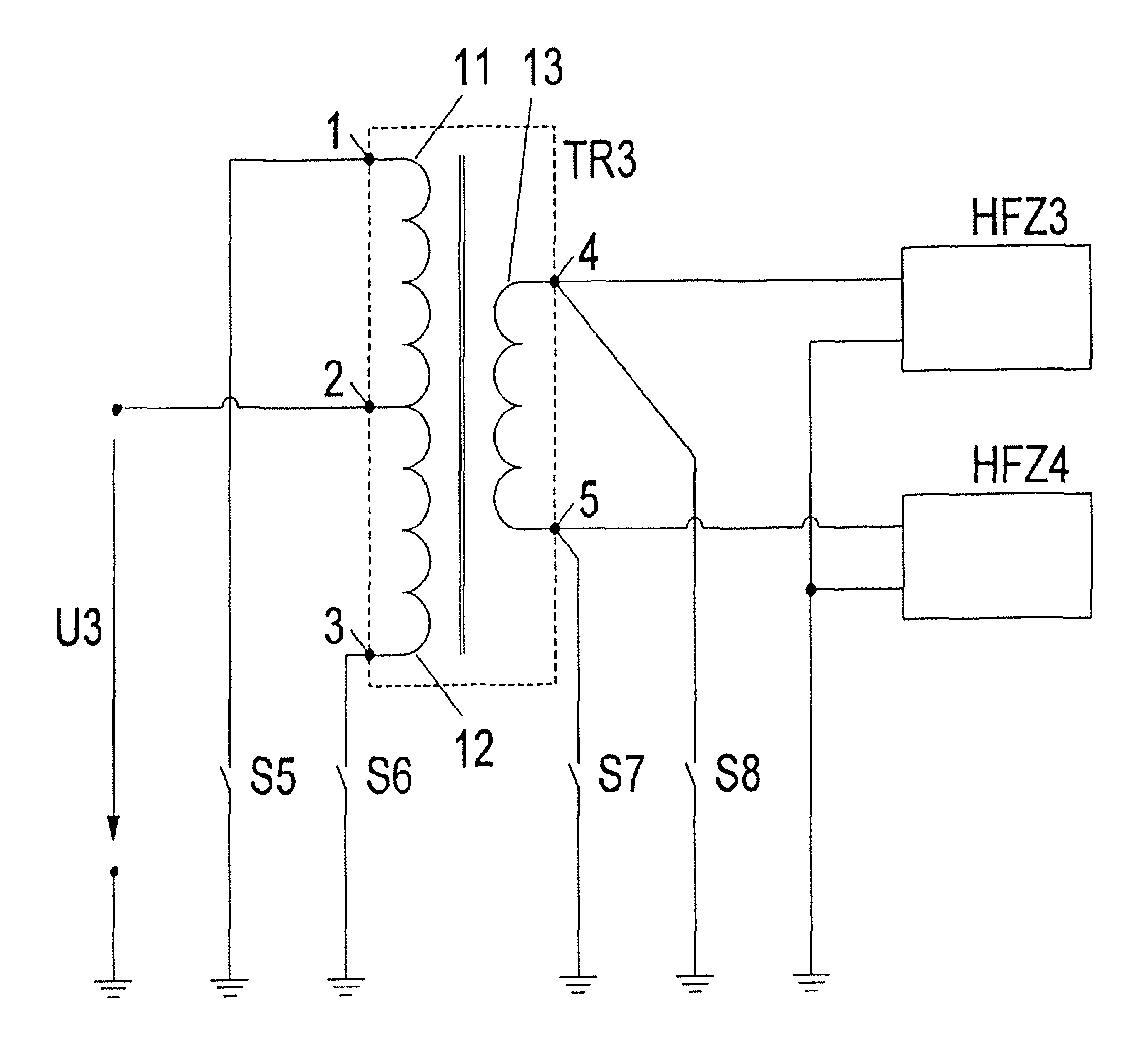

The invention describes a method for generating corona discharges in two combustion chambers of a combustion engine, into each of which a high-frequency igniter (HFZ3, HFZ4) protrudes which is part of a high-frequency resonant circuit, by providing only one single transformer (TR4), which has a primary side and a secondary side, at least one primary winding on the primary side and a secondary winding on the secondary side, connecting the secondary winding of the transformer (TR3, TR4) to both resonant circuits and feeding into both resonant circuits the high frequency alternate current flowing through the secondary winding.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- F02P Class
- 145 Applications Filed
- 124 Patents Issued To-Date
- 85.52 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F02P Class
- 4.21 % this patent is cited more than
- 12 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 4, 2024 |
