Burner of Gas Device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Mar 1, 2012
app pub date -
Jul 8, 2011
filing date -
Sep 1, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

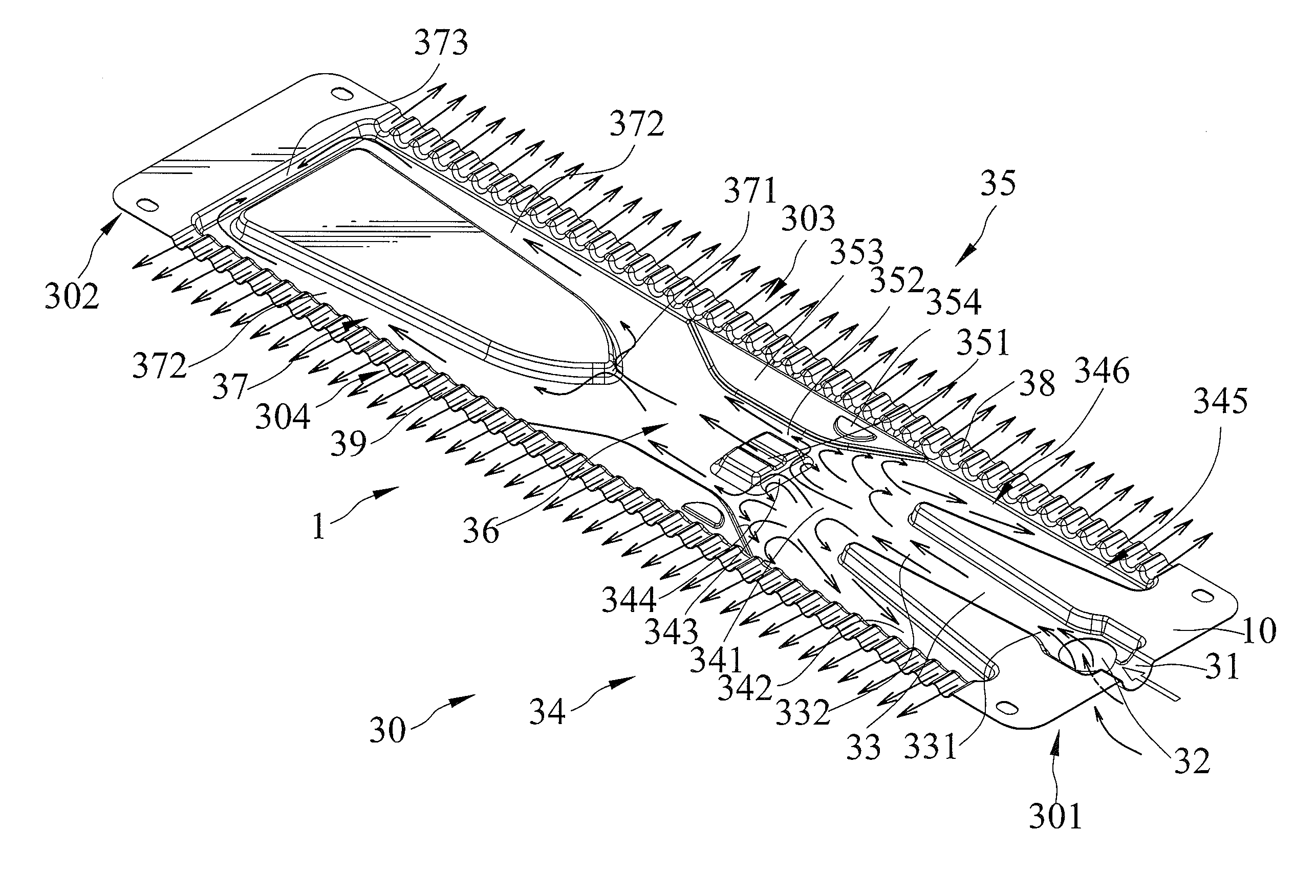

A burner of a gas device includes a first plate, a second plate engaged with the first plate, and a chamber formed by the first and second plates. The chamber includes first and second distal ends disposed at two opposite ends, and first and second lateral sides disposed at two opposite sides. The chamber further includes a gas inlet hole and an air inlet hole, which are disposed at the first distal end. Furthermore, the chamber includes a first channel connecting with the gas inlet hole and the air inlet hole and includes a first compartment connecting with the first channel. Moreover, the chamber includes a first plurality of flame exit pores and a second plurality of flame exit pores disposed at the first and second lateral sides respectively. The first and second plurality of flame exit pores connect with the first compartment.
First Claim
Other Claims data not available
