ELECTRONICALLY CONTROLLED VALVE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Feb 23, 2012
app pub date -
Nov 15, 2010
filing date -
Nov 13, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

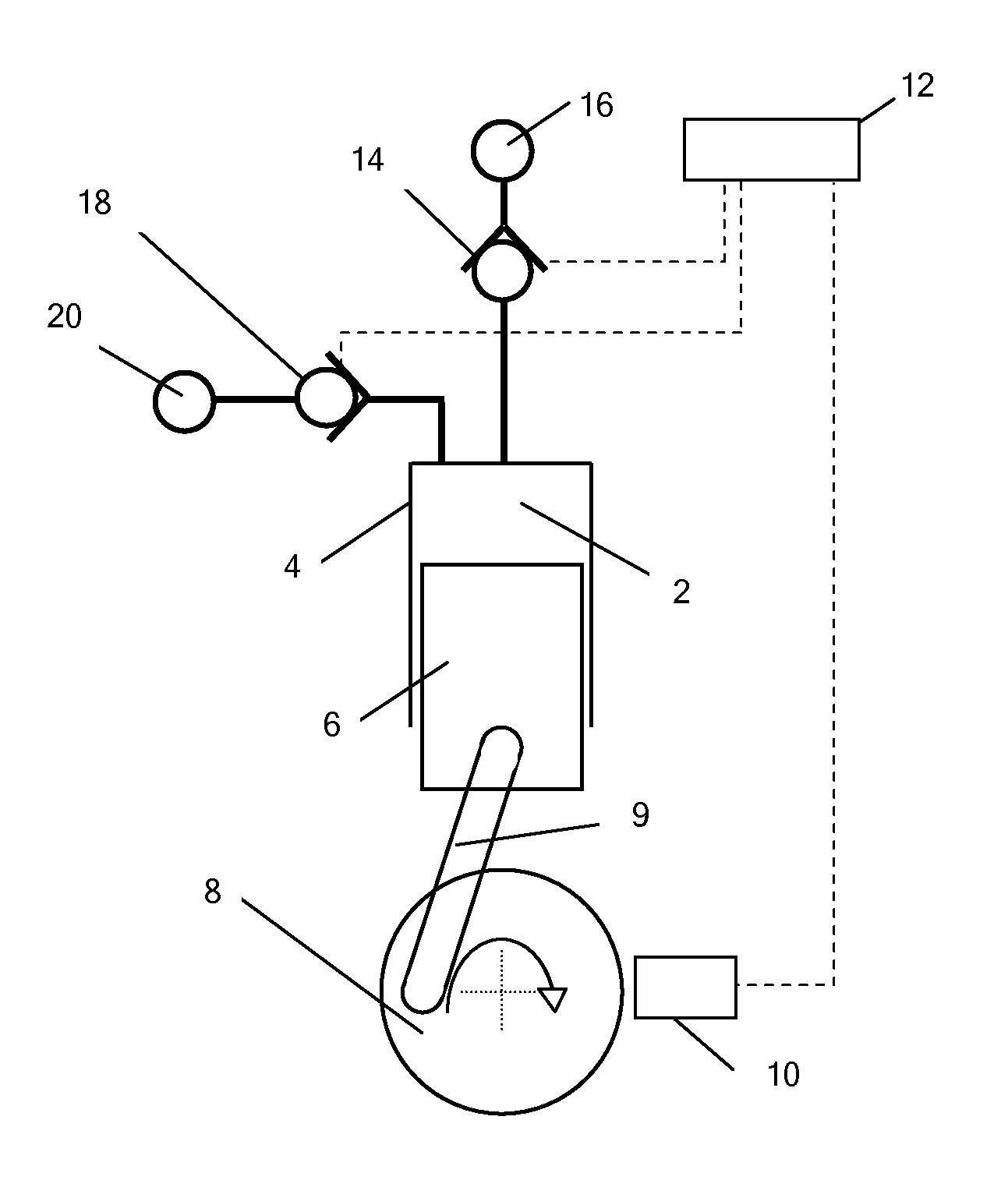

An electronically controlled valve includes a valve member moveable between a first position and a second position. A valve member moving mechanism is operable to receive energy from a fluid-working machine crankshaft, or other rotating shaft, and to provide a valve member moving force to urge the valve member from the first position to the second position using the received energy. Thus, the energy used for movement of the valve against a pressure gradient is derived from the crankshaft. Energy received from the crankshaft can be stored and used subsequently to urge the valve member from the first position, allowing the valve to function despite timing differences between the availability of energy from the crankshaft and the requirement for energy to move the valve member.
First Claim
Other Claims data not available
