Paint brush extension fastener
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 5, 2013
Grant Date -
Feb 16, 2012
app pub date -
Aug 15, 2011
filing date -
Aug 15, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

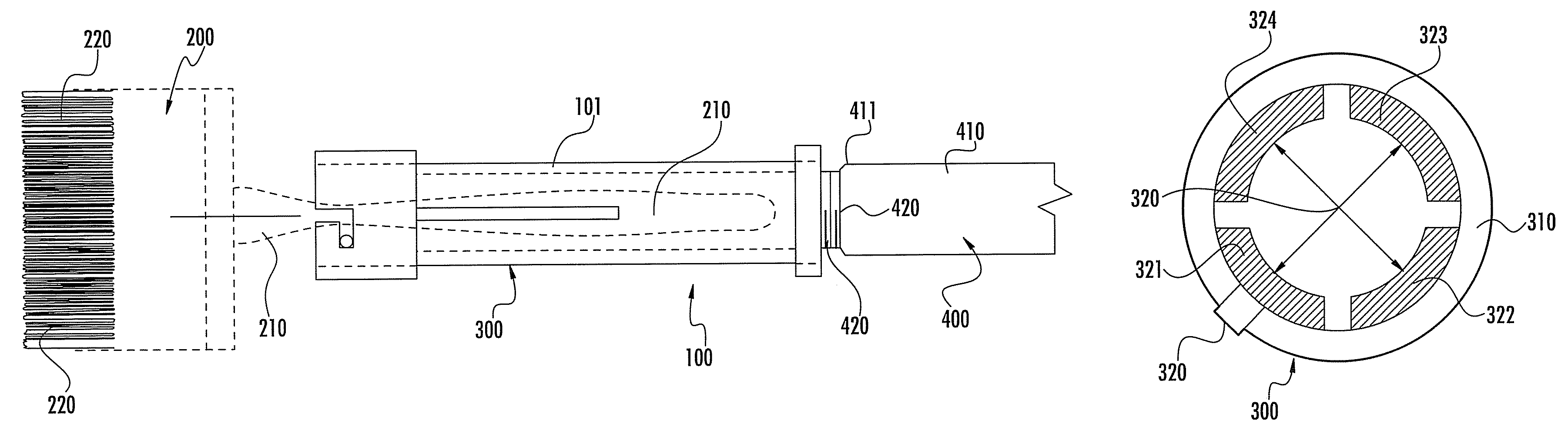

A paintbrush holder assembly affixes a standard paintbrush to a holder that in turn engages an extension rod. The holder includes a hollow tubular shaft with a circular cross section that includes a first end, a middle portion and a second end. Three or more semi-circular fasteners attach to the middle portion of the tubular shaft via flex points. One fastener includes a lock pin to engage a locking shaft. The locking shaft has an “L” shaped lock track having a sufficient size and dimension to fit about the tubular shaft and capable of sliding from the second end to a point proximate the first end. The extension rod connects to the holder via male threads which secure to female threads located at the second end of the tubular shaft.
First Claim
Other Claims data not available
