Automatic meter reading system and method for underground distribution line using wired/wireless communication
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 2, 2014
Grant Date -
Feb 2, 2012
app pub date -
Jul 29, 2011
filing date -
Jul 29, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

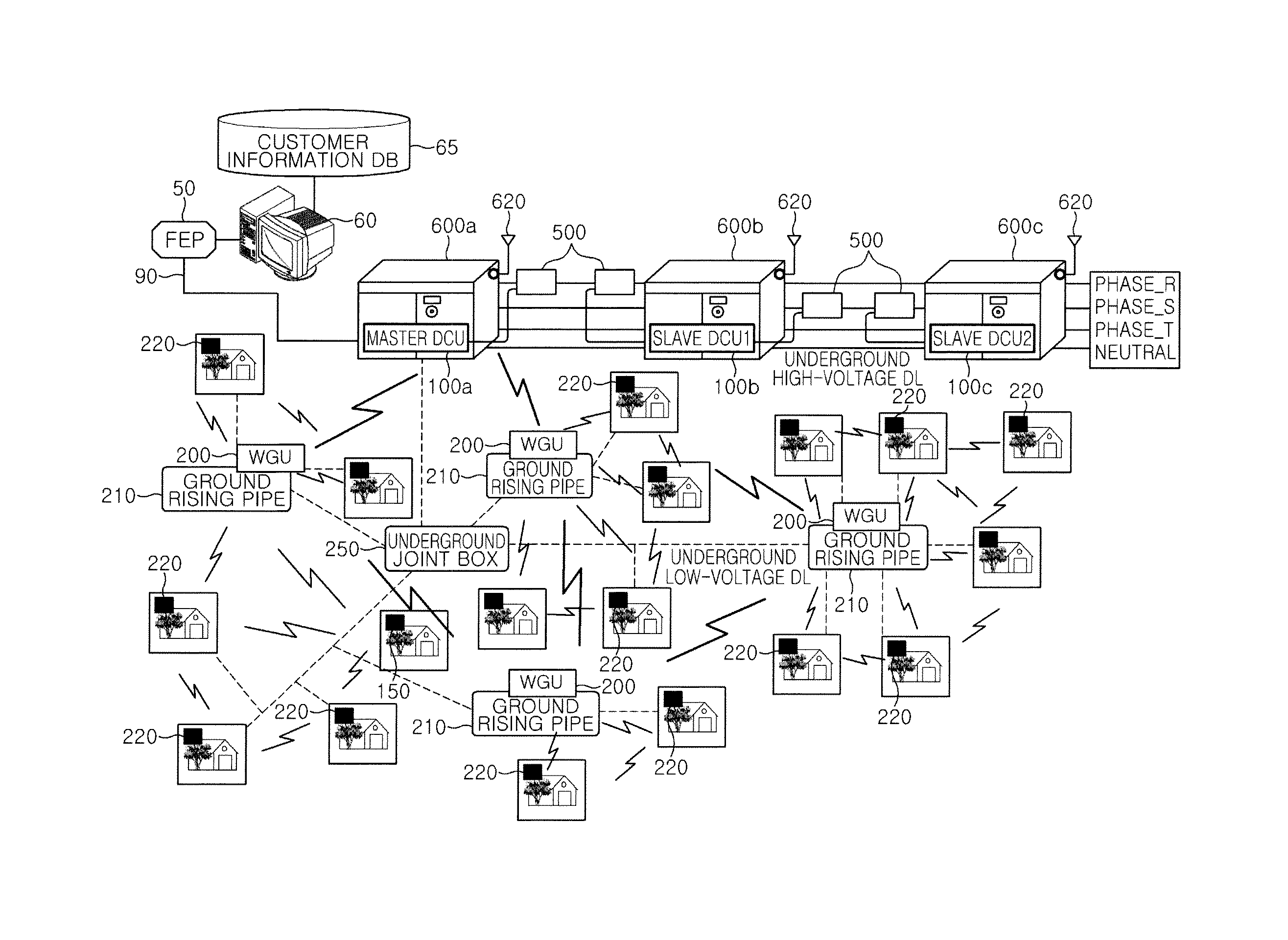

Disclosed herein is an automatic meter reading system for an underground distribution line using wired/wireless communication. The system includes at least one Data Concentration Unit (DCU), at least one Wireless Gathering Unit (WGU), and at least one wireless communication modem. The DCU is installed in a ground transformer, and sends meter reading data to an underground high-voltage distribution line (DL) using a Frequency Division Duplex (FDD) power line communication repeating method. The WGU is installed on a ground rising pipe or at a multi-consumer lead-in wire, and sets up a higher wireless mesh network and a lower wireless mesh network. The wireless communication modem sets up the lower wireless mesh network along with the WGU and the wireless communication modems, gathers the meter reading data, stores the gathered meter reading data, and transfers the stored meter reading data to the DCU through the WGU.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- G08B Class
- 1871 Applications Filed
- 1487 Patents Issued To-Date
- 79.48 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G08B Class
- 4.99 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 2, 2026 |
