METHODS OF TEACHING BONDING LOCATIONS AND INSPECTING WIRE LOOPS ON A WIRE BONDING MACHINE, AND APPARATUSES FOR PERFORMING THE SAME
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Feb 29, 2008
filing date -
Feb 29, 2008
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

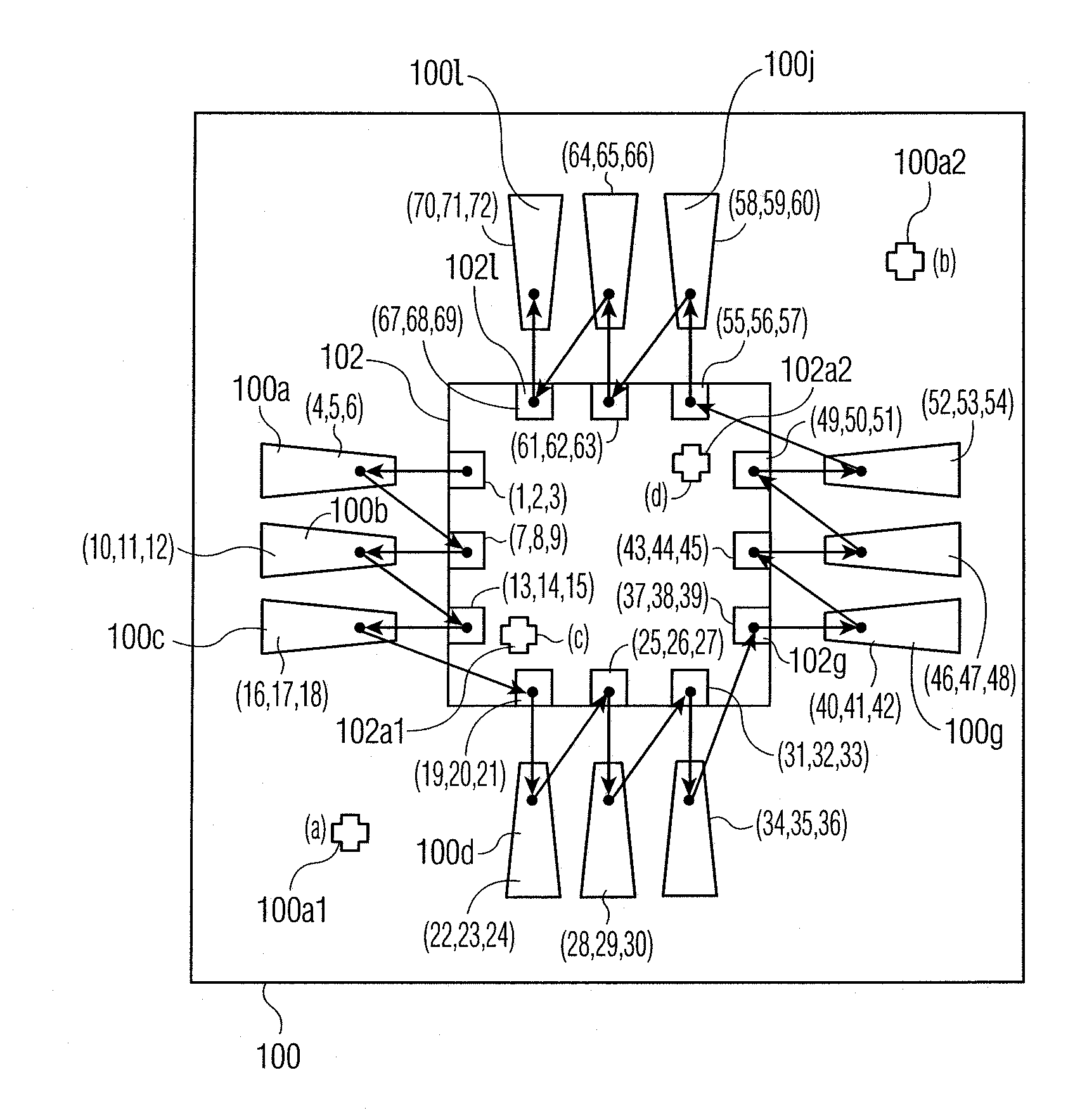

A method of teaching bonding locations of a semiconductor device on a wire bonding machine is provided. The method includes (1) providing the wire bonding machine with position data for (a) bonding locations of a first component of the semiconductor device, and (b) bonding locations of a second component of the semiconductor device; and (2) teaching the bonding locations of the first component of the semiconductor device and the second component of the semiconductor device using a pattern recognition system of the wire bonding machine to obtain more accurate position data for at least a portion of the bonding locations of the first component and the second component. The teaching step is conducted by teaching the bonding locations in the order in which they are configured to be wire bonded on the wire bonding machine.
First Claim
Other Claims data not available
