OSCILLATING SPRAY TIP FOR ORAL IRRIGATOR
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 26, 2012
app pub date -
Jul 21, 2011
filing date -
Jul 23, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

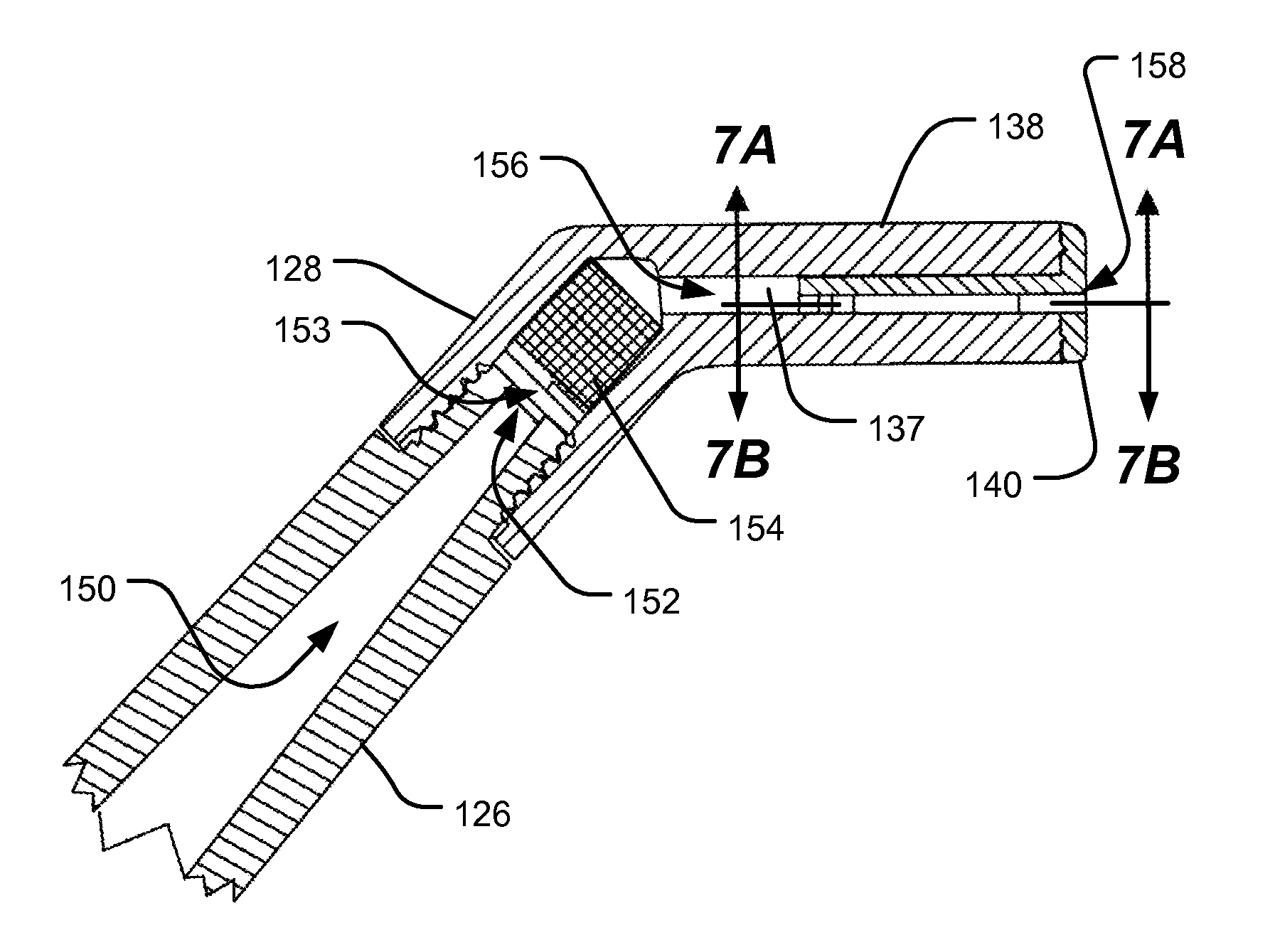

An oral irrigator tip defines a main fluid passage and first and second side fluid passages on a opposite sides of the main fluid passage. Each side fluid passage has an inlet and an outlet both in fluid communication with the main fluid passage. First and second island structures may be formed between the main fluid passage and respective side fluid passages. Fluid flow through the main fluid passage is drawn to sidewalls of the islands due to the Coanda effect. At least a portion of the fluid stream entering the main fluid passage is diverted through the first and second side fluid passages to create feedback loops that push the fluid flow through the main fluid passage alternately from side to side. An oscillating fluid stream is thereby delivered from the oral irrigator tip.
First Claim
Other Claims data not available
