FELLER DEVICE FOR FELLING AND DELIMBING OF TREE TRUNKS, AND A DELIMBING BLADE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 26, 2012
app pub date -
Jan 15, 2010
filing date -
Jan 16, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

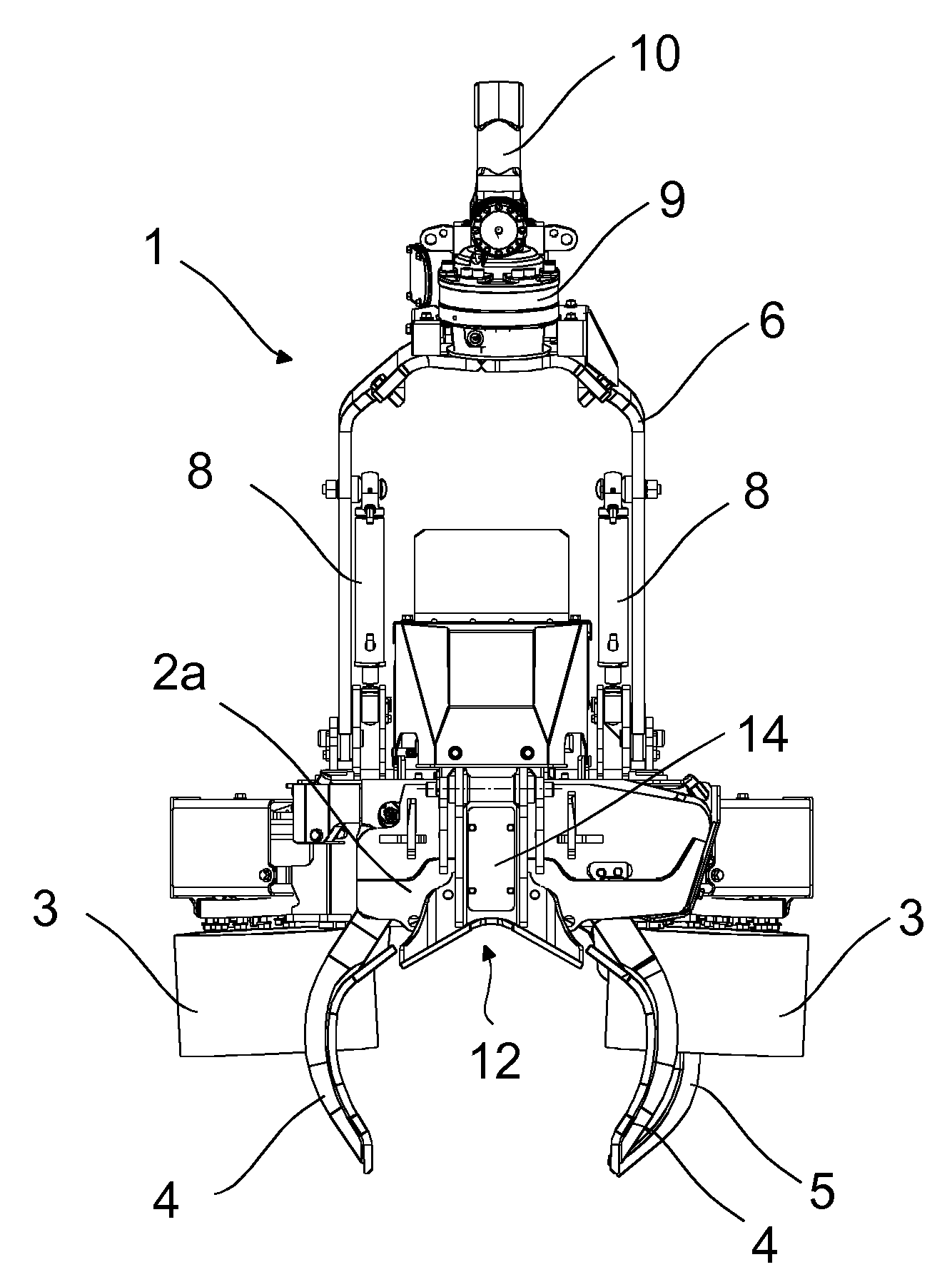

A feller device for felling and delimbing of tree trunks, as well as a delimbing blade device for delimbing of tree trunks, is disclosed. The delimbing blade device comprises: a delimbing blade having a cutting edge for delimbing of a tree trunk; a first joint, by means of which the delimbing blade can be connected to the felling device in a rotatable manner; a cylinder actuator, by means of which the delimbing blade can be moved into at least two different positions; and a second joint, by means of which the cylinder actuator is coupled to the delimbing blade. In a first example, the cylinder actuator can be placed almost parallel to a line extending via the first joint and the second joint so that the cylinder actuator and a third joint belonging to the same cylinder actuator for connection are placed in the area between the first and the second joint. In a second example, the cylinder actuator is coupled to the front surface of the felling device so that all the said joints are placed on the same side of the front surface.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| FI | B | FI121135 | Jan 16, 2009 |
| RU | C2 | RU2513415 | Jan 15, 2010 |
| WO | A1 | WO2010081937 | Jan 15, 2010 |
| EP | B1 | EP2387303 | Jan 15, 2010 |
| CA | A1 | CA2748905 | Jan 15, 2010 |
International Classification(s)
- 2010 Application Filing Year
- A01G Class
- 416 Applications Filed
- 218 Patents Issued To-Date
- 52.41 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- A01G Class
- 9.77 % this patent is cited more than
- 13 Age
