MOCVD REACTOR HAVING A CEILING PANEL COUPLED LOCALLY DIFFERENTLY TO A HEAT DISSIPATION MEMBER
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 5, 2012
app pub date -
Mar 10, 2010
filing date -
Mar 16, 2009
priority date (Note) -
Abandoned
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

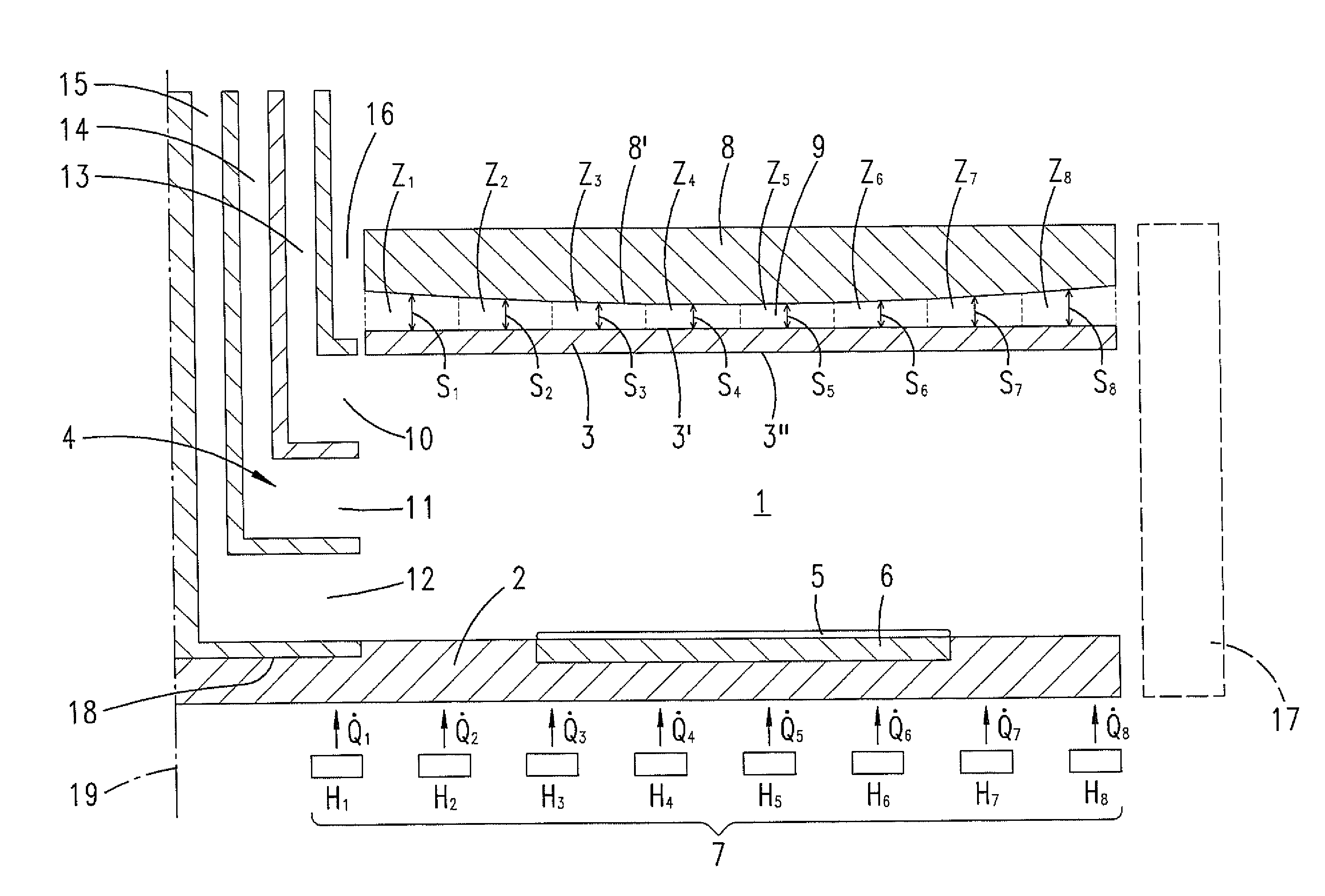

The invention relates to a device for depositing at least one, in particular crystalline, layer on at least one substrate (5), having a susceptor (2) for accommodating the at least one substrate (5), the susceptor forming the floor of a process chamber (1), having a cover plate (3) which forms the ceiling of the process chamber (1), and having a gas inlet element (4) for introducing process gases, which decompose into the layer-forming components in the process chamber as the result of heat input, and a carrier gas, wherein below the susceptor (2) a multiplicity of heating zones (H.sub.1-H.sub.8) are situated next to one another, by means of which in particular different heat outputs (Q.sub.1, Q.sub.2) are introduced into the susceptor (2) in order to heat the susceptor surface facing the process chamber (1) and the gas located inside the process chamber (1), a heat dissipation element (8) which is thermally coupled to the cover plate (3) being provided above the cover plate (3) in order to dissipate the heat transported from the susceptor (2) to the cover plate (3). To increase the crystal quality and the efficiency of the deposition process, it is proposed that the heat-conveying coupling between the cover plate (3) and the heat dissipation element (8) is different at different locations, heat-conveying coupling zones (Z.sub.1-Z.sub.8) having high heat-conveying capability corresponding in location to heating zones (H.sub.1-H.sub.8) of high heat output (Q.sub.1, Q.sub.2).
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
AIXTRON SE | GERMAN HERZOGENRATH HERZOGENRATH NORTH RHINE-WESTPHALIA |
International Classification(s)

- 2010 Application Filing Year
- C23C Class
- 1580 Applications Filed
- 1036 Patents Issued To-Date
- 65.57 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Brien, Daniel | Aachen, DE | 8 | 23 |
# of filed Patents : 8 Total Citations : 23 | |||
Franken, Walter | Eschwiler, DE | 16 | 285 |
# of filed Patents : 16 Total Citations : 285 | |||
Püsche, Roland | Aachen, DE | 2 | 9 |
# of filed Patents : 2 Total Citations : 9 |
