ANNULAR MULTI-ROTOR DOUBLE-WALLED TURBINE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Nov 12, 2009
filing date -
Nov 27, 2008
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

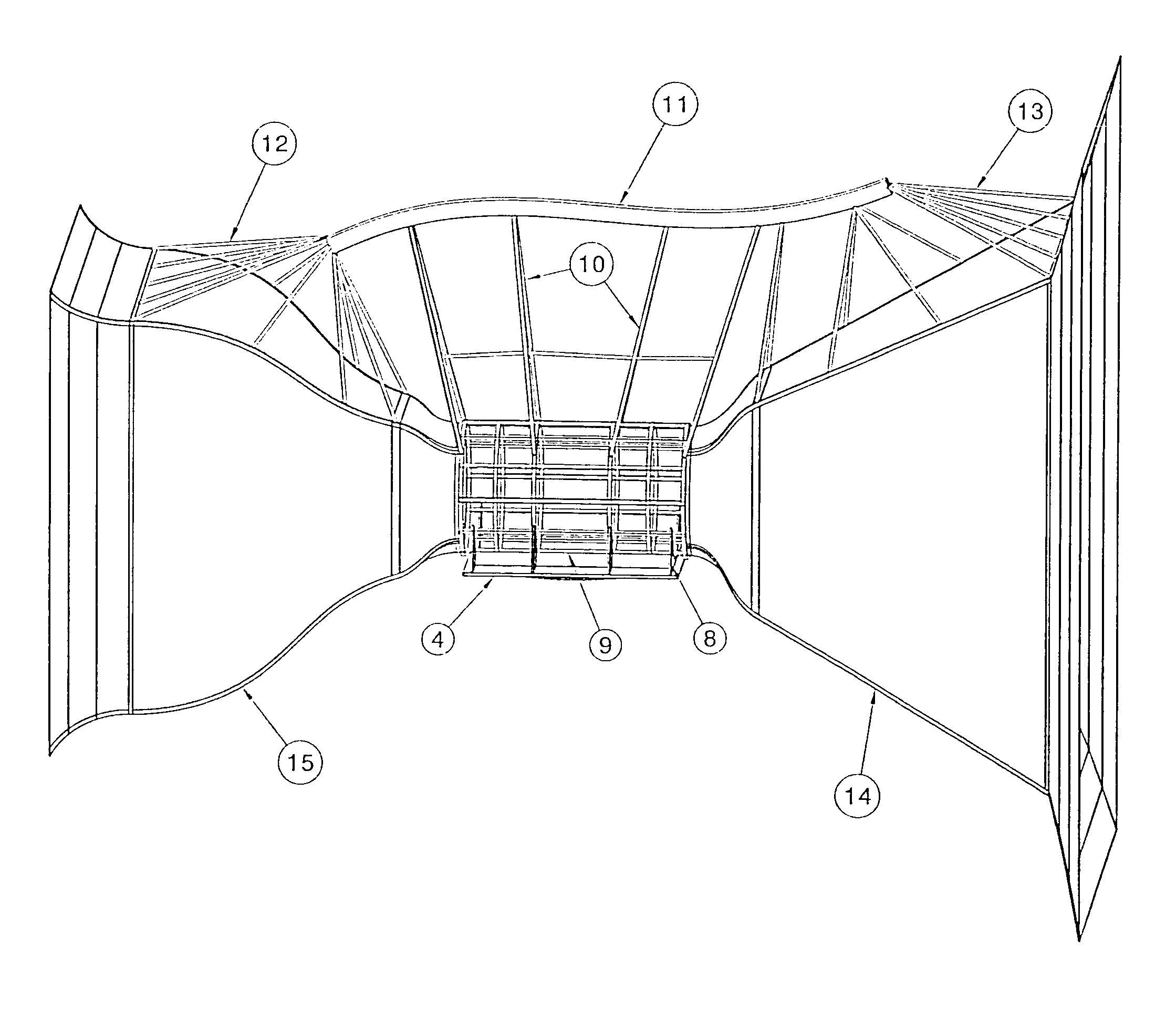

An annular single or multi-rotor double-walled turbine. The turbine includes an outer shroud, an inner shroud, and a plurality of driveshafts. The turbine also includes a plurality of rotors coaxially attached to the plurality of driveshafts at spaced intervals. Each of the plurality of rotors comprises a plurality of turbine blades extending between the inner and outer shrouds. Each of the plurality of turbine blades comprises a face. The inner shroud and the outer shroud form a continuous channel for directing a fluid entering the turbine towards the faces of the turbine blades and for directing fluid discharged from a first of the plurality of rotors to the remaining rotors. The channel greatly improves efficiency of power extraction from all augmented and non-augmented fluid streams.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 12 Citation Count
- F01D Class
- 67.19 % this patent is cited more than
- 13 Age
