SELF-CONTAINED HAND HELD YOKE-CONNECTED DEVICE FOR DISPENSNG A TWO-PART ADHESIVE AEROSOL
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 5, 2012
app pub date -
Jun 30, 2010
filing date -
Jun 30, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

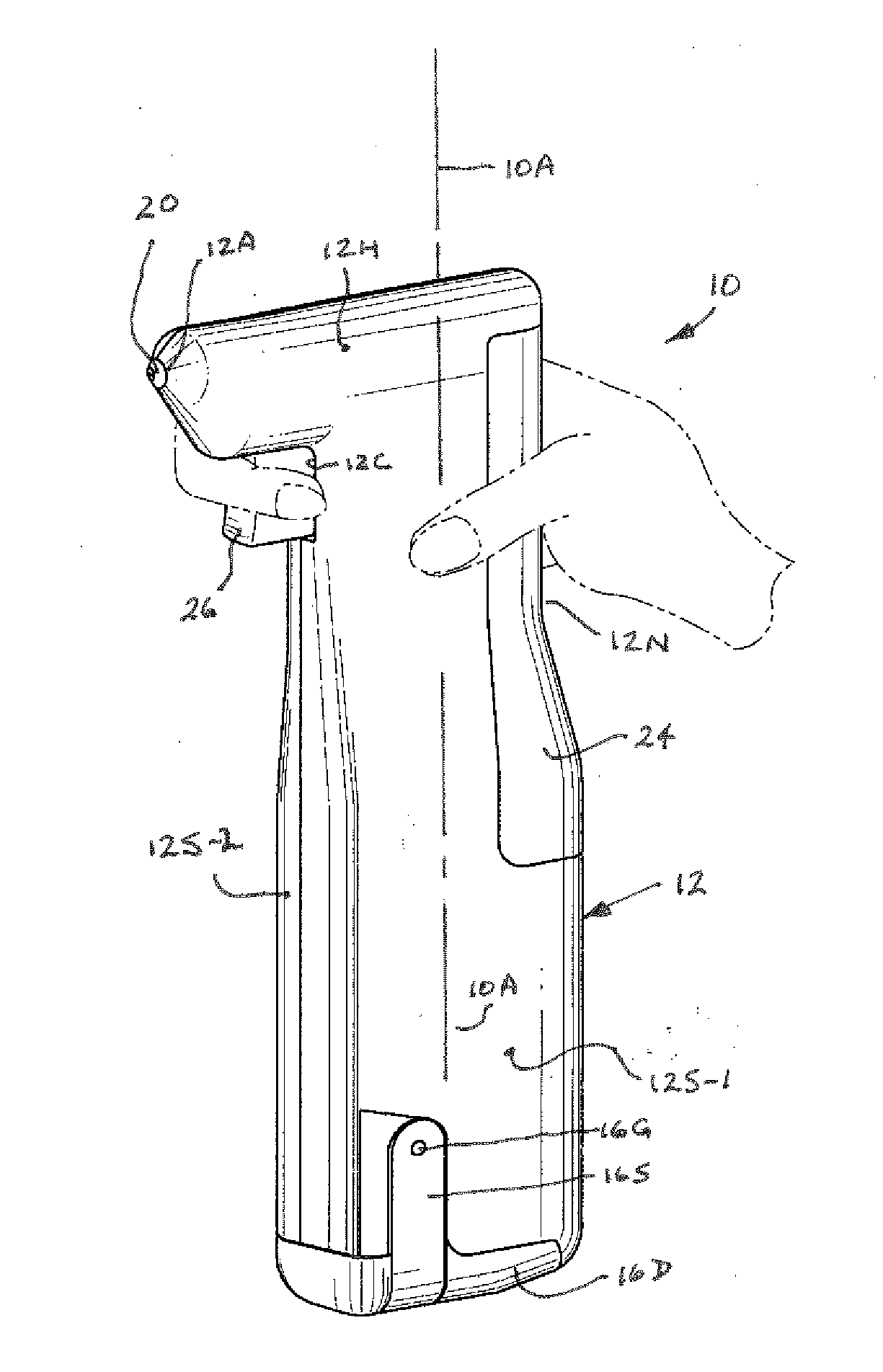

A self-contained, hand-held spray dispensing device includes an internal source of pressurized fluid that exerts a motive force on a pair of liquid ejecting elements to cause each to eject a liquid into a discharge line. The liquids remain separated until each exits its discharge port. A pressurized fluid is directed over the outlet ends of the discharge line beginning before a flow interrupter in the discharge line is opened to permit flow therethrough and ceasing after liquid flow is terminated. The pressurized fluid flow over the outlet of the discharge line aerosolizes liquids emanating from the outlet ends. The liquid ejecting element is connected to a force transmitting yoke. The yoke responds to pressurized fluid from the source to generate the motive force on the ejecting element.
First Claim
Other Claims data not available
