OPTIMUM STRUCTURE FOR CHARGE PUMP CIRCUIT WITH BIPOLAR OUTPUT
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Sep 1, 2011
filing date -
May 1, 2008
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

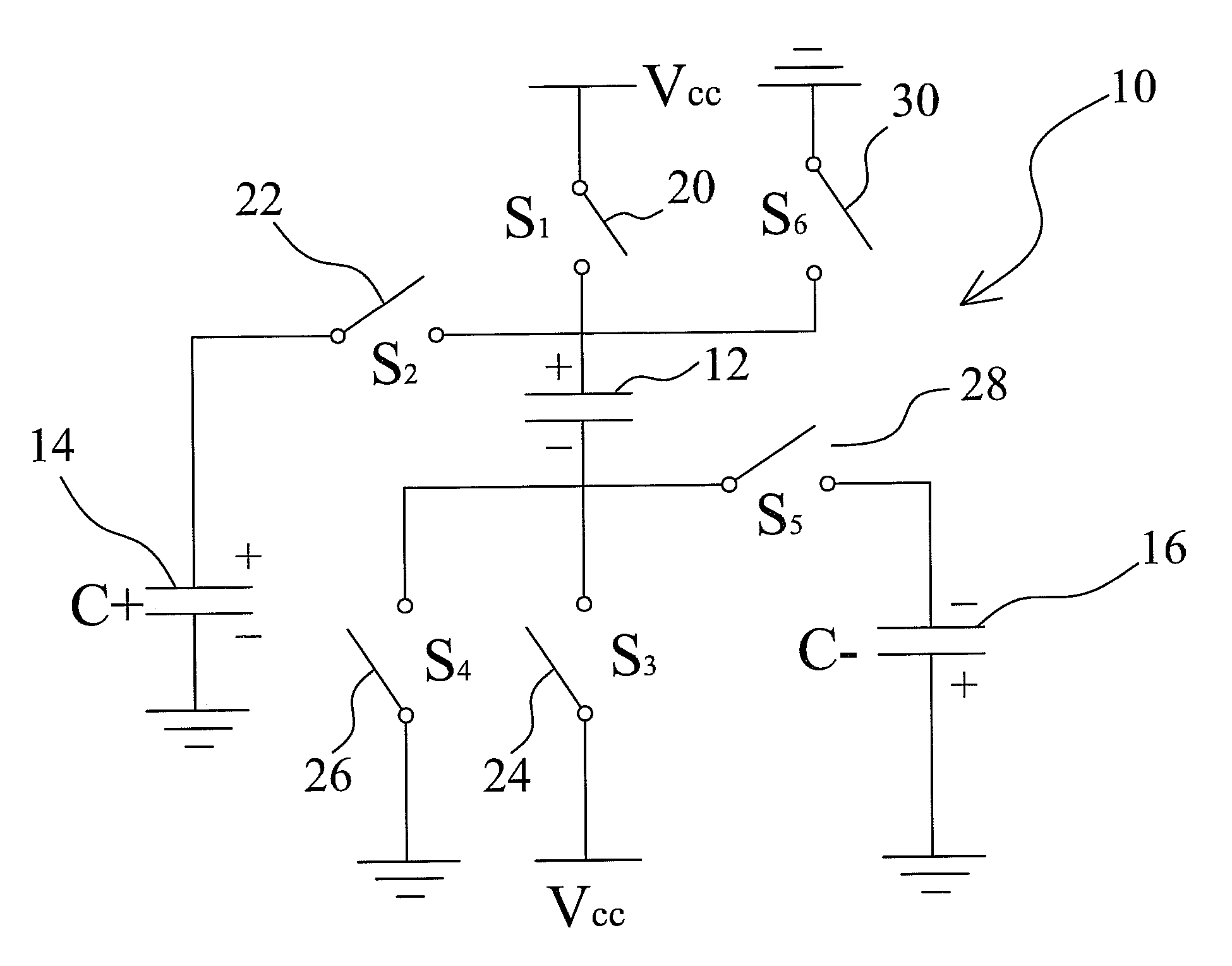

A charge pump circuit with bipolar output comprises six switches, one transfer capacitor, two storage capacitors and a power source. The gate of the switches have been provided an input voltage collocated with clock signals to control the turn-on time of the switches in order to adjust the level of the output voltage and thus produce bipolar voltage output. The clock signals have been selectively driven by a four-phase signal so as to produce bipolar voltages with magnitudes higher than the input voltage with minimum number of switches and capacitors and also accomplish the highest efficiency.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- H02M Class
- 2.80 % this patent is cited more than
- 14 Age
