STATOR AND TORQUE CONVERTER
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 22, 2011
app pub date -
Feb 4, 2010
filing date -
Feb 17, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

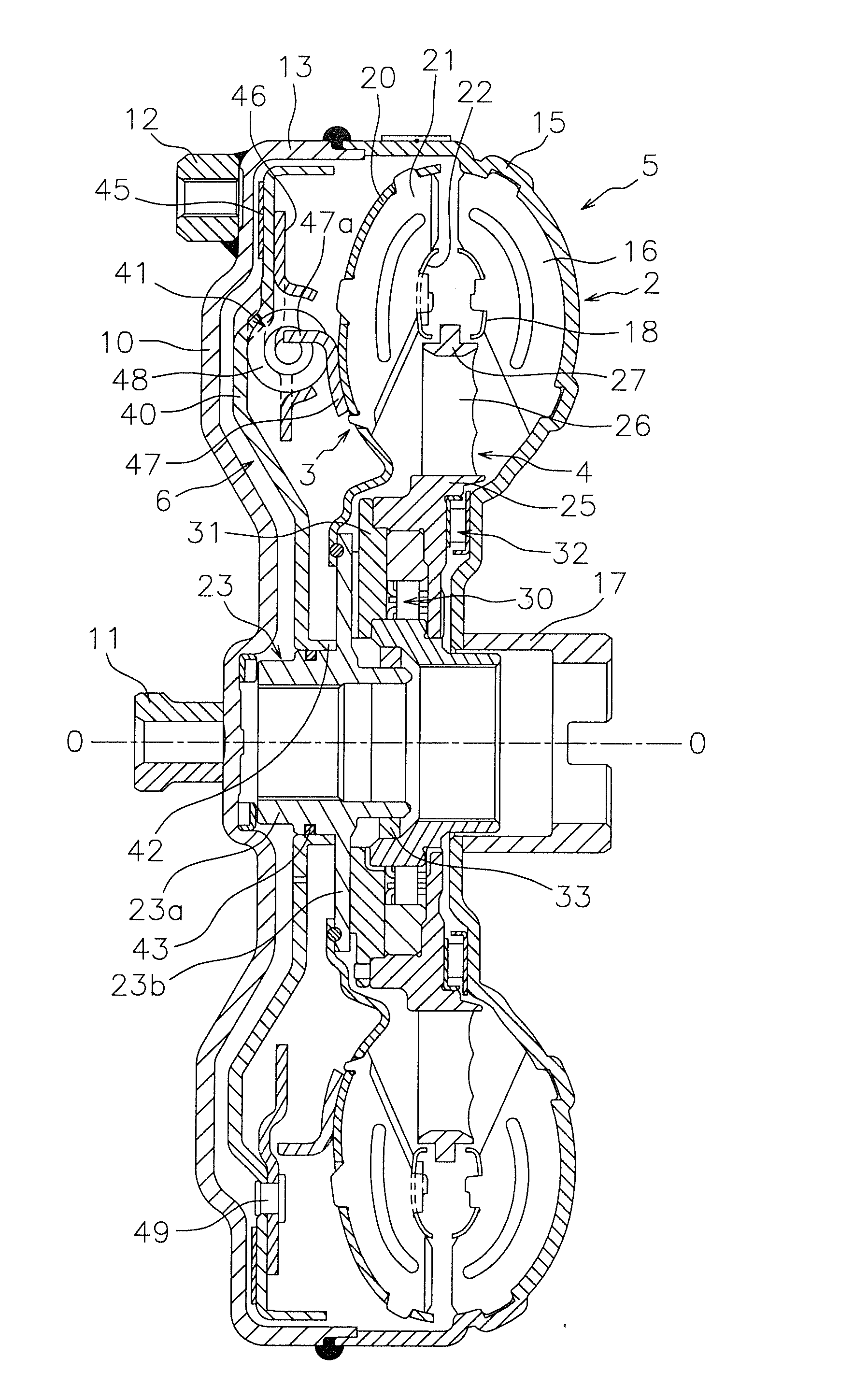

It is an object of the present invention to inhibit generation of a vortex in the position where operating oil separates from a stator and to increase a capacity coefficient by allowing the operating oil to efficiently flow from a turbine to an impeller. A torque converter stator of the present invention is configured to regulate the flow of operating oil returning from a turbine to an impeller within a torque converter. The torque converter stator includes an annular stator shell, a plurality of stator blades and an annular stator core. The stator blades are radially extended from the stator shell. The stator blades respectively include a corrugated operating-oil outlet-side edge. The stator core is disposed on the outer peripheries of the stator blades.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- F01D Class
- 2.33 % this patent is cited more than
- 14 Age
